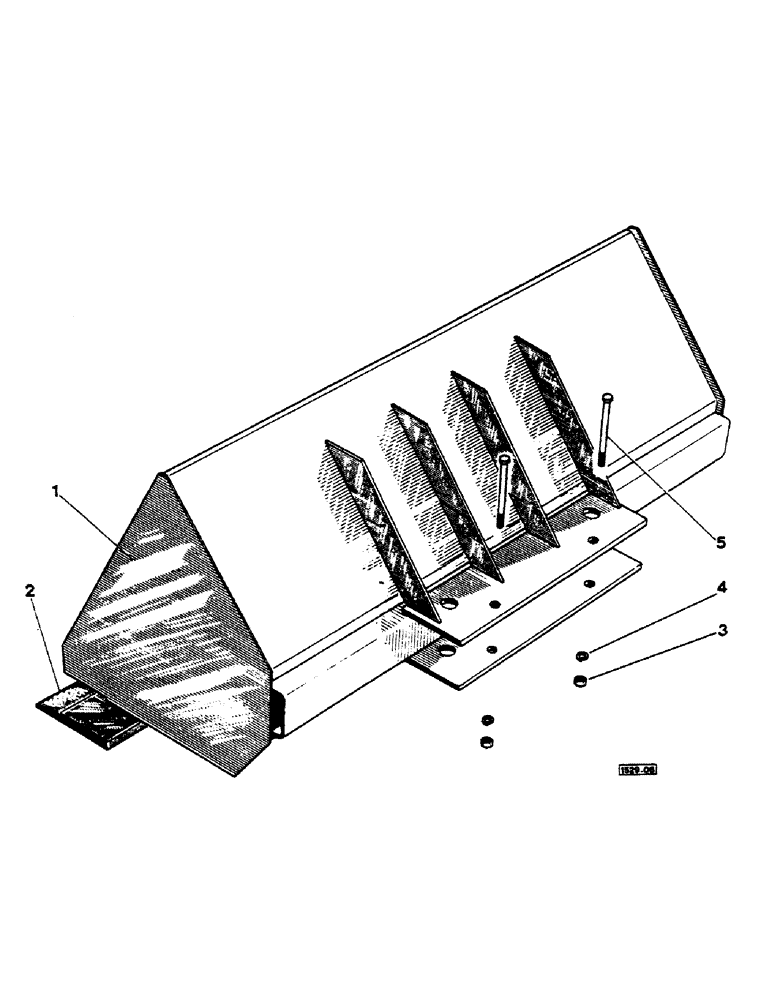

Запчасти Case 1529 (178) - BUCKET, CEMENT, ATLAS HYDRAULIC EXCAVATOR, POULTRY YARD BUCKET (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

BUCKET ASSY., cement, order T88567

1шт.

2

D57106

EDGE

cutting

1шт.

3

25-1010

NUT,5/8"-11, G5

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex 5/8" x 6" NC

2шт.

E30163

EXCAVATOR hydraulic, Atlas catalog, not illustrated

1шт.

E30164

CONNECTOR

2шт.

D54759

HOSE

2шт.

T41332

COUPLING, BREAK AWAY

male

2шт.

T40759

PLUG

CAP protective

2шт.

1

REF

INSTRUCTION

BUCKET poultry yard, order T89041

1шт.

2

D54509

EDGE, CUTTING

1шт.

3

25-1010

NUT,5/8"-11, G5

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.
