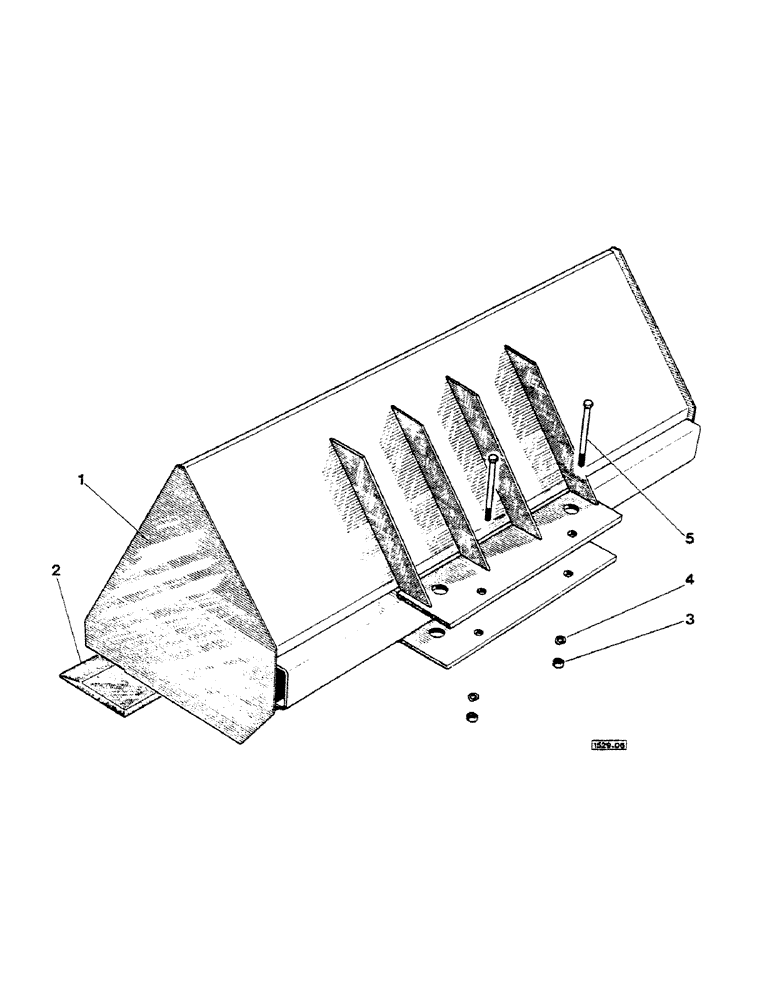

Запчасти Case 1529 (176) - BUCKETS / LIGHT MATERIAL BUCKET (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

BUCKET ASSY., order E16654

1шт.

2

E16635

BLADE

EDGE cutting

1шт.

3

25-1010

NUT,5/8"-11, G5

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex 5/8" x 6" NC

2шт.

1

REF

INSTRUCTION

BUCKET ASSY., order T88287, light material

1шт.

2

D54508

EDGE, CUTTING

light material bucket

1шт.

3

25-1010

NUT,5/8"-11, G5

Light material bucket

2шт.

4

92-10

LOCK WASHER,5/8"

Light material bucket

2шт.

5

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex 5/8" x 6" NC, light material bucket

2шт.
