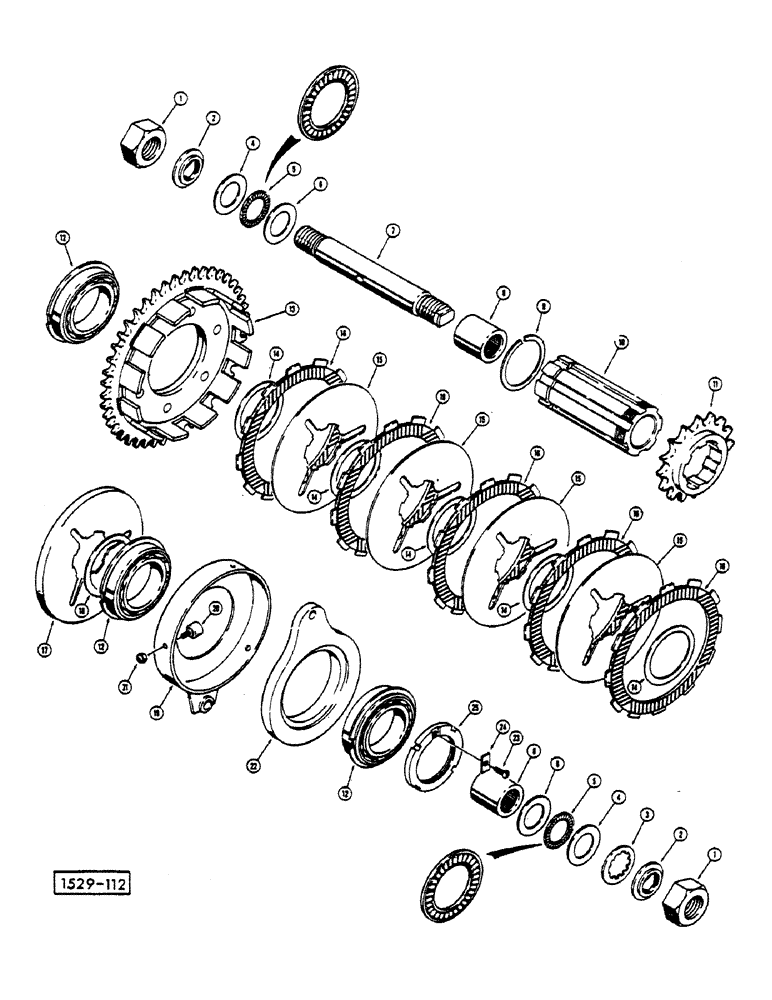

Запчасти Case 1529 (104) - MULTIPLE DISC CLUTCH (14) - MAIN GEARBOX & DRIVE

1

25-1114

NUT,7/8"-14, G5

hex

8шт.

2

E18478

SEAL

WASHER

8шт.

3

T40067

LOCK

RING retainer

4шт.

4

G46081

BEARING WASHER

RACE thrust, thin

8шт.

5

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

8шт.

6

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

RACE thrust, thick

8шт.

7

E18338

SHAFT

clutch, stamped with the letter "S" for identification

4шт.

D55236

CLUTCH

ASSY., Includes: Ref. 8 - 25

4шт.

8

T40012

NEEDLE BEARING

needle

2шт.

9

100-11196

SNAP RING,#196, Ext

Ring, Snap, #196, Ext

1шт.

10

D55215

HUB

1шт.

11

D55374

DRIVE SPROCKET

1шт.

12

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

3шт.

13

D55214

CAP

1шт.

14

D55373

SHIM

5шт.

15

D55213

DISC

separator

4шт.

16

D55212

DISC

friction

5шт.

17

D55211

PLATE

with yellow painted dot identification mark

1шт.

18

D55210

BUSHING

SPACER

1шт.

19

D55209

CAM

1шт.

20

D55208

ROLLER BEARING,0.191" ID x 0.50" OD x 3"

BEARING

3шт.

21

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

3шт.

22

D55531

PLATE

1шт.

23

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

1шт.

24

D55205

KEY

1шт.

25

D55206

NUT

1шт.
