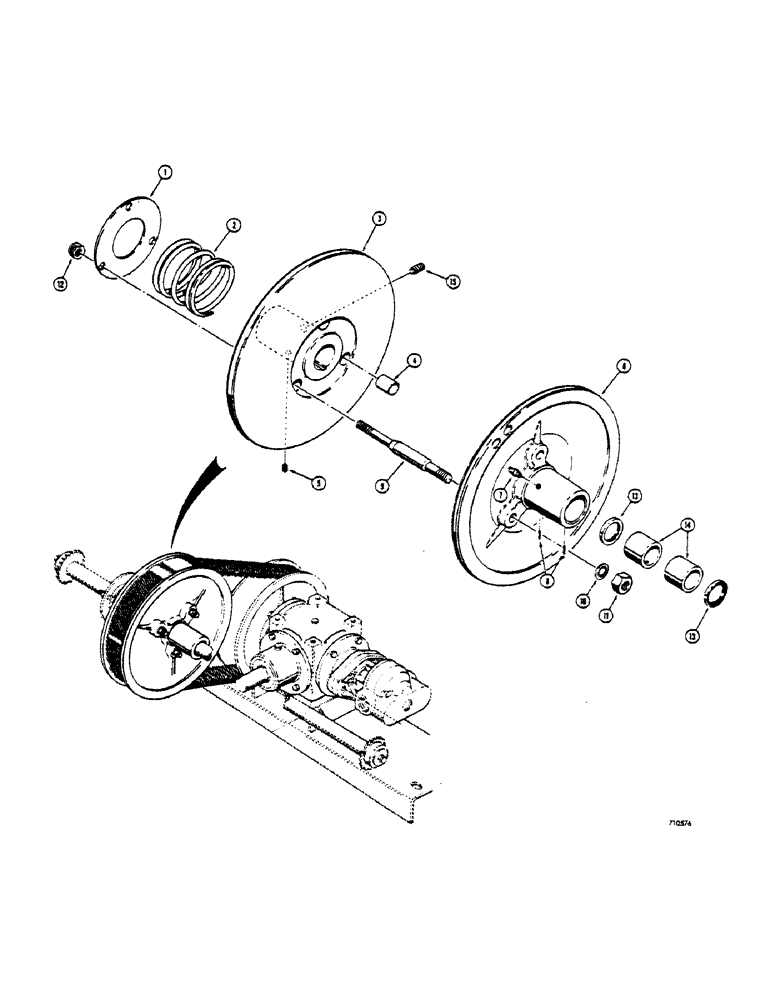

Запчасти Case 1529 (098) - VARIABLE SPEED DRIVEN PULLEY (14) - MAIN GEARBOX & DRIVE

D57519

PULLEY

ASSY., variable speed driven

1шт.

1

T40101

PLATE

spring

1шт.

2

D57530

SPRING

SPARE PART

1шт.

3

NSS

NOT SOLD SEPARAT

SHEAVE sliding

1шт.

4

D53680

BUSHING

3шт.

5

178-856

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

5/16" x 3/8"

1шт.

6

NSS

NOT SOLD SEPARAT

SHEAVE fixed

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

138-51

LOCK PIN,1/8" x 3/8", Slotted

2шт.

9

T40097

STUD

3шт.

10

193-32

LOCK WASHER,Int Tooth, 1/2"

3шт.

11

25-108

NUT,1/2"-13, G5

Hex

3шт.

12

131-6

LOCK NUT,3/8"-16, GC

lock

3шт.

13

A27604

OIL SEAL

2шт.

14

T40099

BUSHING

2шт.

15

178-857

SET SCREW,Hex Soc, 1/2"-13 x 5/8"

set

1шт.
