Запчасти Case 1529 (006) - HUB AND SPINDLE (14) - MAIN GEARBOX & DRIVE

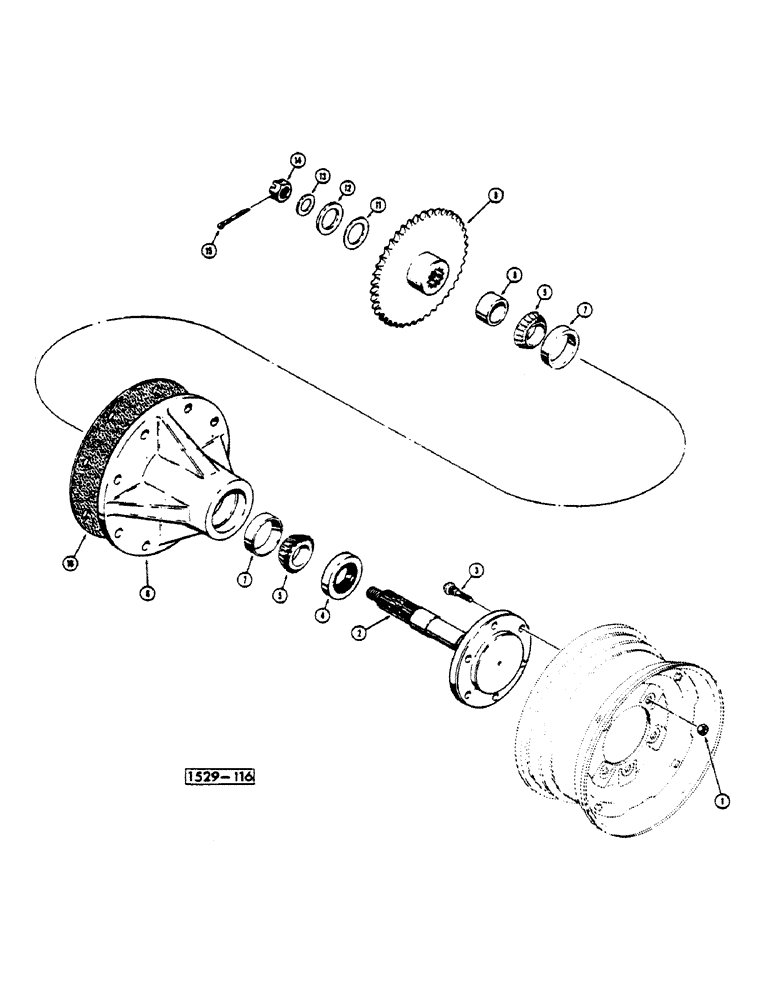

Схема запчастей Case 1529 - (006) - HUB AND SPINDLE (14) - MAIN GEARBOX & DRIVE
5
11
9
7
3
15
7
9
5
2
12
4
8
13
1
16
14

Артикул

Название

Примечание

Количество

1

F23214

WHEEL NUT

24шт.

D53761

SHAFT ASSY.

SPINDLE

4шт.

2

NSS

NOT SOLD SEPARAT

SPINDLE

1шт.

3

T40045

WHEEL BOLT

6шт.

4

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

oil

4шт.

5

D53766

TAPERED BEARING,1.7812" ID x 0.78"

cone

8шт.

D53763

HUB

ASSY.

4шт.

6

NSS

NOT SOLD SEPARAT

HUB

1шт.

7

D53762

BEARING CUP,2.892" OD x 0.62"

bearing

2шт.

8

T40049

BUSHING

SPACER front spindle, for chain #60

2шт.

T40050

BUSHING

SPACER rear spindle, for chain #60

2шт.

D53784

BUSHING

SPACER, for chain #80

4шт.

9

T40051

GEAR

SPROCKET driven, for chain #60

4шт.

D53024

DRIVE SPROCKET

front spindle, for chain #80

2шт.

D53025

DRIVE SPROCKET

rear spindle, for chain #80

2шт.

11

T40257

WASHER

1шт.

12

T40258

WASHER

1шт.

13

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

4шт.

14

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

4шт.

15

132-52

COTTER PIN,1/8" x 1 1/2"

4шт.

16

T42395

GASKET

hub

4шт.

E11524

HEEL

WHEEL

4шт.

T42510

WHEEL and tire, solid rubber, when depleted order (4) T40703

4шт.

E31943

RIM

WHEEL WHEEL

4шт.

T40703

WHEEL and solid tire, 6.50-16 Mitco Duro Cushion

4шт.

Выбрано товаров: 25
