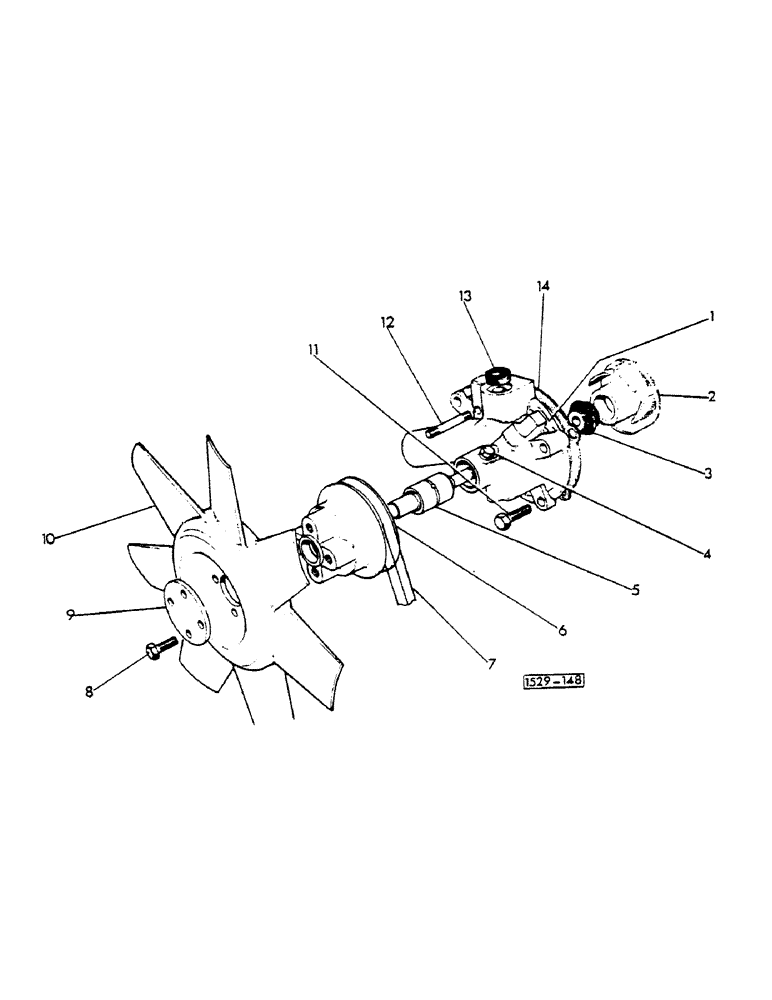

Запчасти Case 1529 (064) - WATER PUMP, FAN (10) - ENGINE

K946947

PUMP

ASSY., water

1шт.

K949547

WATER PUMP

ASSY.

1шт.

1

K925066

BODY

pump

1шт.

1

K949548

BODY

pump

1шт.

2

K907924

IMPELLER

1шт.

2

K949549

IMPELLER

1шт.

3

K68949

SEAL

gland

1шт.

3

K949550

SEAL

gland

1шт.

4

K946260

SCREW

1шт.

K11673

WASHER

1шт.

5

K11651

BEARING

and shaft

1шт.

6

K946690

FAN

PULLEY

1шт.

6

K942475

PULLEY

fan

1шт.

7

K942053

V-BELT

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

4шт.

9

K921361

SHIM

PLATE

1шт.

10

K921852

FAN

pusher

1шт.

E34520

FAN

suction, not illustrated

1шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Not Illustrated

4шт.

92-6

LOCK WASHER,3/8"

Not illustrated

4шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

BOLT hex

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

12

K608140

STUD

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

13

K915330

SEALING RING

SEAL

1шт.

14

K907925

GASKET

1шт.
