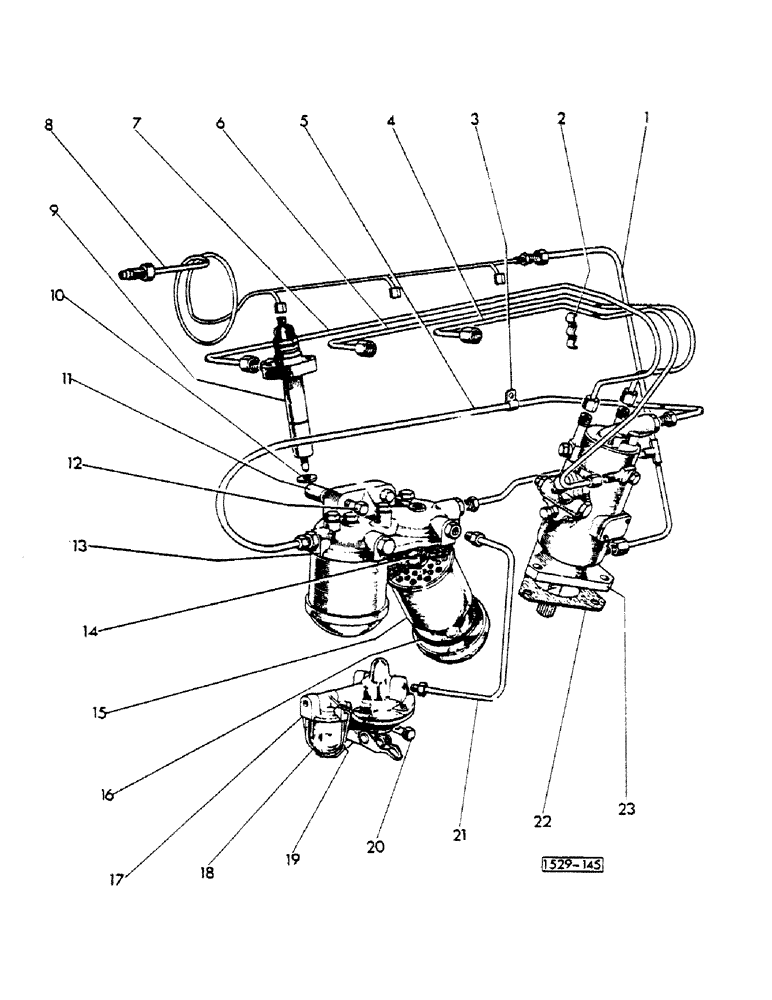

Запчасти Case 1529 (058) - INJECTION PUMP AND FUEL SYSTEM (10) - ENGINE

1

K908173

PIPE

TUBE

1шт.

2

K908168

WASHER

CLAMP

2шт.

K12217

SCREW,0.185" x 5/8"

2шт.

K11109

NUT

2шт.

93-2

WASHER lock

2шт.

3

K621619

CLIP

CLAMP

1шт.

K621646

CLIP

CLAMP

1шт.

4

K908162

PIPE

fuel, injection pump to No. 1 cyl.

2шт.

K900845

NUT

NUT

2шт.

K947203

FERRULE

SLEEVE

2шт.

K900846

FERRULE

SLEEVE

2шт.

5

K908171

PIPE,0.25" OD

TUBE

1шт.

6

K908164

PIPE

fuel, injection pump to No. 2 cyl.

2шт.

K900845

NUT

NUT

2шт.

K947203

FERRULE

SLEEVE

2шт.

K900846

FERRULE

SLEEVE

2шт.

7

K908166

PIPE

fuel, injection pump to No. 3 cyl.

1шт.

K900845

NUT

NUT

2шт.

K947203

FERRULE

SLEEVE

2шт.

K900846

FERRULE

SLEEVE

2шт.

8

K916306

PIPE

TUBE

1шт.

9

K942175

NOZZLE CAP

ASSY.

3шт.

K904261

NOZZLE CAP

HOLDER, CAV- BKBL 97S5152

1шт.

K942176

NOZZLE CAP

CAV-BDLL 140S6592

1шт.

10

K901092

WASHER

1шт.

11

K627041

BUSHING

SPACER

2шт.

12

13-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

2шт.

92-6

LOCK WASHER,3/8"

2шт.

K11762

COPPER WASHER

2шт.

13

K906708

FILTER

fuel

1шт.

14

K960937

O-RING

2шт.

15

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ASSY.

2шт.

16

K960936

RING

SEAL

2шт.

17

K962264

COVER

CONTAINER

2шт.

18

K962348

SCREW

EVENT plug

1шт.

K626856

WASHER

copper

1шт.

19

K908819

PUMP

1шт.

K911917

DIAPHRAGM

1шт.

K961732

FILTER

GAUGE

1шт.

20

K961733

BOWL

filter

1шт.

K961734

GASKET

1шт.

21

K961735

BRACKET

STIRRUP and screw

1шт.

K902136

GASKET

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex

2шт.

195-21

WASHER,5/16"

plain

2шт.

K14988

WASHER

2шт.

K911928

PUSH ROD,9.51mm OD x 35.99mm L

push

1шт.

23

K908169

PIPE,0.25" OD x 5.594, 1.641" L

TUBE

1шт.

24

K68349

GASKET

1шт.

25

K916784

PUMP

SPARE PART fuel injection

1шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

K19471

WASHER

plain

3шт.
