Запчасти Case 1529 (048) - VALVE MECHANISM AND CAMSHAFT (10) - ENGINE

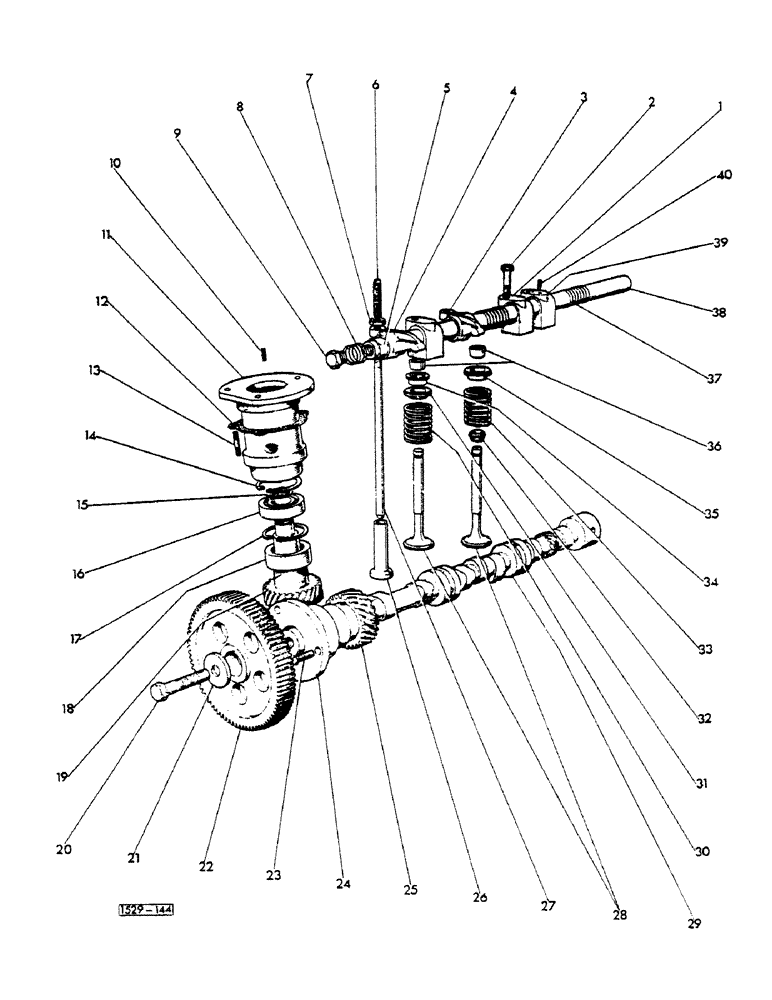

Схема запчастей Case 1529 - (048) - VALVE MECHANISM AND CAMSHAFT (10) - ENGINE
20
30
4
21
10
16
8
23
39
12
25
33
28
11
32
38
6
2
18
13
24
17
31
36
19
1
34
35
22
7
40
9
37
5
29
14
27
15
26
3

Артикул

Название

Примечание

Количество

1

K921431

BRACKET

rocker shaft, No. 1 and 2

2шт.

2

13-742

BOLT,Hex, 7/16" - 14 x 2-5/8", Gr 5

3шт.

3

K961052

ROCKER

arm, RH, with bush

3шт.

4

K961053

ROCKER

arm, LH, with bush

3шт.

5

K11060

BUSHING

valve rocker

1шт.

6

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

6шт.

7

25-146

JAM NUT,Jam, 3/8"-16, G5

6шт.

8

K907919

WASHER

SPRING

2шт.

9

K19590

PLUG

2шт.

10

K624903

SPRING

1шт.

11

K910608

HOUSING

1шт.

K948193

HOUSING

1шт.

12

K907922

GASKET

1шт.

13

K608121

STUD

3шт.

14

K13170

RING, SNAP

RING SNAP

1шт.

15

K11128

CIRCLIP

1шт.

16

K24489

BALL BEARING

BEARING

1шт.

17

K621680

SNAP RING,2.062", Int, #206

2.062", Int, #206

1шт.

18

K620072

BEARING

1шт.

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

1-3/4 in ID

1шт.

19

K912483

GEAR

1шт.

20

K907572

BOLT

hex

1шт.

21

K907571

WASHER

1шт.

22

K907335

PINION

GEAR

1шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

24

K907336

HOUSING

locating

1шт.

25

K909920

DRIVE

GEAR

1шт.

26

K901137

TAPPET

TAPPET

6шт.

27

K902035

ROD

push

6шт.

28

K928622

STD INLET VALVE

STD ENGINE INLET VALVE standard

6шт.

K928986

VALVE

exhaust (.010" oversize)

6шт.

K928987

VALVE

exhaust (.020" oversize)

6шт.

29

K914527

CAMSHAFT

1шт.

30

K921436

VALVE SPRING

3шт.

31

K928624

COLLAR

outer

3шт.

32

K940481

OIL SEAL

3шт.

33

K921435

SPRING

3шт.

34

K928623

COLLAR

inner

3шт.

35

K921437

COLLAR

BUSHING

3шт.

36

K943439

LOCKING DEVICE

RETAINER valve spring

6шт.

37

K11017

SPRING

2шт.

38

K907920

TUBE

SHAFT

1шт.

39

K921432

BRACKET

rear

1шт.

40

K606051

SET SCREW,5/16" - 18 x 1/2"

1шт.

Выбрано товаров: 45
