Запчасти Case 1529 (044) - PISTONS AND CRANKSHAFT (10) - ENGINE

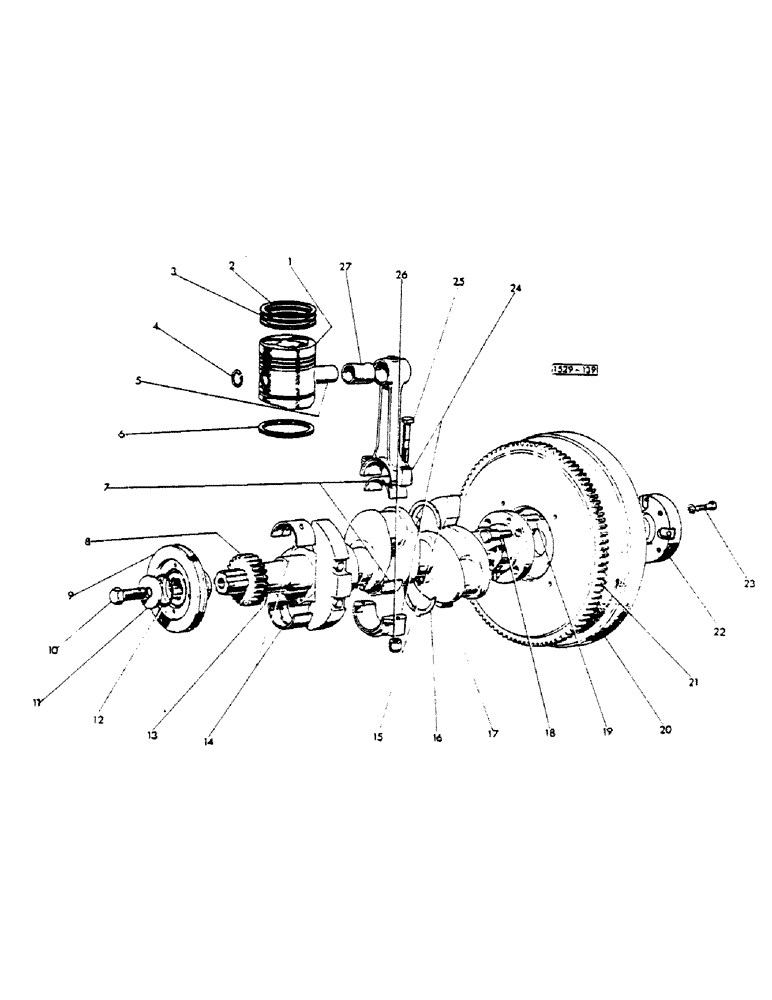

Схема запчастей Case 1529 - (044) - PISTONS AND CRANKSHAFT (10) - ENGINE
10
27
16
12
2
1
19
3
5
21
23
24
6
9
4
25
15
17
20
8
7
14
22
18
11
13
26

Артикул

Название

Примечание

Количество

1

K943883

PISTON

ASSY., standard

3шт.

2

K943881

RING, PISTON

compression

1шт.

Part of ring kit P/N K943895

1шт.

3

K943882

RING, PISTON

compression

2шт.

Part of ring kit P/N K943895

1шт.

4

K34501

RING, SNAP

RING SNAP retaining

2шт.

5

K904370

PIN

1шт.

6

K915242

SCRAPER

RING fire

1шт.

Part of ring kit P/N K943895

1шт.

1

K943890

PISTON

ASSY. (.020" oversize)

3шт.

2

K943885

RING, PISTON

compression

1шт.

Part of ring kit P/N K943896

1шт.

3

K943886

RING, PISTON

compression

2шт.

Part of ring kit P/N K943896

1шт.

4

K34501

RING, SNAP

RING SNAP retaining

2шт.

5

K904370

PIN

1шт.

6

K917808

SCRAPER

SPARE PART RING fire

1шт.

Part of ring kit P/N K943896

1шт.

1

K943891

PISTON

ASSY. (.040" oversize)

3шт.

2

K943888

RING, PISTON

compression

1шт.

Part of ring kit P/N K943897

1шт.

3

K943889

RING, PISTON

compression

2шт.

Part of ring kit P/N K943897

1шт.

4

K34501

RING, SNAP

RING SNAP retaining

2шт.

5

K904370

PIN

1шт.

Part of ring kit P/N K943897

1шт.

6

K917813

SCRAPER

RING fire

1шт.

7

K911904

HALF-BEARING, CRANKS

LINER

6шт.

Part of standard liner kit P/N K962935

1шт.

8

K907329

GEAR

1шт.

9

K914836

PULLEY

1шт.

10

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

1шт.

11

K907328

WASHER

1шт.

12

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

O

1шт.

13

K961726

CRANKSHAFT

ASSY.

1шт.

14

K928540

HALF-BEARING, CRANKS

8шт.

Part of standard liner kit P/N K962935

1шт.

15

K928543

SET

WASHER thrust, lower, standard

2шт.

K928561

WASHER

thrust, lower (.005" oversize)

2шт.

K928563

RING

WASHER thrust, lower (.020" oversize)

2шт.

16

K928542

SET

WASHER thrust, upper, standard

2шт.

K928560

THRUST WASHER

WASHER thrust, upper (.005" oversize)

2шт.

K928562

WASHER, THRUST

upper (.020" oversize)

2шт.

17

K915423

BOLT

hex

4шт.

K626372

WASHER

lock

4шт.

18

K946009

BOLT

SCREW

4шт.

129-524

NUT,3/8"-24, G8

4шт.

19

K10629

PIN

DOWEL

1шт.

20

K946046

FLYWHEEL

ASSY.

1шт.

21

K36134

GEAR

1шт.

22

K946008

ADAPTER

1шт.

23

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

BOLT hex

4шт.

K626412

WASHER

PLATE bolt locking

4шт.

24

K905197

ROD, CONNECTING

ASSY.

3шт.

25

K905198

BOLT

2шт.

26

K623151

LOCK NUT

2шт.

27

K31669

BEARING

1шт.

K943895

RING

KIT standard, Includes: Ref. 2, 3 and 6

1шт.

K943896

RING

KIT (.020 oversize) Includes: Ref. 2, 3 and 6

1шт.

K943897

RING

KIT (.040" oversize) Includes: Ref. 2, 3, and 6

1шт.

K962935

BUSHING

KIT liner, standard, Includes: Ref. 7 and 14

1шт.

K962936

BEARING

KIT liner (.010" undersize)

1шт.

K928557

BEARING LINER

crankshaft

8шт.

K912638

HALF-BEARING, CRANKS

LINER rod

6шт.

K962937

CRANKSHAFT BEARING

KIT liner (.020" undersize)

1шт.

K928558

HALF-BEARING, CRANKS

crankshaft

8шт.

K912639

HALF-BEARING, CRANKS

LINER rod

6шт.

K962938

BEARING SET

KIT liner (.030" undersize)

8шт.

K928559

HALF-BEARING, CRANKS

crankshaft

8шт.

K913941

HALF-BEARING, CRANKS

rod

6шт.

Выбрано товаров: 70
