Запчасти Case 1529 (038) - CYLINDER BLOCK (10) - ENGINE

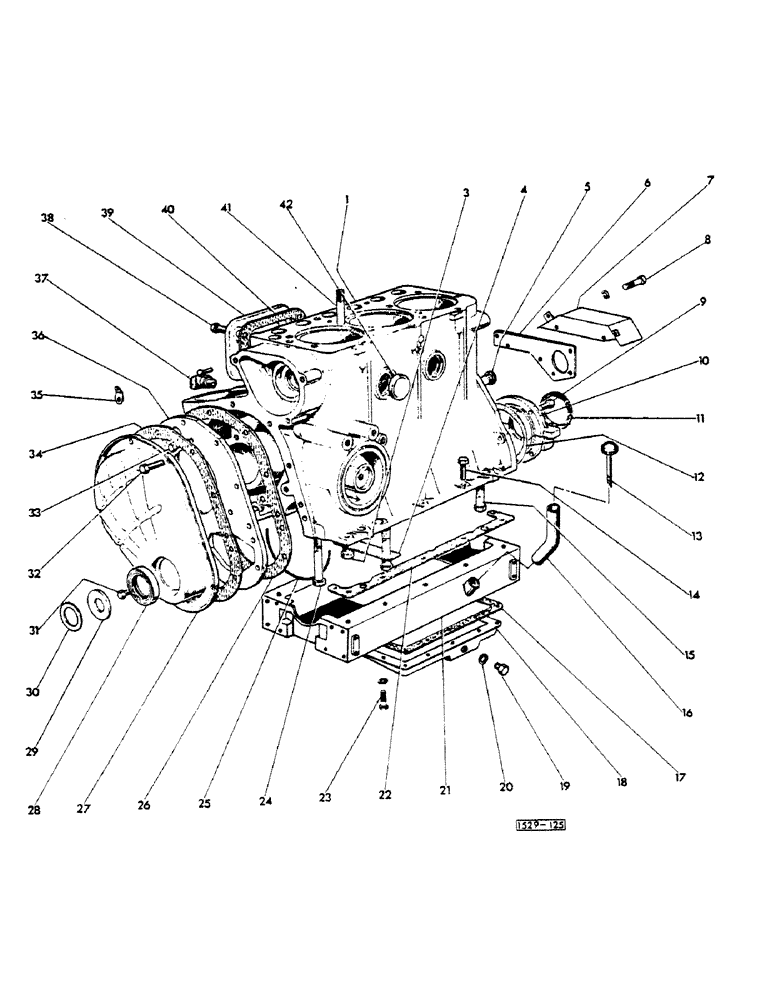

Схема запчастей Case 1529 - (038) - CYLINDER BLOCK (10) - ENGINE
18
39
6
1
40
4
41
12
42
8
20
35
31
5
29
27
19
15
3
25
23
34
17
7
13
21
24
30
9
11
32
22
16
10
14
38
33
36
26
37
28

Артикул

Название

Примечание

Количество

1

K961965

CYLINDER

BLOCK, with bearings caps

1шт.

1

K963935

BRACKET

BLOCK cylinder, with bearings caps

1шт.

3

K909564

STEP BOLT

hex

8шт.

K929560

BEARING WASHER

plain

8шт.

4

K626376

SHEET

WASHER tab

4шт.

K907322

RING

dowel

8шт.

5

K609440

PLUG

1шт.

K15512

WASHER

1шт.

41-33

PLUG,Exp, 2 1/16"

1шт.

6

K946016

SUPPORT

BRACKET starter

1шт.

7

K948359

BRACKET

SHIELD flywheel

1шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

4шт.

9

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4-5шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

K15489

WASHER

if used

4шт.

10

K962319

BEARING

RETAINER oil, Serial Range: -80369

1шт.

10

K964844

HOUSING

RETAINER oil, Start Serial: 80370

1шт.

10

K964994

RETAINER

oil, if used

1шт.

11

K921611

OIL SEAL

RETAINER packing oil

2шт.

12

K914404

GASKET,0.18mm Thk

, Serial Range: -80369

2шт.

12

K950938

GASKET,0.18mm Thk

, Start Serial: 80370

2шт.

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

13

K947098

DIPSTICK

1шт.

13

K949713

CAP

1шт.

13

K950103

DIPSTICK

1шт.

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

14

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

9шт.

192-21

LOCK WASHER,3/8"

9шт.

15

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

1шт.

192-21

LOCK WASHER,3/8"

3шт.

16

K946836

PIPE

TUBE filler

1шт.

17

K907585

GASKET

1шт.

18

K907339

COVER

housing

1шт.

19

K623825

PLUG

1шт.

20

K626793

WASHER

GASKET

1шт.

21

K907580

SUMP

PAN oil

1шт.

22

K907583

GASKET

LH

1шт.

K907582

GASKET

RH

1шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

16шт.

24

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

K914504

BOLT,Spcl, 3/8" - 16 - 7/16" x 8 1/8"

SCREW

1шт.

192-21

LOCK WASHER,3/8"

2шт.

K621834

PIN

DOWEL

2шт.

25

K907584

SEAL

O-RING

1шт.

26

K907326

GASKET

1шт.

27

K907225

COVER

1шт.

28

K623448

SEAL

oil

1шт.

29

K914428

FENDER

GUARD

1шт.

30

K910610

BUSHING

SPACER

1шт.

31

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

32

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

34

K907327

GASKET

1шт.

35

K913184

ANCHOR

LUG

1шт.

36

K907297

CARRIER

PLATE

1шт.

37

K622060

PLUG, DRAIN

TAP

1шт.

K922093

ADAPTER

1шт.

K30421

SEALING WASHER

sealing

1шт.

38

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

K14988

WASHER

copper

8шт.

39

K907332

TAPPET

COVER

2шт.

40

K907333

GASKET

2шт.

41

K906538

STUD

6шт.

42

K623797

PLUG

4шт.

K961892

GASKET KIT

engine

1шт.

K964877

ENGINE GASKET KIT

engine

1шт.

K961929

GASKET KIT

decarbonising

1шт.

K964876

KIT, ENGINE TOP GASK

decarbonising

1шт.

Выбрано товаров: 76
