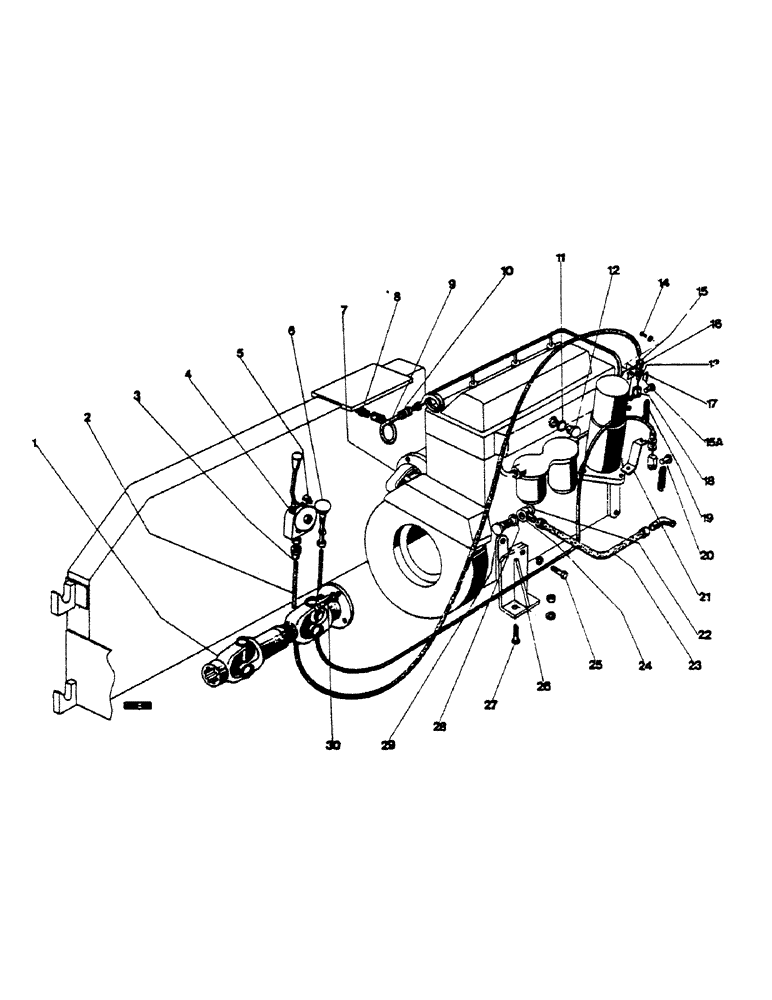

Запчасти Case 1529 (030) - ENGINE (10) - ENGINE

1

D53935

JOINT

universal

1шт.

2

E32782

PROTECTOR

SHEATH

1шт.

3

E32781

CABLE

SPARE PART throttle

1шт.

4

E18440

LEVER

hand throttle

1шт.

5

E16664

PEDAL LOCK PLATE

CLAMP wire

1шт.

6

E32940

SCREW

KNOB fuel stop control

1шт.

E10168

CLAMP, not illustrated

1шт.

7

K913007

X

STARTER

1шт.

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

192-21

LOCK WASHER,3/8"

3шт.

8

217-60

REDUCER,1/4" - 18 NPT x 1/8" - 27 NPT

NIPPLE

1шт.

9

E32370

HOSE

return

1шт.

10

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

2шт.

11

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

SEAL

1шт.

12

K619528

PLUG

1шт.

13

K612700

SET SCREW,1/4" - 28 x 3/8"

2шт.

92-4

LOCK WASHER,1/4"

2шт.

14

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

BOLT

1шт.

195-101

WASHER,3/16"

plain

1шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

129-7

NUT,Hex, #10 - 24

1шт.

15

K918844

BRACKET

SUPPORT

1шт.

15a

E33419

LUG

1шт.

16

E18439

STOP

sheath

1шт.

17

132-5

COTTER PIN,1/16" x 1/2"

1шт.

18

E18430

YOKE

UNIVERSAL JOINT YOKE

1шт.

19

K624938

SPRING

2шт.

20

K913180

PIN

2шт.

21

E33418

LUG

1шт.

22

E30139

WASHER

SEAL

1шт.

23

E17984

HOSE ASSY.

supply

1шт.

24

E17986

FITTING

1шт.

25

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW

4шт.

92-10

LOCK WASHER,5/8"

4шт.

26

K946021

MOUNTING PARTS

SUPPORT, LH

2шт.

K946022

MOUNTING PARTS

SUPPORT, RH

2шт.

27

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

95-10

WASHER,5/8"

plain

4шт.

230-4117

LOCK NUT,7/16"-14, GA

lock

4шт.

28

E30140

WASHER

SEAL

1шт.

29

E33091

BOLT

fitting

1шт.

30

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

BOLT hex

4шт.

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

plain

4шт.
