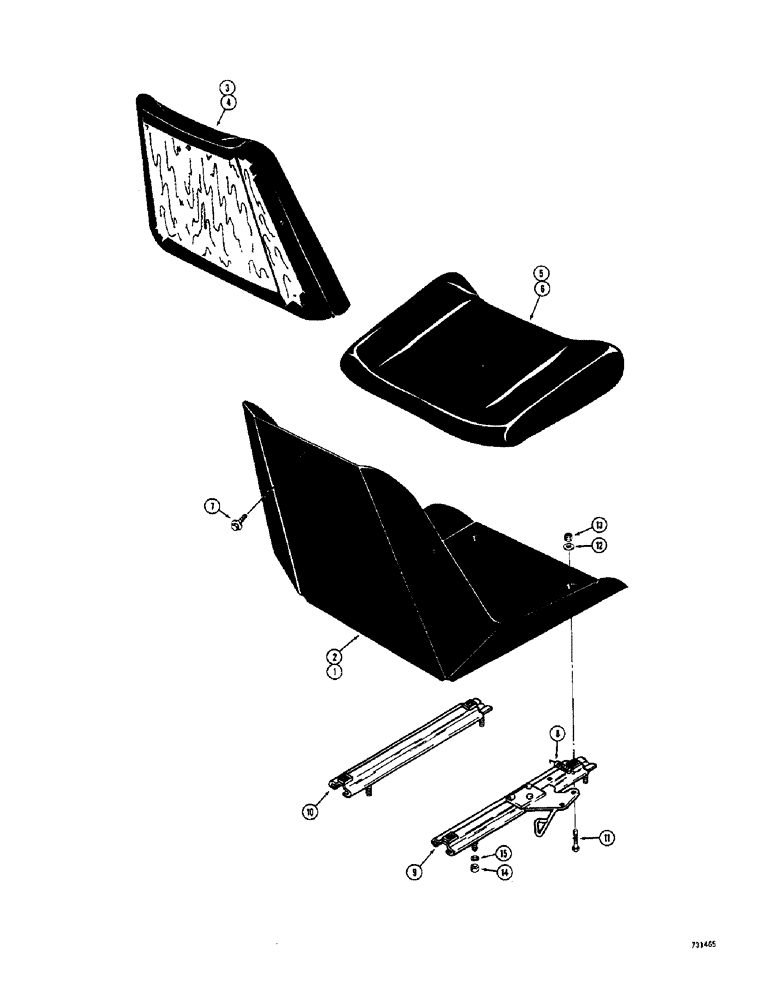

Запчасти Case 1500-SERIES (106) - SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

T40239

SEAT

complete, R.H. slide adjuster (Use D56576 for service), Incl. Ref 1-15

1шт.

D56576

SEAT

complete (L.H. slide adjuster), Incl. Ref 1-15

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - D56576 seat

1шт.

2

NSS

NOT SOLD SEPARAT

SHELL - T40239 seat

1шт.

3

D53583

CUSHION

back, D56576 seat

1шт.

4

D53583

CUSHION

back, T40239 seat

1шт.

5

D53584

CUSHION

bottom, D56576 seat

1шт.

6

D53584

CUSHION

bottom, T40239 seat

1шт.

7

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

HHMS - with internal tooth lockwasher (1/4" - 20 NC x 3/4") zinc plated

5шт.

8

D53344

SPRING

return, adjuster (1/2" long) If used

1шт.

8

D55954

SPRING

return, adjuster (1-11/16" long) If used

1шт.

9

D53585

CUSHION

SLIDE - seat, adjusting

1шт.

10

D53586

SLIDE

seat, non-adjusting

1шт.

11

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

flat (5/16")

4шт.

13

131-31

LOCK NUT,5/16"-24, G8

NUT - hex., lock (5/16" - 24 NF)

4шт.

14

25-115

NUT,5/16"-24, G5

Hex, If used

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.
