Запчасти Case 1500-SERIES (096) - LOADER BUCKETS, FERTILIZER BUCKETS (82) - FRONT LOADER & BUCKET

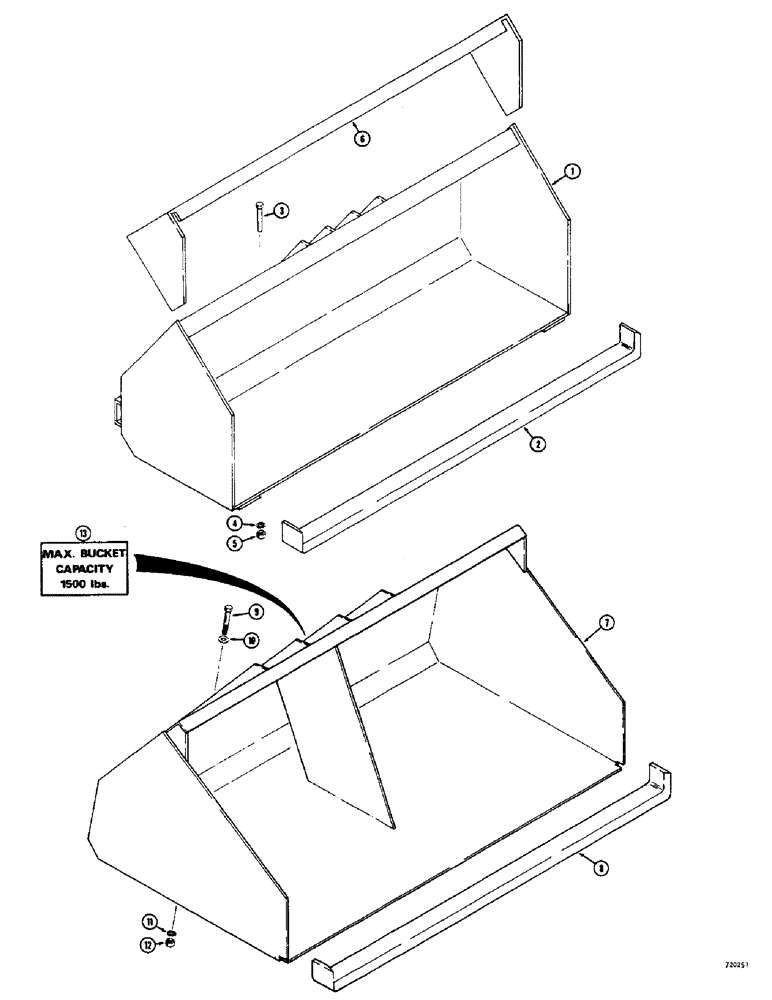

Схема запчастей Case 1500-SERIES - (096) - LOADER BUCKETS, FERTILIZER BUCKETS (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

T88277

SPARE PART BUCKET - fertilizer, 20.1 cu. ft. (Mach. item) 60" wide, Incl. Ref 2-5

1шт.

1

D57122

SPARE PART BUCKET - fertilizer, 20.1 cu. ft. (Mach. item) 60" wide, Incl. Ref 2-5

1шт.

1

D58422

BUCKET - fertilizer, 20.1 cu. ft. (Mach. item) 60" wide, Incl. Ref 2-5

1шт.

2

D54509

EDGE, CUTTING

T88277, D57122 and D58422 bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89062

SPILL GUARD - for 60" bucket (Mach. item)

1шт.

1

T88573

BUCKET - heavy duty fertilizer, 16.5 cu. ft. (Mach. item) 60" wide, use D58422 bucket for service, Incl. Ref 2-5

1шт.

2

D54509

EDGE, CUTTING

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89062

SPILL GUARD - for 60" bucket (Mach. item)

1шт.

7

D55109

BUCKET - fertilizer, 1 cu. yd. (Mach. item) 60" wide, Incl. Ref 8-13

1шт.

7

D55359

BUCKET - fertilizer, 1 cu. yd. (Mach. item - special paint) 60" wide, Incl. Ref 8-13

1шт.

8

D54509

EDGE, CUTTING

1шт.

9

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

10

195-541

WASHER,5/8", SAE

(Zinc plated)

4шт.

11

192-25

LOCK WASHER,5/8"

2шт.

12

129-107

NUT,5/8"-11, G5

2шт.

13

321-2178

DECAL - 1 cu. yd.

1шт.

Выбрано товаров: 22
