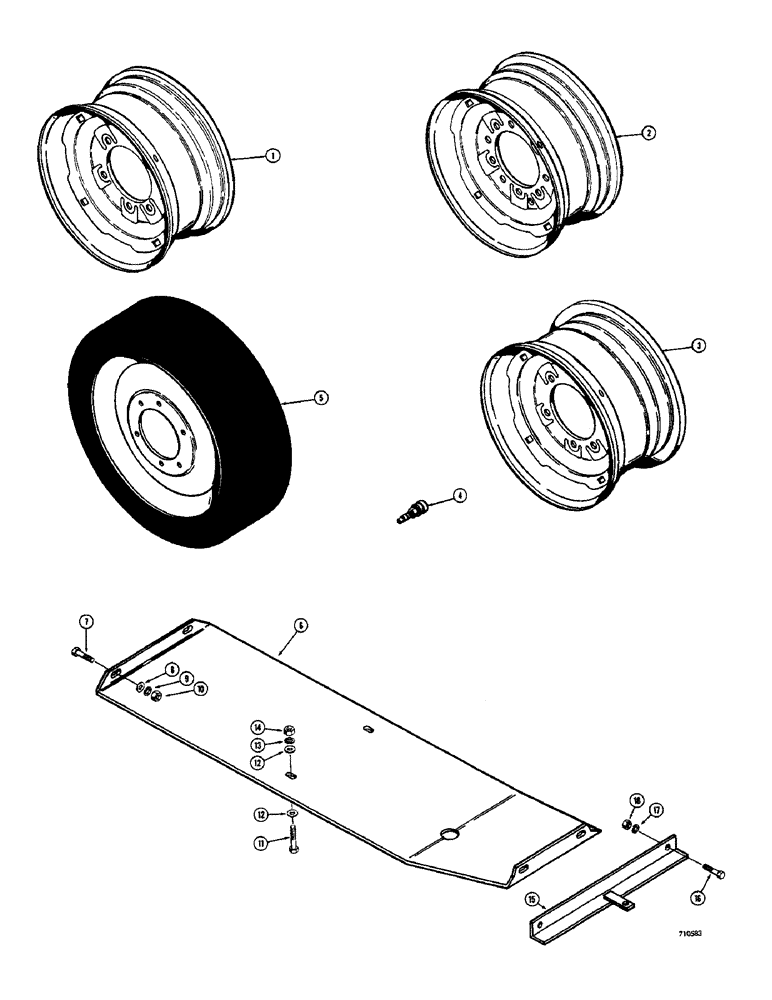

Запчасти Case 1500-SERIES (056) - WHEELS (44) - WHEELS

1

T40841

SPARE PART for 11L x 15" tire

4шт.

2

T40663

WHEEL

for 7:00 x 15" tire

4шт.

3

T40839

WHEEL

for 10 x 16.5 tire

4шт.

4

T40840

STEM

wheel

4шт.

5

T42510

WHEEL - 6:50 x 16, solid rubber

4шт.

T89171

BELLY PAN - model 1526 (Machinery item), drawbar, Incl. Ref 6-14

1шт.

T89169

BELLY PAN - model 1530 (Machinery item), drawbar, Incl. Ref 6-14

1шт.

T89170

SPARE PART model 1537 (Machinery item), drawbar, Incl. Ref 6-14

1шт.

6

NSS

NOT SOLD SEPARAT

PAN - belly, drawbar

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Belly pan and drawbar

4шт.

8

95-8

WASHER,1/2"

Belly pan and drawbar

6шт.

9

92-8

LOCK WASHER,1/2"

Belly pan and drawbar

4шт.

10

25-108

NUT,1/2"-13, G5

Hex, Belly pan and drawbar

4шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Belly pan and drawbar

2шт.

12

95-6

WASHER,3/8"

Belly pan and drawbar

4шт.

13

92-6

LOCK WASHER,3/8"

belly pan and drawbar

2шт.

14

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC), belly pan and drawbar

2шт.

T88584

DRAWBAR - all models (Machinery item), belly pan, Incl. Ref 15-18

1шт.

15

NSS

NOT SOLD SEPARAT

DRAWBAR - all models (Order T88584 drawbar for service), belly pan

1шт.

16

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Belly pan and drawbar

2шт.

17

92-8

LOCK WASHER,1/2"

Belly pan and drawbar

2шт.

18

25-108

NUT,1/2"-13, G5

Hex, Belly pan and drawbar

2шт.
