Запчасти Case 1500-SERIES (156) - D54906 CASTER WHEEL CYLINDER, 2-1/2" I.D. CYLINDER WITH 8" STROKE & 1" O.D. ROD (35) - HYDRAULIC SYSTEMS

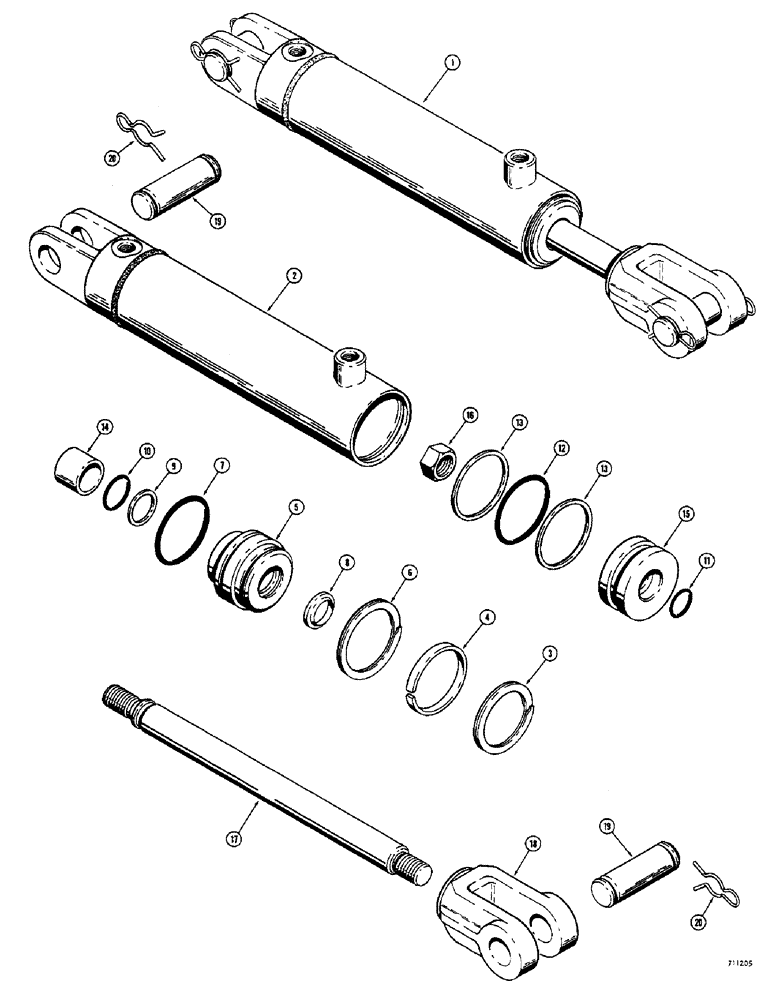

Схема запчастей Case 1500-SERIES - (156) - D54906 CASTER WHEEL CYLINDER, 2-1/2" I.D. CYLINDER WITH 8" STROKE & 1" O.D. ROD (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

D54906

CYLINDER

caster wheel, Incl. Ref 2-20

1шт.

2

D54908

SPARE PART cylinder

1шт.

3

D54917

SPARE PART gland retaining #225, 2.153", Ext Spiral

1шт.

4

D54915

SPARE PART RING - backup, gland seal

1шт.

5

D55813

SPARE PART GLAND - cylinder

1шт.

D54912

KIT

cylinder packing, Incl. Ref 6-13

1шт.

6

NSS

NOT SOLD SEPARAT

RING - locking

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, gland (Large)

1шт.

8

D54918

SPARE PART rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, gland seal

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, gland (Small)

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston rod

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston seal

2шт.

14

T42254

BUSHING

gland

1шт.

15

D54909

SPARE PART packing

1шт.

16

231-46112

LOCK NUT,3/4"-16, GB

jam (3/4" - 16 NC)

1шт.

17

D54911

SPARE PART piston (1" O.D.)

1шт.

18

D54910

SPARE PART rod

1шт.

19

D54919

SPARE PART

2шт.

20

D54920

SPARE PART PIN - hair

4шт.

Выбрано товаров: 21
