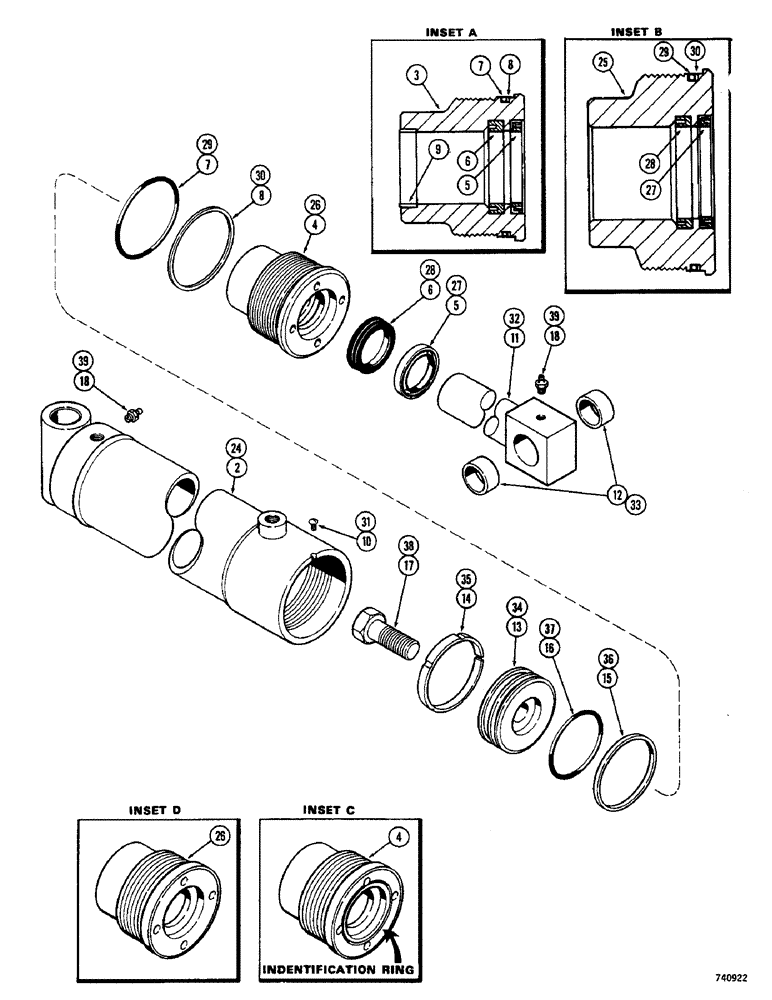

Запчасти Case 1500-SERIES (150) - G33744 SCARIFIER CYLINDER, GLAND HAS IDENTIFICATION RING (35) - HYDRAULIC SYSTEMS

1

G33744

CYLINDER BLOCK

scarifier, 3" dia. x 13" stroke (Not shown), Incl. Ref 2-18

1шт.

2

G32271

TUBE,19.56" L

cylinder body

1шт.

3

G34328

GLAND

see inset A, Incl. Ref 4-9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - see inset C

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"); Part of Seal Repair Kit P/N G32269

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16"); Part of Seal Repair Kit P/N G32269

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland (3 x 3-1/4 x 1/8"); Part of Seal Repair Kit P/N G32269

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

gland "O" ring back-up; Part of Seal Repair Kit P/N G32269

1шт.

9

D27706

WIPER SEAL

WIPER - piston rod, inner (If used)

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

self-tapping (#8 - 32 NC x 1/4")

1шт.

11

G33753

ROD

1-1/2" dia., Incl. Ref 12

1шт.

12

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

piston pin

2шт.

13

G33747

PISTON

packing

1шт.

14

G32033

RING

wear, piston; Part of Seal Repair Kit P/N G32269

1шт.

15

G32034

RING

seal, piston (2-7/8 x 3 x 5/32" teflon); Part of Seal Repair Kit P/N G32269

1шт.

16

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

piston (2-1/2 x 2-3/4 x 1/8"); Part of Seal Repair Kit P/N G32269

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

G32269

KIT

seal repair, Incl. Ref 5, 6, 7, 8, 14, 15 and 16

1шт.

19

RESERVED

1шт.

20

RESERVED

1шт.

21

RESERVED

1шт.

22

RESERVED

1шт.

23

G32270

CYLINDER

scarifier, 3" dia. x 13" stroke (Not shown), G32270, without gland identification ring, Incl. Ref 24-30

1шт.

24

G32271

TUBE,19.56" L

cylinder body, G32270 scarifier, without gland identification ring

1шт.

25

G32797

GLAND

see inset B, G32270 scarifier cylinder, without identification ring, Incl. Ref 26-30

1шт.

26

NSS

NOT SOLD SEPARAT

GLAND - see inset D, G32270 scarifier cylinder, without identification ring

1шт.

27

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"), G32270 scarifier cylinder, without gland identification ring; Part of Seal Repair Kit P/N G32269

1шт.

28

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16"), G32270 scarifier cylinder, without gland identification ring; Part of Seal Repair Kit P/N G32269

1шт.

29

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8", G32270 scarifier cylinder, without identification; Part of Seal Repair Kit P/N G32269

1шт.

30

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

back-up, G32270 scarifier cylinder, without identification; Part of Seal Repair Kit P/N G32269

1шт.

31

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

self-tapping (#8 - 32 NC x 1/4"), G32270 scarifier cylinder, without gland identification ring

1шт.

32

G32057

ROD

1-1/2" dia., G32270 scarifier cylinder, without gland identification ring, Incl. Ref 33

1шт.

33

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

piston rod, G32270 scarifier cylinder, without gland identification ring

2шт.

34

G32032

PISTON

packing, G32270 scarifier cylinder, without gland identification ring

1шт.

35

G32033

RING

wear, piston, G32270 scarifier cylinder, without gland identification; Part of Seal Repair Kit P/N G32269

1шт.

36

G32034

RING

piston (2-7/8 x 3 x 5/32" teflon), G32270 scarifier cylinder, without gland identification; Part of Seal Repair Kit P/N G32269

1шт.

37

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

piston (2-1/2 x 2-3/4 x 1/8"), G32270 scarifier cylinder, without gland identification; Part of Seal Repair Kit P/N G32269

1шт.

38

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

G32270 Scarifier cylinder, without gland identification ring

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

G32270 scarifier cylinder, without gland identification ring

2шт.

G32269

KIT

seal repair, Incl. Ref 27, 28, 29, 30, 35, 36 and 37, G32270 scarifier cylinder, without gland identification ring

1шт.
