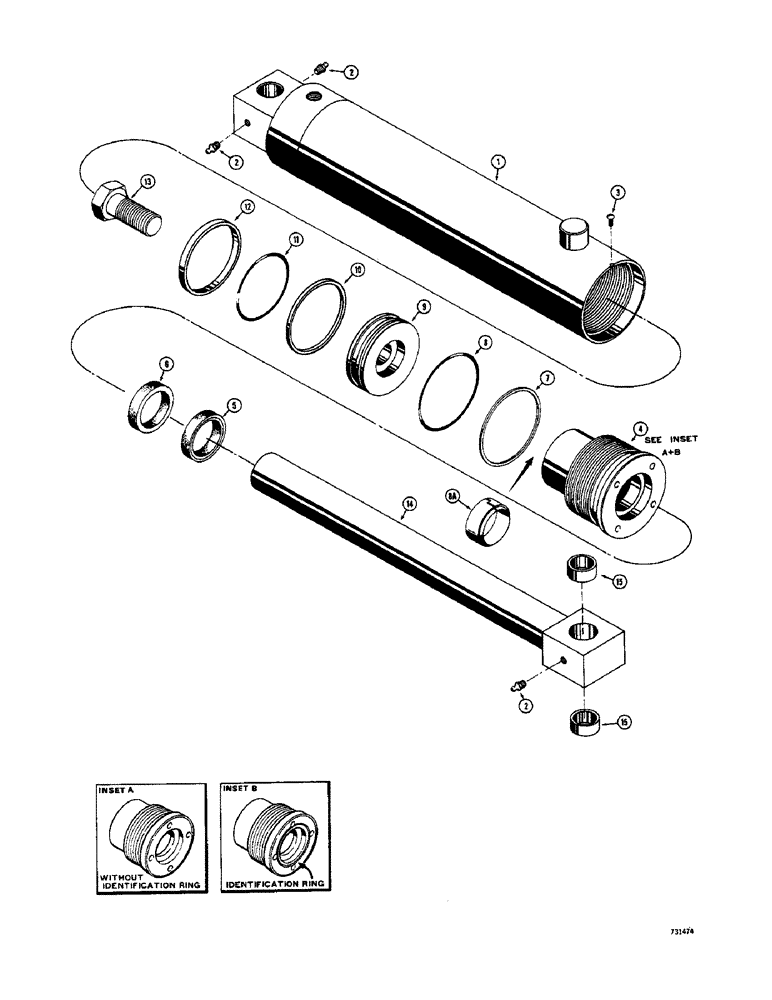

Запчасти Case 1500-SERIES (142) - G32030 BUCKET CYLINDER, WITHOUT GLAND IDENTIFICATION RING SERVICE REPLACEMENT (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
G32030
CYLINDER
bucket (3" I.D. x 14-1/4" stroke) When stock is exhausted, order G33887 for service), Incl. Ref 1-15
2шт.
1
G32051
SPARE PART cylinder 21.44" L
1шт.
2
219-1
LUBE NIPPLE,1/8" - 27 NPTF
3шт.
3
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
self-tapping (#8 - 32 NC x 1/4")
1шт.
G32797
GLAND
complete, Incl. Ref 4-8
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - packing (See inset A)
1шт.
5
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - rod, outer; Part of Cylinder Packing Kit P/N G32269
1шт.
6
D36969
CUP
SEAL - rod; Part of Cylinder Packing Kit P/N G32269
1шт.
7
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
backup, gland seal; Part of Cylinder Packing Kit P/N G32269
1шт.
8
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
gland; Part of Cylinder Packing Kit P/N G32269
1шт.
9
G32032
PISTON
cylinder
1шт.
10
G32034
RING
backup, piston seal; Part of Cylinder Packing Kit P/N G32269
1шт.
11
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
piston; Part of Cylinder Packing Kit P/N G32269
1шт.
12
G32033
RING
wear; Part of Cylinder Packing Kit P/N G32269
1шт.
13
328-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 8
1шт.
14
G32057
ROD
piston (1-1/2" dia.), Incl. Ref 15
1шт.
15
G32050
BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L
rod
2шт.
G32269
KIT
cylinder packing, Incl. Ref 5, 6, 7, 8, 10, 11 and 12
1шт.
G33887
CYLINDER
bucket (3" I.D. x 14-1/4" stroke), G33887 with gland identification ring service replacement, Incl. Ref 1-15
2шт.
1
G32051
SPARE PART cylinder, G33888 lift with gland identification ring service replacement 21.44" L
1шт.
2
219-1
LUBE NIPPLE,1/8" - 27 NPTF
G33888 lift cylinder with gland identification ring service replacement
3шт.
3
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
self-tapping (#8 - 32 NC x 1/4"), G33888 lift cylinder with gland identification ring service replacement
1шт.
G33485
GLAND
complete, G33888 lift cylinder with identification ring service replacement, Incl. Ref 4-8A
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - packing (See inset B), G33888 lift cylinder with identification ring service replacement
1шт.
5
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - rod, outer, G33888 lift cylinder with gland identification ring service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
6
D36969
CUP
SEAL - rod, G33888 lift cylinder with gland identification ring service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
7
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
backup, gland seal, G33888 lift cylinder with identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
8
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
gland, G33888 lift cylinder with identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
8a
D27706
WIPER SEAL
WIPER - rod, inner (Used on repair gland only), G33888 lift cylinder with identification ring service replacement
1шт.
9
G33747
PISTON
cylinder, G33888 lift with gland identification ring service replacement
1шт.
10
G32034
RING
backup, piston seal, G33888 lift cylinder with gland identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
11
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
piston, G33888 lift cylinder with gland identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
12
G32033
RING
wear, G33888 lift cylinder with gland identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
13
328-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 8
G33888 lift cylinder with gland identification ring service replacement
1шт.
14
G33753
ROD
piston (1-1/2" dia.), G33888 lift cylinder with gland identification ring service replacement, Incl. Ref 15
1шт.
15
G32050
BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L
rod, G33888 lift cylinder with gland identification ring service replacement
2шт.
G32269
KIT
cylinder packing, Incl. Ref 5, 6, 7, 8, 10, 11 and 12, G33888 lift with gland identification ring service replacement
1шт.
Выбрано товаров: 37
