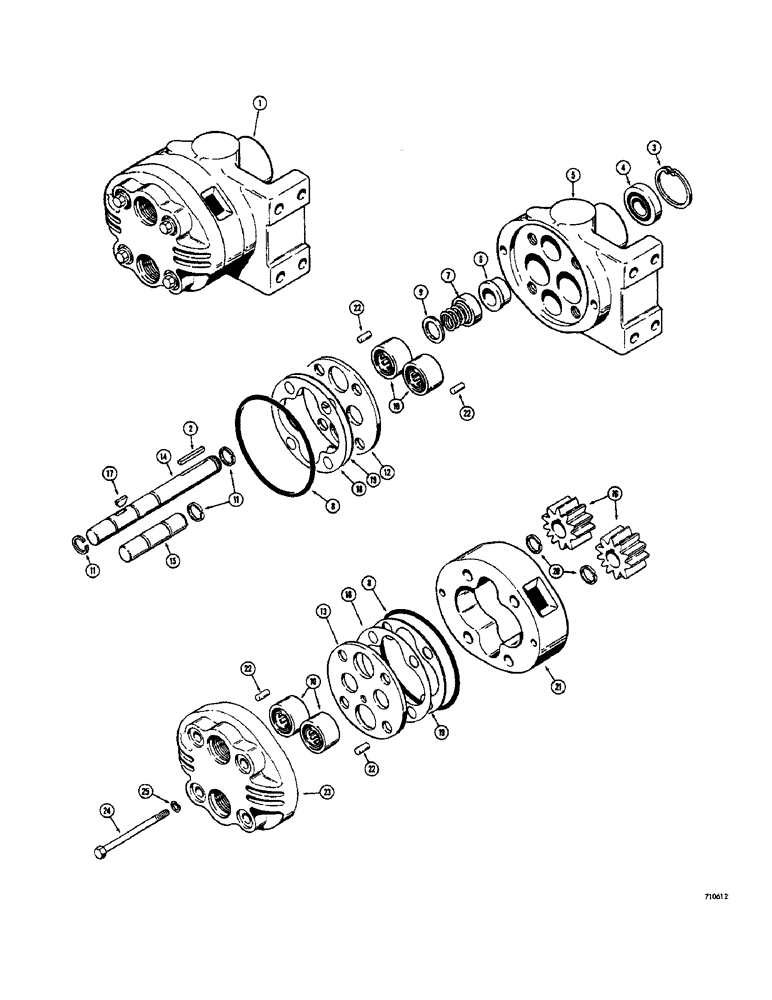

Запчасти Case 1500-SERIES (132) - HYDRAULIC MOTOR (ANGLE BROOMS) (35) - HYDRAULIC SYSTEMS

1

T41963

MOTOR, ELECTRIC

hydraulic (Hydreco #2M028B2B1), Incl. Ref 2-25

1шт.

2

P2712S

SPARE PART shaft

1шт.

3

A32181

SNAP RING,1.375", Int, #137

1.375", Int, #137

1шт.

4

D53701

SPARE PART ball type, front cover

1шт.

5

D53698

SPARE PART front, mounting

1шт.

D53628

SEAL

KIT - Incl. Ref 6-8

1шт.

6

17244

SEAT

SEAL - oil

1шт.

7

17259

SEAL ASSY.

shaft, driven

1шт.

8

17254

O-RING

2шт.

9

17256

ROD

WASHER - special

1шт.

10

D53702

BEARING

roller type

4шт.

11

17249

RING, SNAP

RING SNAP

3шт.

D53683

KIT

KIT - wear plate, Incl. Ref 12, 13

1шт.

12

17245

PLATE

wear, shaft end

1шт.

13

D32078

PLATE

wear, closed end

1шт.

14

D53700

SHAFT

drive

1шт.

15

17233

SPARE PART driven

1шт.

D53681

X

KIT - gear, Incl. Ref 16-20

1шт.

16

17231

GEAR WHEEL

drive and driven

2шт.

17

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

18

17248

SHIM

.001" thick (Amber)

1шт.

19

D32079

SHIM,.002" Thk

(Red)

1шт.

20

17249

RING, SNAP

RING SNAP

2шт.

21

17240

BRACKET

HOUSING - gear

1шт.

22

17258

AXLE PIN

dowel

4шт.

23

D53699

SPARE PART rear

1шт.

24

28-756

HHCS - 7/16" - 20 NF x 3-1/2"

4шт.

25

17260

LEVER

special, lock

4шт.
