Запчасти Case 1500-SERIES (086) - LOCK VALVE (35) - HYDRAULIC SYSTEMS

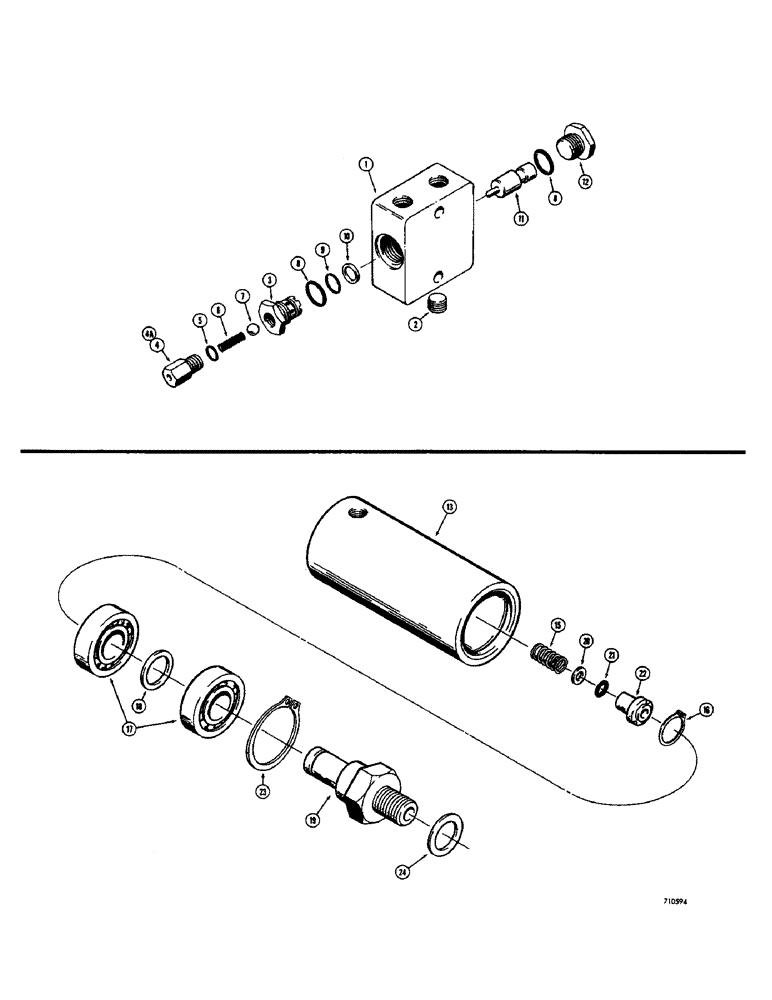

Схема запчастей Case 1500-SERIES - (086) - LOCK VALVE (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

T42651

VALVE

lock, Incl. Ref 1-12

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

221-841

PLUG

pipe (1/4" NPT)

1шт.

3

T40180

SPARE PART valve

1шт.

T42653

REPAIR KIT

Incl. Ref 4-11

1шт.

4

T42652

LOCK VALVE

thermal (This part replaces a small plug on early production valves)

1шт.

4a

NSS

NOT SOLD SEPARAT

PLUG - special, early production valves only (Order T42652 thermal relief valve for service)

1шт.

5

T40177

SEAL

T42652 valve

1шт.

6

T40178

VALVE SPRING

check

1шт.

7

T40179

BALL

valve check

1шт.

9

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

valve seat

1шт.

10

T40181

RING

backup

1шт.

11

T40182

PISTON

valve

1шт.

12

T40183

PLUG

male

1шт.

T42355

COUPLING, BREAK AWAY

rotary, Incl. Ref 13-24

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - rotary coupling, Incl. Ref 14

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - housing (Not illustrated), rotary coupling

2шт.

15

T41961

VALVE SPRING

coil, rotary coupling

1шт.

16

T41957

RING

small, rotary coupling

1шт.

17

T41956

BALL BEARING,0.315" ID x 0.8661" OD x 0.2756"

ball type, rotary coupling

2шт.

18

T41962

BUSHING

bearing, rotary coupling

1шт.

19

T41954

ROTOR

coupling, rotary

1шт.

T42357

KIT

seal repair, rotary coupling, Incl. Ref 20-24

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - seal, rotary coupling

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, rotary coupling

1шт.

22

T42356

SEAL

floating, rotary coupling

1шт.

23

49481

SNAP RING,0.866", Int, #87

arge, rotary coupling

1шт.

24

T41955

GASKET

rotor, rotary coupling

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Valve seat and plug

2шт.

Выбрано товаров: 29
