Запчасти Case 1500-SERIES (085A) - D55019 TILT CYLINDER AND AUXILIARY CONTROL VALVE, WITH HIGH PRESSURE CARRYOVER (35) - HYDRAULIC SYSTEMS

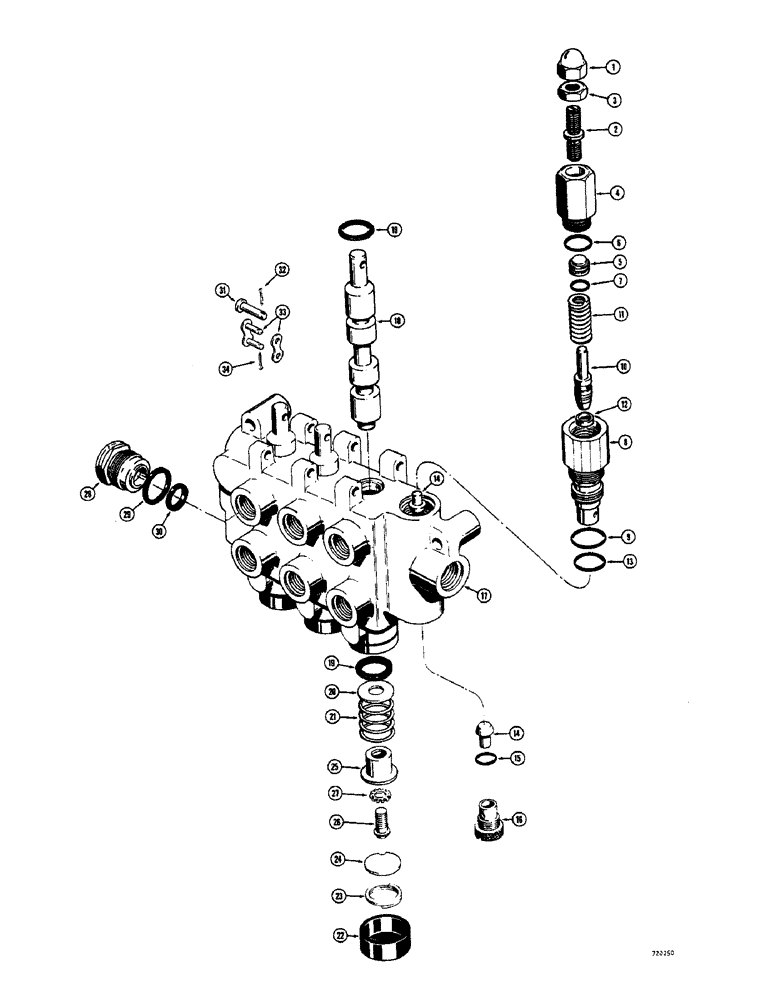

Схема запчастей Case 1500-SERIES - (085A) - D55019 TILT CYLINDER AND AUXILIARY CONTROL VALVE, WITH HIGH PRESSURE CARRYOVER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

D55019

VALVE

tilt cylinder and auxiliary, three spool (Gresen SPYE 4-4-4), Incl. Ref 1-34

1шт.

1

D55941

NUT

acorn

1шт.

2

D55942

SPARE PART adjustable

1шт.

3

D55943

SPARE PART jam, special

1шт.

4

D55944

CYLINDER END CAP

adjustable

1шт.

5

D55945

SPARE PART relief

1шт.

6

16905

O-RING,0.551" ID x 0.07" Width

large top

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

small top

1шт.

8

D51541

BODY

relief valve

1шт.

9

D39717

O-RING,1.051" ID x 1.191" OD

large bottom

1шт.

10

D39713

VALVE POPPET

relief

1шт.

11

D51540

VALVE SPRING

relief

1шт.

12

D39714

RING

relief valve poppet

1шт.

13

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

small bottom

1шт.

14

D28576

VALVE POPPET

check

2шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

plug

1шт.

16

D28574

PLUG

check

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - four way

3шт.

19

T42095

O-RING

quad ring

6шт.

20

36650

WASHER

stop

3шт.

21

36632

SPRING

centering

3шт.

22

36645

CAP

rubber (Bonnet)

3шт.

23

36633

LID

snap

3шт.

24

36631

HOUSING

stop

3шт.

25

CAS36630

COLLAR

stop

3шт.

26

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

slotted, 1/4" - 20 NC x 1/2"

3шт.

27

36628

LOCK WASHER

lock, external

3шт.

28

D54293

SLEEVE CYLINDER

power beyond

1шт.

29

D48086

SEAL,1.358" ID

1шт.

30

D53169

RING

1шт.

31

36627

SEAT

PIN - handle

3шт.

32

132-5

COTTER PIN,1/16" x 1/2"

3шт.

33

36640

DRAG LINK

handle

3шт.

34

132-13

PIN

cotter, 1/16" x 1-1/2"

3шт.

Выбрано товаров: 35
