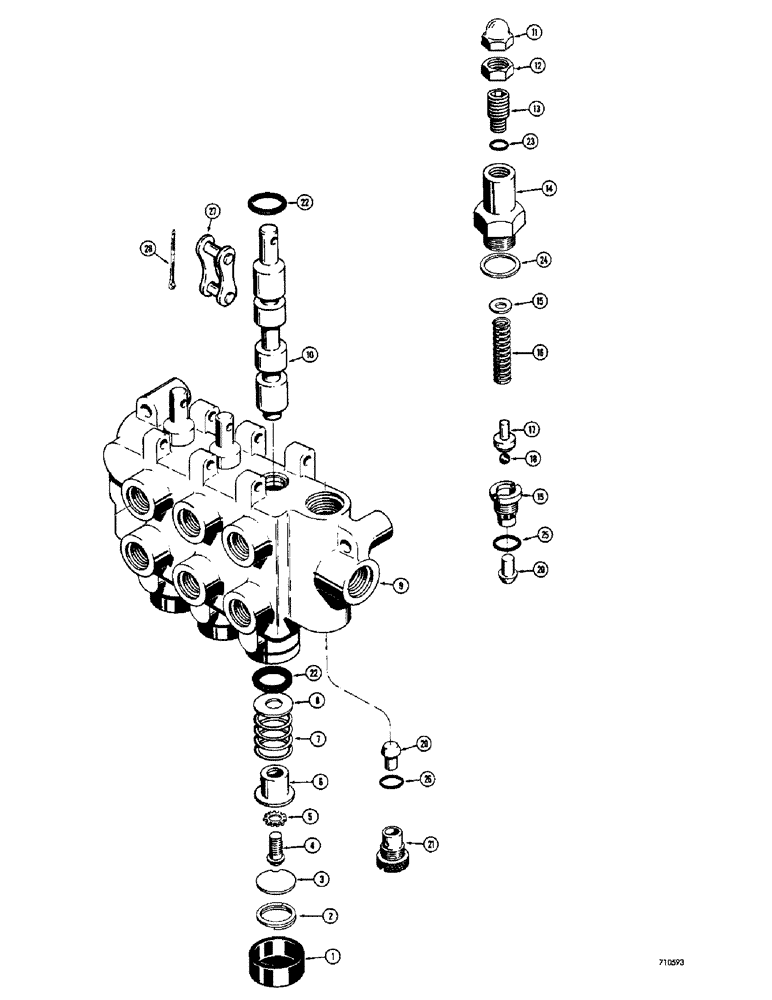

Запчасти Case 1500-SERIES (084) - BUCKET CYLINDER AND AUXILIARY VALVE - THREE SPOOL, WITHOUT HIGH PRESSURE CARRYOVER (35) - HYDRAULIC SYSTEMS

T40083

VALVE ASSEMBLY - bucket cylinder and auxiliary, three spool, Incl. Ref 1-27

1шт.

1

36645

CAP

rubber

3шт.

2

36633

LID

snap, stop disc

3шт.

3

663023R1

CAP

stop

3шт.

4

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

spring assembly

3шт.

5

36628

LOCK WASHER

centering spring

3шт.

6

36630

DRAWBAR SUPPORT

stop

3шт.

7

36632

SPRING

centering

3шт.

8

36650

WASHER

stop

3шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - valve

3шт.

11

129-877

NUT,Crown, 3/4"-10

acorn

1шт.

12

129-167

JAM NUT,Jam, 5/8"-18, G5

Main relief

1шт.

13

34110

ADJUSTMENT SCREW

adjustable

1шт.

14

34113

BODY

relief valve

1шт.

15

36660

WASHER

relief spring

1шт.

16

D24049

VALVE SPRING

relief

1шт.

17

CAS34120

BUSHING

ball seat spring

1шт.

18

211-12

BALL,7/16 Dia

relief valve

1шт.

19

D28913

SEAT

relief valve

1шт.

20

D28576

VALVE POPPET

check

2шт.

21

D28574

PLUG

check

1шт.

T42174

GASKET KIT

Incl. Ref 22-26

1шт.

22

T42095

O-RING

spool

6шт.

23

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

adjustable screw

1шт.

24

34115

GASKET

relief valve

1шт.

26

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

check plug

1шт.

27

36640

DRAG LINK

handle

3шт.

28

132-13

PIN

cotter (1/16" x 1-1/2")

3шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Relief valve seat

1шт.
