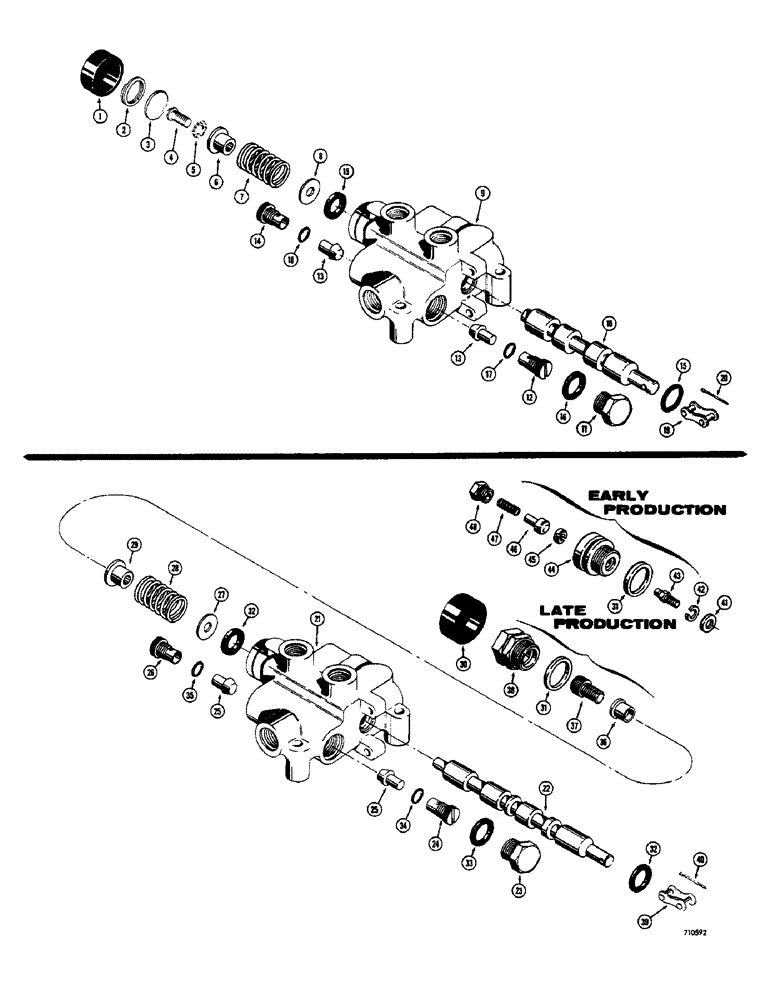

Запчасти Case 1500-SERIES (082) - BUCKET CYLINDER VALVE - ONE SPOOL (35) - HYDRAULIC SYSTEMS

T40138

VALVE

bucket cylinder, one spool, Incl. Ref 1-19

1шт.

1

36645

CAP

rubber

1шт.

2

36633

LID

snap, stop disc

1шт.

3

36631

HOUSING

stop

1шт.

4

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

spring assembly

1шт.

5

36628

LOCK WASHER

centering spring

1шт.

6

CAS36630

COLLAR

stop

1шт.

7

36632

SPRING

centering

1шт.

8

36650

WASHER

stop

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

11

D23724

CYLINDER END CAP

relief

1шт.

12

D28839

PLUG

check guide

1шт.

13

D28576

VALVE POPPET

check

2шт.

14

D28574

PLUG

check

1шт.

T42094

SEAL KIT

Incl. Ref 15-18

1шт.

15

T42095

O-RING

spool

2шт.

16

34115

GASKET

relief valve

1шт.

18

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

check plug

1шт.

19

36640

DRAG LINK

handle

1шт.

20

132-13

PIN

cotter (1/16" dia. x 1-1/2")

1шт.

T40137

VALVE

lift cylinder, Incl. Ref 21-39

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - valve, lift cylinder

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - valve, lift cylinder

1шт.

23

D23724

CYLINDER END CAP

relief, lift cylinder valve

1шт.

24

D28839

PLUG

check guide, lift cylinder valve

1шт.

25

D28576

VALVE POPPET

check, lift cylinder valve

2шт.

26

D28574

PLUG

check, lift cylinder valve

1шт.

27

36650

WASHER

stop, lift cylinder valve

1шт.

28

D32602

VALVE SPRING

float centering, lift cylinder valve

1шт.

29

36652

COLLAR

float spring, lift cylinder valve

1шт.

30

36645

CAP

rubber, lift cylinder valve

1шт.

31

NLS

NO LONGER SERVICED

float detent cap, lift cylinder valve

1шт.

T42094

SEAL KIT

lift cylinder valve, Incl. Ref 36-38

1шт.

32

T42095

O-RING

spool, lift cylinder valve

2шт.

33

34115

GASKET

relief cap, lift cylinder valve

1шт.

35

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

check plug, lift cylinder valve

1шт.

T42098

ASSEMBLY

KIT - float detent, lift cylinder valve

1шт.

36

NSS

NOT SOLD SEPARAT

PLUNGER - detent, lift cylinder valve

1шт.

37

D50913

BOLT,Shoulder, 5/16" - 18 x 0.718"

shoulder, lift cylinder valve

1шт.

38

NSS

NOT SOLD SEPARAT

CAP - detent, sub assembly, lift cylinder valve

1шт.

39

36640

DRAG LINK

handle, lift cylinder valve

1шт.

40

132-13

PIN

cotter (1/16" dia. x 1-1/2"), lift cylinder valve

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - adapter (Use T42098 kit), early production detent parts

1шт.

42

NSS

NOT SOLD SEPARAT

LOCKWASHER - adpater (Use T42098 kit), early production detent parts

1шт.

43

NSS

NOT SOLD SEPARAT

ADAPTER - detent (Use T42098 kit), early production parts

1шт.

44

NSS

NOT SOLD SEPARAT

CAP - detent (Use T42098 kit), early production parts

1шт.

45

NSS

NOT SOLD SEPARAT

CLAMP - detent (Use T42098 kit), early production parts

1шт.

46

NSS

NOT SOLD SEPARAT

HOLDER - finger (Use T42098 kit), early production detent parts

1шт.

47

NSS

NOT SOLD SEPARAT

SPRING - detent (Use T42098 kit), early production parts

1шт.

48

NSS

NOT SOLD SEPARAT

CAP - detent (Use T42098 kit), early production parts

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Relief valve seat

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Relief valve seat, Lift cylinder valve

1шт.
