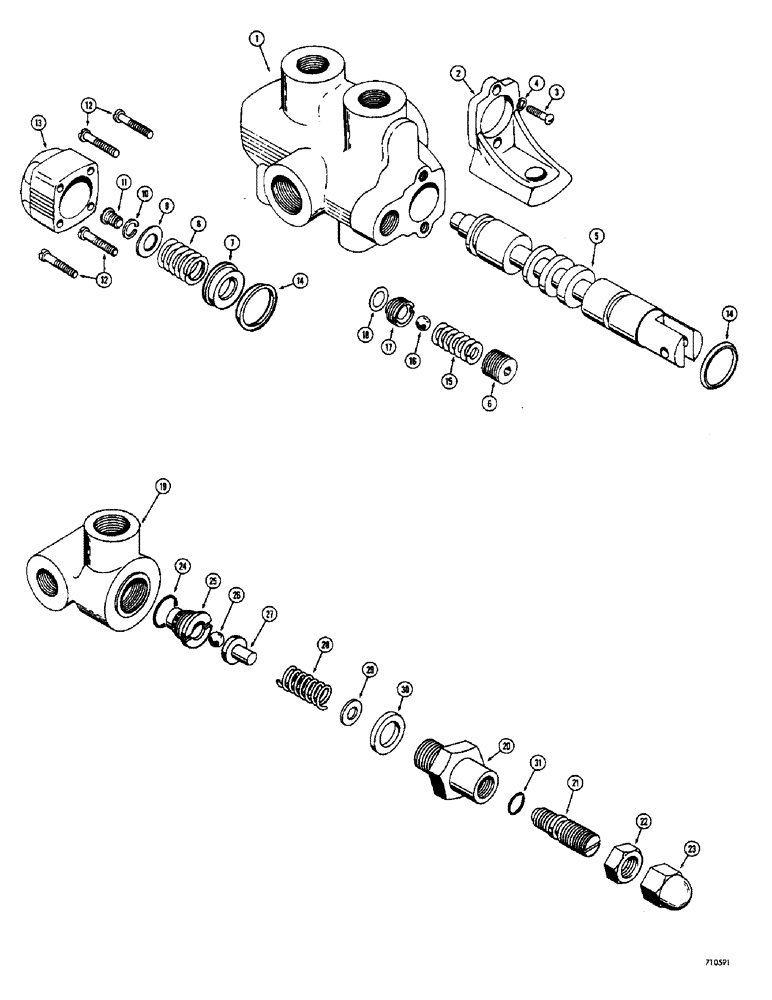

Запчасти Case 1500-SERIES (080) - VARIABLE SPEED CONTROL VALVE (35) - HYDRAULIC SYSTEMS

D52845

HYDRAULIC VALVE

variable speed control, Incl. Ref 1-18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

C11888

BRACKET

handle

1шт.

3

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

RHMS - 1/4" - 20 NC x 5/8"

2шт.

4

92-4

LOCK WASHER,1/4"

2шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

6

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

relief

1шт.

7

T40188

COLLAR CLAMP

spool

1шт.

8

T40187

SPRING

centering

1шт.

9

195-525

WASHER,3/8", SAE

spring

1шт.

10

36628

LOCK WASHER

lock

1шт.

11

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

spring assembly

1шт.

12

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

bonnet

4шт.

13

T40184

CAP

BONNET - end

1шт.

T42192

KIT

seal, Incl. Ref 14-18

1шт.

14

C11891

SEAL

V-cup

2шт.

15

T40189

SPRING

relief

1шт.

16

211-11

BALL,3/8" Dia

relief, . 3/8" Dia

1шт.

17

C11896

SEAT

relief

1шт.

18

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

T40135

VALVE

relief, Incl. Ref 19-31

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

20

34113

BODY

relief valve

1шт.

21

34110

ADJUSTMENT SCREW

adjustable, relief valve

1шт.

22

34111

X

NUT - jam, adjustable screw, relief valve

1шт.

23

34109

SPARE PART CUP - acorn, relief valve

1шт.

T42111

KIT

seal repair, relief valve, Incl. Ref 24-31

1шт.

25

D46222

SEAT

relief valve

1шт.

26

211-12

BALL,7/16 Dia

relief valve

1шт.

27

CAS34120

BUSHING

ball seat spring, relief valve

1шт.

28

D24049

VALVE SPRING

1шт.

29

36660

WASHER

relief spring, valve

1шт.

30

34115

GASKET

relief cap, valve

1шт.

31

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

screw, relief valve

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Relief valve seat

1шт.
