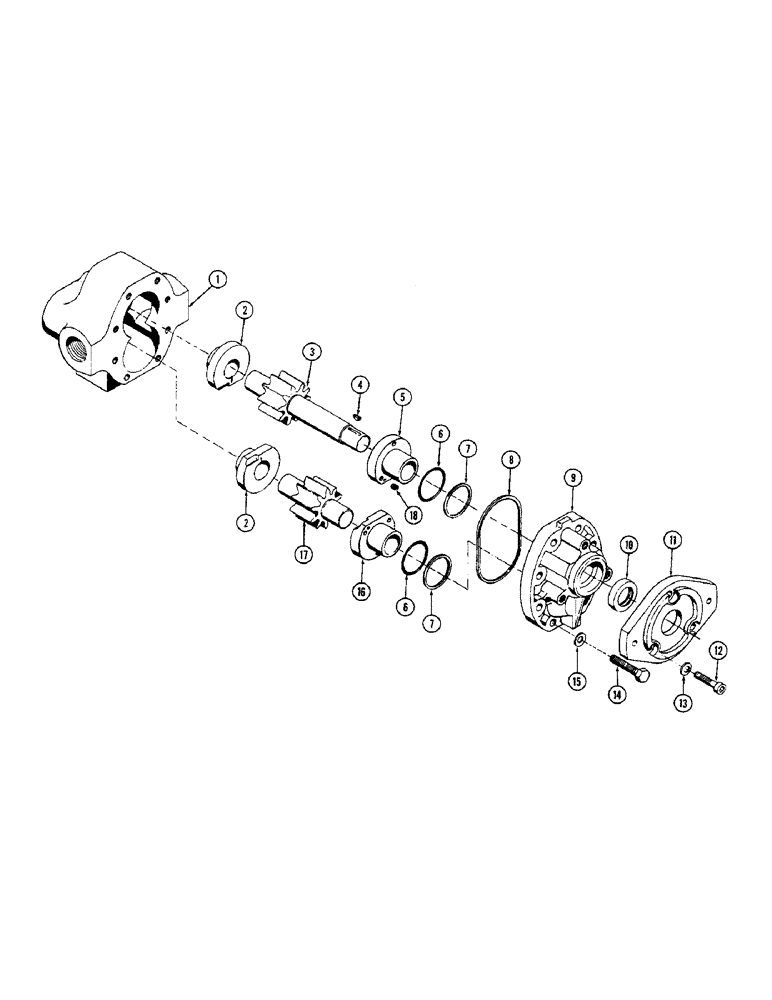

Запчасти Case 1500-SERIES (078) - HYDRAULIC PUMP - KEYED SHAFT, USED BEFORE SN. 9813331 (35) - HYDRAULIC SYSTEMS

T40132

PUMP

hydraulic, complete, Incl. Ref 1-18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

2

T40173

NO LONGER SERVICED

SLEEVE BODY - drive shaft

2шт.

3

T40171

SPARE PART drive, key wayed

1шт.

4

126-22

WOODRUFF KEY,#13, 3/16" x 1"

1шт.

5

T40166

COVER

SLEEVE drive shaft

1шт.

6

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

Part of Seal Kit P/N T40250

2шт.

7

NSS

NOT SOLD SEPARAT

RING - backup; Part of Seal Kit P/N T40250

2шт.

8

NSS

NOT SOLD SEPARAT

GASKET; Part of Seal Kit P/N T40250

1шт.

9

T40161

COVER

pump body

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil; Part of Seal Kit P/N T40250

1шт.

11

T40158

SPARE PART mounting

1шт.

12

61-516

HEX SOC SCREW,5/16"-18 x 1"

hex. socket head (5/16" - 18 NC x 1")

3шт.

13

T40160

SPARE PART

3шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

15

T40163

WASHER

8шт.

16

T40167

COVER ASSY

SLEEVE driven shaft

1шт.

17

T40172

SHAFT

GEAR - driven

1шт.

18

T40168

SPRING

6шт.

T40250

SEAL

KIT - Incl. Ref 6, 7, 8 and 10

1шт.
