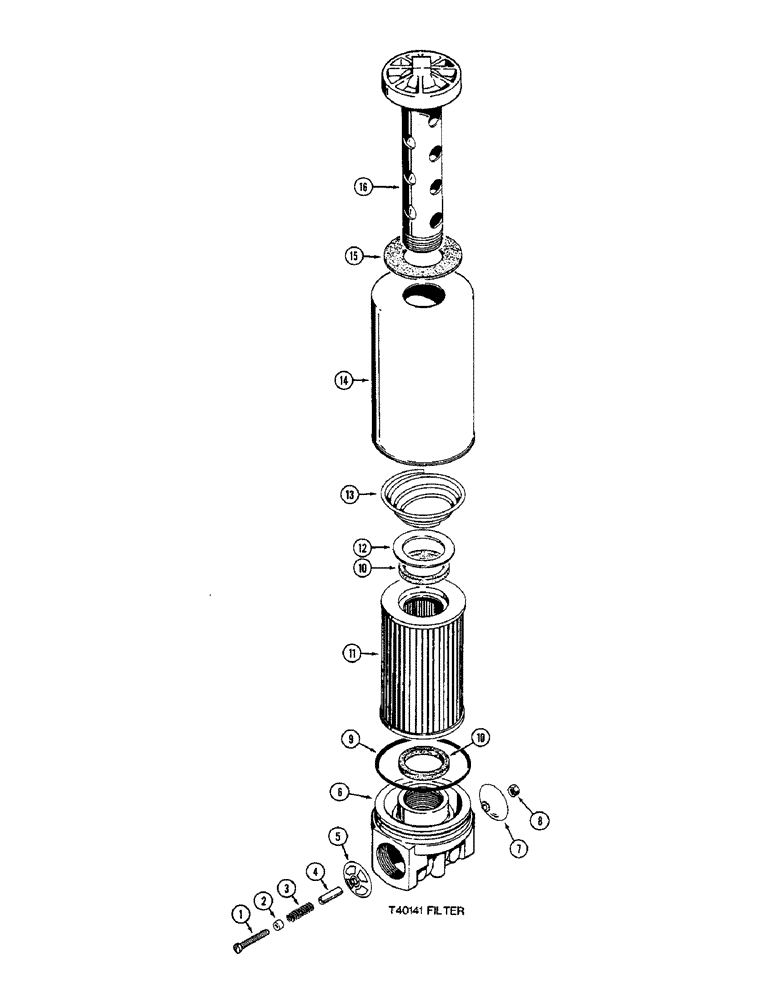

Запчасти Case 1500-SERIES (076) - HYDRAULIC FILTER, 2 MOUNTING HOLES IN HEAD, (35) - HYDRAULIC SYSTEMS

T40141

FILTER

hydraulic oil, Incl. Ref 1-16

1шт.

1

169-140

SCREW,Sl Fil Hd, #8 - 32 x 1 3/4"

bypass filter head

1шт.

2

T29780

CYLINDER END CAP

bypass stem

1шт.

3

T29782

SPRING

bypass

1шт.

4

T29783

SPACER

bypass valve

1шт.

5

T29784

GUIDE

bypass

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

7

T29785

VALVE

bypass

1шт.

8

131-552

NUT,#8-32

bypass

1шт.

9

T29789

SEALING RING,4.35" ID x 0.25" Width

SEALRING housing (Replaces T40150); Part of Element Kit P/N T40153

1шт.

10

W12214

GASKET

Replaces T40152; Part of Element Kit P/N T40153

2шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - 33 micron; Part of Element Kit P/N T40153

1шт.

12

T42195

WASHER

backup

1шт.

13

T29793

SPRING

conical

1шт.

14

T29794

HOUSING

filter

1шт.

15

T29795

GASKET

center post seal (Replaces T40156); Part of Element Kit P/N T40153

1шт.

16

T29796

SUPPORT

POST - center (Replaces D46226)

1шт.

T40153

FILTER

KIT element, Incl. Ref 9, 10, 11 and 15

1шт.
