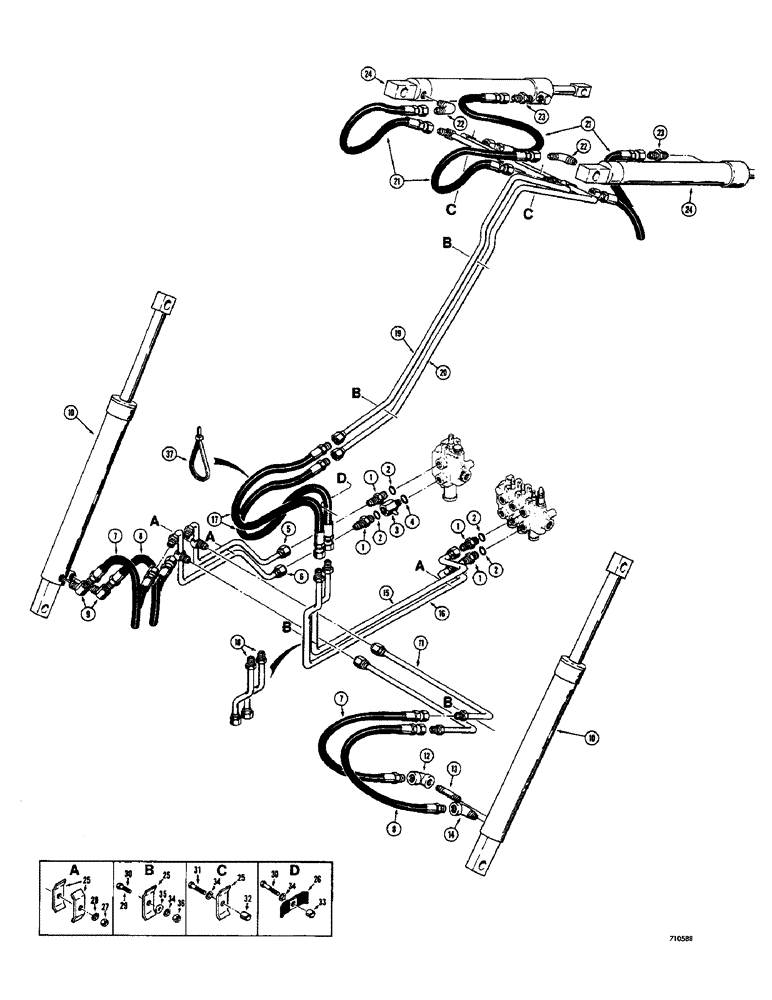

Запчасти Case 1500-SERIES (070) - LIFT ARM HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

male, straight, Incl. Ref 2

4шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

T40305

FITTING

RESTRICTOR - lift circuit

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

T40282

SPARE PART top lift (Used on models 1526 and 1537) to 9813801

1шт.

5

T40283

SPARE PART top lift (Used on model 1530) to 9813801

1шт.

5

T41742

TUBE,15.16, 8.34" L

top lift (Used on all models), Start Serial: 9813801

1шт.

6

T40281

TUBE - bottom lift (Used on model 1526 and 1537) to 9813801

1шт.

6

T40280

TUBE

bottom lift (Used on model 1530) to 9813801

1шт.

6

T41741

TUBE,15.26, 8.84" L

bottom lift (Used on all models), Start Serial: 9813801

1шт.

7

T40296

SPARE PART to lift cyl. (22-1/2" long)

2шт.

8

T40297

HOSE

to lift cyl. (24-1/2" long)

2шт.

9

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Pipe

2шт.

10

REF

INSTRUCTION

CYLINDER - lift (See Figs. 136 and 138 for proper cylinder and parts list)

2шт.

11

T40284

TUBE

crossover

2шт.

12

221-399

X

ELBOW - pipe, 90 degrees (3/8" NPT)

1шт.

13

221-716

NIPPLE - pipe (3/8" NPT)

1шт.

14

221-763

X

ELBOW - pipe, 90 degree street (3/8" NPT)

1шт.

15

T40286

SPARE PART top tilt

1шт.

15

T41764

SPARE PART top tilt, Serial Range: 9813801-9815203

1шт.

15

T42623

TUBE,0.625" OD

top tilt, Start Serial: 9815204

1шт.

16

T40285

TUBE

bottom tilt, When stock is exhausted, order T41763 for service, Serial Range: -9813801

1шт.

16

T41763

TUBE,0.625" OD

bottom tilt, Serial Range: 9813801-9815203

1шт.

16

T42624

TUBE,0.625" OD

bottom tilt, Start Serial: 9815204

1шт.

17

D23030

HOSE

loader upright to lift arm (36-1/2" long)

2шт.

18

T42511

SPARE PART jumper (For use with overhead guard or L.P. gas), Serial Range: -9815204

2шт.

19

T40294

SPARE PART top tilt, on arm,When stodck is exhausted, order T41743 tube, Serial Range: -9815204

1шт.

19

T41743

TUBE,0.625" OD x 57.25, 26.88" L

top tilt, on arm, Serial Range: -9815204

1шт.

19

T42627

TUBE,0.625" OD

top tilt, on arm, Start Serial: 9815204

1шт.

20

T40293

SPARE PART top tilt, on arm, When stock is exhausted, order T41769 tube, Serial Range: -9815204

1шт.

20

T41769

TUBE,0.625" OD

top tilt, on arm, Serial Range: -9815204

1шт.

20

T42628

SPARE PART top tilt, on arm, Start Serial: 9815204

1шт.

21

T40301

HOSE,0.38" ID x 17.00", SAE 100R1

To Tilt Cylinders

4шт.

22

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

90 degrees, male

2шт.

23

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

straight, male

2шт.

24

REF

INSTRUCTION

CYLINDER - bucket (See Figs.140 and 142 for proper cylinder and parts list)

2шт.

25

A13622

PLATE, LOCKING

CLAMP - tube

12шт.

26

D40236

CLAMP

hose

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used

2шт.

30

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(If used)

3шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(If used)

2шт.

32

D33552

BUSHING

tube clamp (If used)

2шт.

33

D33829

BUSHING

hose clamp (If used)

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

195-25

WASHER,3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

hex. (3/8" - 18 NC)

1шт.

37

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP plastic, hose tie

1шт.
