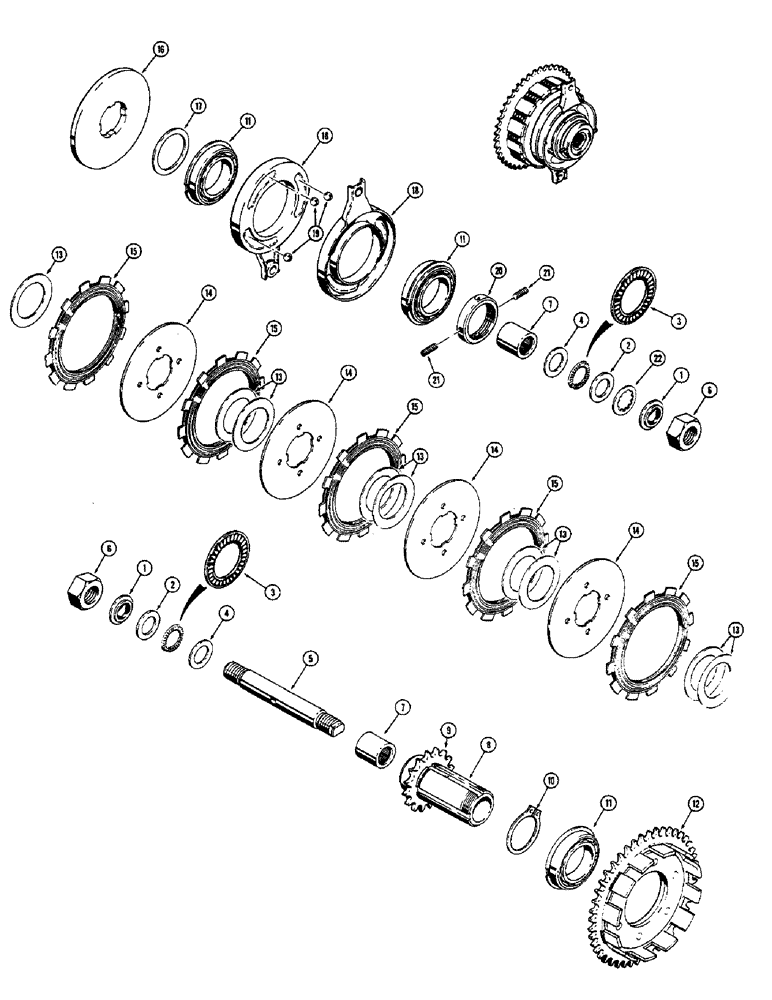

Запчасти Case 1500-SERIES (053A) - FIVE DISC CLUTCH AND SHAFT ASSEMBLY, SERVICE REPLACEMENT FORMSPRAG CLUTCH (18) - CLUTCH

1

T40065

WASHER

seal (7/8")

8шт.

2

G46081

BEARING WASHER

thrust

8шт.

3

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

8шт.

4

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

thrust

8шт.

5

T40024

SHAFT

clutch

4шт.

For identification, Ref. 5 is stamped with letter "F" and Ref. 18 cam is not painted.

1шт.

6

25-1114

NUT,7/8"-14, G5

hex. (7/8" - 14 NF)

8шт.

D55802

CLUTCH

Incl. Ref 7-21

4шт.

7

T40012

NEEDLE BEARING

needle

2шт.

D55928

HUB

KIT - hub and sprocket, Incl. Ref 8-10

1шт.

8

D55819

HUB CAP

clutch

1шт.

9

D55820

SPROCKET ASSY.

clutch

1шт.

10

100-11196

SNAP RING,#196, Ext

#196, Ext

1шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

cam

3шт.

12

D53324

CUP ASSY.

drive

1шт.

13

T42270

KIT

SPRING SET - release (Set of 9)

1шт.

14

D54830

DISC

separator

4шт.

15

T40018

DISC

friction

5шт.

16

T40019

PLATE ASSY.

pressure

1шт.

17

T40020

BUSHING

pressure plate

1шт.

18

D54633

CAM

2шт.

For identification, Ref. 5 is stamped with letter "F" and Ref. 18 cam is not painted.

1шт.

19

211-12

BALL,7/16 Dia

cam

3шт.

20

D55171

COLLAR

NUT - adjusting

1шт.

21

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

1/4" - 20 NC x 3/4" (Adjusting nut)

2шт.

22

T40067

LOCK

RING - clutch retainer

4шт.
