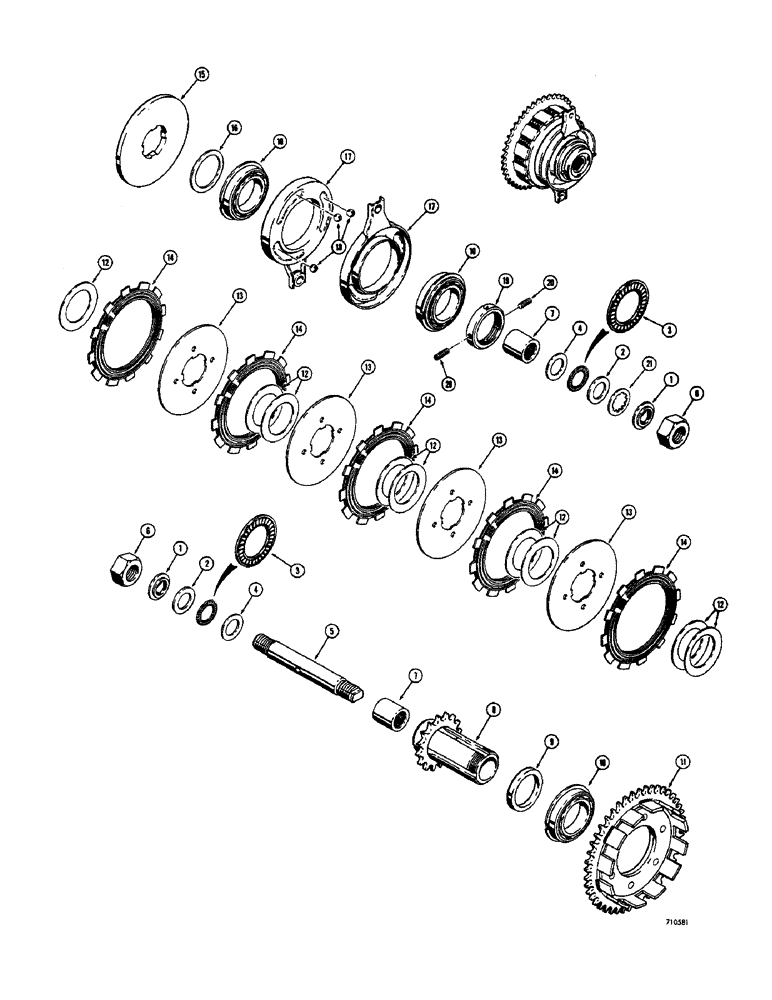

Запчасти Case 1500-SERIES (052) - MULTIPLE DISC CLUTCH AND SHAFT ASSEMBLY, ORIGINAL EQUIPMENT (18) - CLUTCH
№
Артикул
Название
Примечание
Количество
1
T40065
WASHER
seal (7/8")
8шт.
2
G46081
BEARING WASHER
thrust
8шт.
3
G13609
THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W
8шт.
4
T40066
WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk
thrust
8шт.
5
T40024
SHAFT
clutch
4шт.
6
25-1114
NUT,7/8"-14, G5
hex. (7/8" - 14 NF)
8шт.
T42260
CLUTCH
with bearings (When stock is exhausted, order (1) D55802 clutch, (2) T40054 pins and (4) 195-25 washers) See Fig. 53A for D55802 clutch, Incl. Ref 7-20
4шт.
D54926
CLUTCH
with bearings, Incl. Ref 7-20
4шт.
7
T40012
NEEDLE BEARING
needle
2шт.
8
D55928
HUB
clutch
1шт.
9
T41005
SPARE PART clutch
1шт.
10
40027
BALL BEARING,49.99mm ID x 80mm OD x 16mm W
cam
3шт.
11
T40015
CAP
drive, welded construction (When stock is exhausted, order D53324)
1шт.
11
D53324
CUP ASSY.
drive, riveted construction
1шт.
12
T42270
KIT
SPRING SET - release (Set of 9)
1шт.
13
D54830
DISC
separator
4шт.
14
T40018
DISC
friction
5шт.
15
T40019
PLATE ASSY.
pressure
1шт.
16
T40020
BUSHING
pressure plate
1шт.
17
T40021
CAM
early production, with welded bar lug (Use D52917 cam kit listed below)
2шт.
17
T42271
CAM
intermediate production, single piece stamping (7/16") thick at lug bushing) Use D52917 cam kit listed below
2шт.
17
D54633
CAM
late production, single piece stamping (11/32" thick at lug bushing)
2шт.
18
211-12
BALL,7/16 Dia
cam
3шт.
19
T40023
COLLAR
NUT - adjusting
1шт.
20
83-412
SET SCREW,Socket, 1/4" - 20 x 3/4", AST
1/4" - 20 NC x 3/4" (Adj. nut)
2шт.
21
T40067
LOCK
RING - clutch retainer
4шт.
D52917
CLUTCH
KIT - clutch cam, Incl. Ref 17, 18
4шт.
17
D54633
CAM
single piece stamping (11/32" thick at lug bushing)
2шт.
T40054
CLEVIS PIN
1-3/32" (D52870 cam only) See Fig. 54 for illustration and pins used with T40021 and T42271 cams
2шт.
195-25
WASHER,3/8"
T40054 pin spacing
4шт.
132-46
COTTER PIN,1/8" x 3/4"
T40054 pin
2шт.
18
211-12
BALL,7/16 Dia
cam
3шт.
