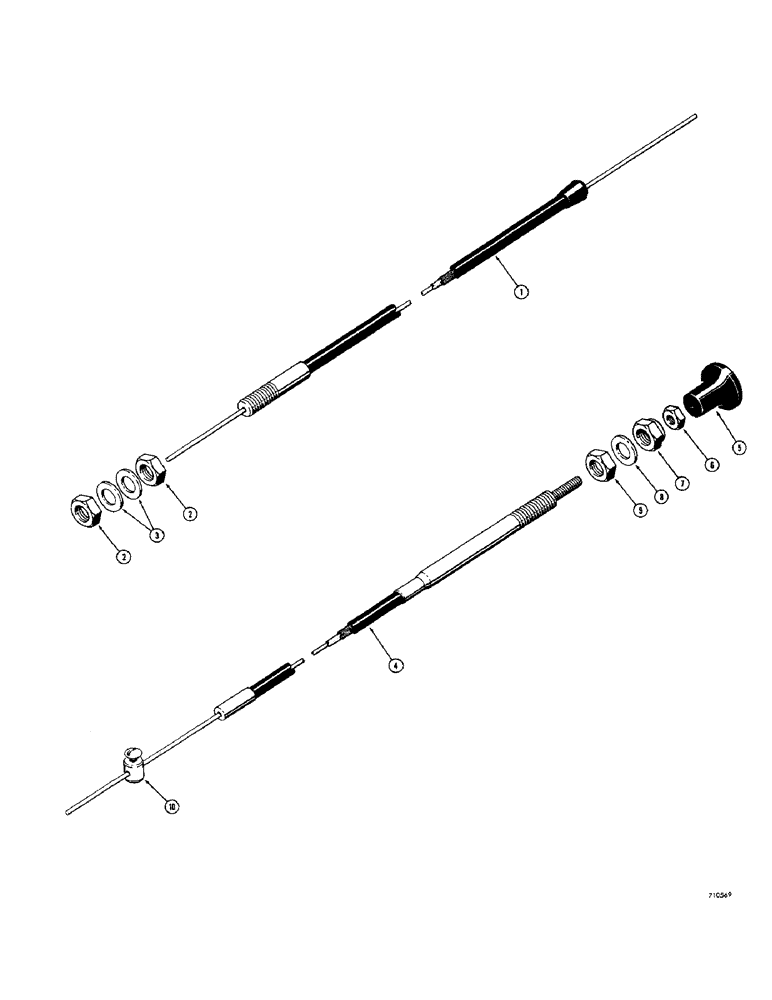

Запчасти Case 1500-SERIES (027A) - CHOKE AND THROTTLE CABLES, MODELS 1530 AND 1537 (10) - ENGINE
№
Артикул
Название
Примечание
Количество
T41501
CABLE
throttle (When stock is exhausted, order D52836 cable for service), Incl. Ref 1-3
1шт.
1
NSS
NOT SOLD SEPARAT
CABLE - throttle
1шт.
2
86637933
JAM NUT,5/16" - 24, Gr 5
2шт.
3
195-520
WASHER,1/4"
flat (5/16")
2шт.
D52836
CABLE
throttle, Incl. Ref 1-3
1шт.
1
NSS
NOT SOLD SEPARAT
CABLE - throttle
1шт.
2
86637933
JAM NUT,5/16" - 24, Gr 5
2шт.
3
195-520
WASHER,1/4"
flat (5/16")
2шт.
T40249
CONTROL
CABLE - choke control (1530) When stock is exhausted, order D52880 cable for service, Incl. Ref 4-10
1шт.
4
NSS
NOT SOLD SEPARAT
CABLE - choke control
1шт.
5
D52915
KNOB
cable assembly
1шт.
6
129-660
NUT,#10-32, Brass
1шт.
7
D52916
SPARE PART special sealing (5/16" - 24 NF)
1шт.
8
195-520
WASHER,1/4"
flat (5/16")
1шт.
9
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
10
L32208
CLAMP
COLLAR ASSEMBLY - cable
1шт.
D52880
CABLE - choke control (1530), Incl. Ref 4-10
1шт.
4
NSS
NOT SOLD SEPARAT
CABLE - choke control
1шт.
5
D52915
KNOB
cable assembly
1шт.
6
129-660
NUT,#10-32, Brass
1шт.
7
D52916
SPARE PART special sealing (5/16" - 24 NF)
1шт.
8
195-520
WASHER,1/4"
flat (5/16")
1шт.
9
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
10
L32208
CLAMP
COLLAR ASSEMBLY - cable
1шт.
T40247
CONTROL
CABLE - choke control (1537) When stock is exhausted, order D52837 for service, Incl. Ref 4-10
1шт.
4
NSS
NOT SOLD SEPARAT
CABLE - choke control
1шт.
5
D52915
KNOB
cable assembly
1шт.
6
129-660
NUT,#10-32, Brass
1шт.
7
D52916
SPARE PART special sealing (5/16" - 24 NF)
1шт.
8
195-520
WASHER,1/4"
flat (5/16")
1шт.
9
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
10
L32208
CLAMP
COLLAR ASSEMBLY - cable
1шт.
D52837
CABLE
choke control (1537), Incl. Ref 4-10
1шт.
4
NSS
NOT SOLD SEPARAT
CABLE - choke control
1шт.
5
D52915
KNOB
cable assembly
1шт.
6
129-660
NUT,#10-32, Brass
1шт.
7
D52916
SPARE PART special sealing (5/16" - 24 NF)
1шт.
8
195-520
WASHER,1/4"
flat (5/16")
1шт.
9
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
10
L32208
CLAMP
COLLAR ASSEMBLY - cable
1шт.
Выбрано товаров: 40
