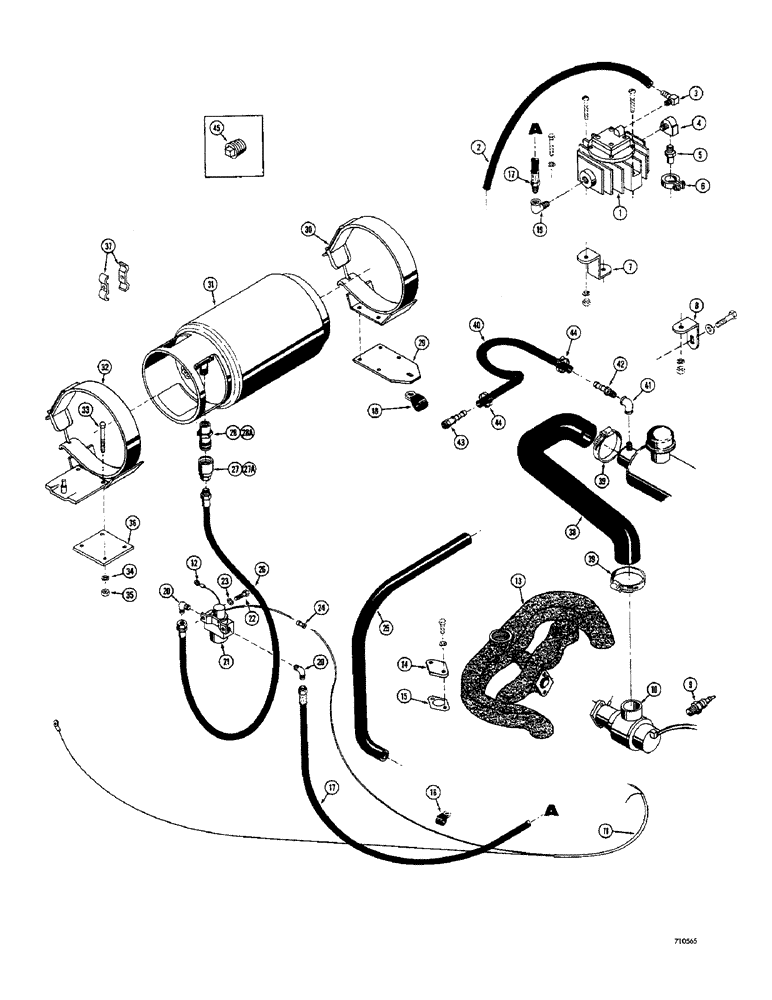

Запчасти Case 1500-SERIES (022) - L.P. GAS SYSTEM - 1537 (10) - ENGINE

1

REF

INSTRUCTION

CONVERTER; Obtain from Wisconsin engine distributor.

1шт.

2

REF

INSTRUCTION

HOSE - vacuum; Obtain from Wisconsin engine distributor.

1шт.

3

REF

INSTRUCTION

CONNECTOR - hose, vacuum line; Obtain from Wisconsin engine distributor.

1шт.

4

REF

INSTRUCTION

FITTING - elbow, fuel line; Obtain from Wisconsin engine distributor.

2шт.

5

REF

INSTRUCTION

CONNECTOR - hose, fuel line; Obtain from Wisconsin engine distributor.

2шт.

6

REF

INSTRUCTION

CLAMP - hose; Obtain from Wisconsin engine distributor.

2шт.

7

REF

INSTRUCTION

BRACKET - mounting, "Z" shaped; Obtain from Wisconsin engine distributor.

1шт.

8

REF

INSTRUCTION

BRACKET - mounting, "L" shaped; Obtain from Wisconsin engine distributor.

1шт.

9

T41930

SPARK PLUG - special

4шт.

10

REF

INSTRUCTION

CARBURETOR - special; Obtain from Wisconsin engine distributor.

1шт.

11

T41927

SPARE PART wire

1шт.

12

223-52

FUSE

TERMINAL - electrical, at shutoff valve

1шт.

13

T41936

MANIFOLD - special

1шт.

14

T41658

SPARE PART cover, fuel pump

1шт.

15

B53483

SPARE PART GASKET - cover plate

1шт.

16

T41928

CLAMP,3/16", Insul, 1/4" Bolt

wire harness

3шт.

17

T42256

HOSE ASSY.

fuel

1шт.

18

49885

CLAMP

hose

1шт.

19

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

ELBOW - 90 degrees, street (T42256 hose at converter)

1шт.

20

218-880

ELBOW UNION,90 Degree, 7/16"-20, 37 Degree x 1/4"-18, NPTF

Union Elbow 90 degrees, male

2шт.

21

REF

INSTRUCTION

VALVE - electrical shutoff; Obtain from Wisconsin engine distributor.

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

24

T41598

CONNECTOR, ELEC

CONNECTOR SPLICE, butt, wire

3шт.

25

REF

INSTRUCTION

HOSE - fuel, converter to carburetor; Obtain from Wisconsin engine distributor.

1шт.

26

T41926

SPARE PART fuel

1шт.

27

T41925

SPARE PART COUPLING - female, Incl. Ref 27A

1шт.

27a

T42634

SPARE PART seal repair, T41925 coupling

1шт.

28

T41924

COUPLING - male, Incl. Ref 28A

1шт.

28a

T42633

KIT - seal repair, T41924 coupling

1шт.

29

T41922

PLATE - mounting

1шт.

30

T41920

SPARE PART tank

1шт.

31

T41923

SPARE PART fuel

1шт.

32

T41919

BRACKET - tank

1шт.

33

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

8шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

35

9635082

NUT,5/16" - 18, Gr 5

8шт.

36

T41921

PLATE - mounting

1шт.

37

A13622

PLATE, LOCKING

CLAMP - hose (If used)

2шт.

38

T41929

SPARE PART Air intake

1шт.

39

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

40

T42650

TUBE,0.375" ID x 0.62" OD x 32" L

vent, 32" long (Used on engine spec. no. 343756 only - for engine spec. no. 336017, See Fig.12)

1шт.

41

221-743

ADAPTER

90 degrees, female (See Ref 40)

1шт.

42

220-3

FITTING

ADAPTER - male, straight (Top) See Ref 40

1шт.

43

220-13

HYDRAULIC SWIVEL

ADAPTER - female, straight (Bottom) See Ref 40

1шт.

44

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose (See Ref: 40)

2шт.

45

221-1010

PLUG,Sq Hd, 1/4"-18 NPTF

pipe (1/4" NPT) Gas tank plugs

3шт.
