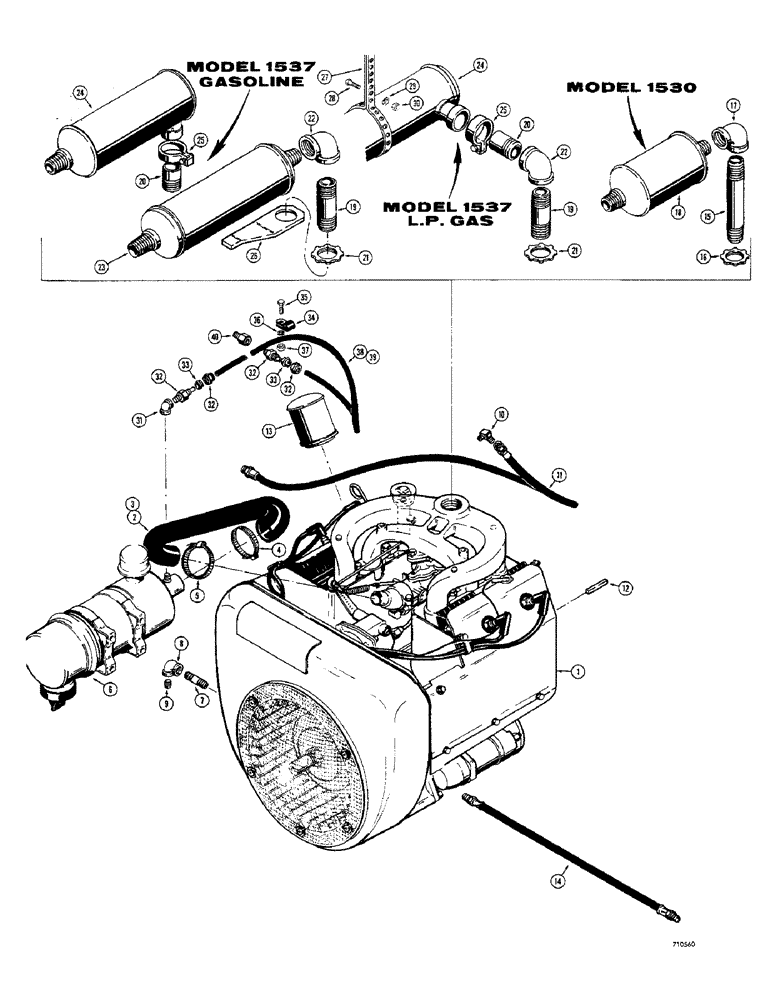

Запчасти Case 1500-SERIES (010) - WISCONSIN GASOLINE ENGINE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
ENGINE - 30 H.P., VH4D Wisconsin (1530) Spec. #322381, 336019 & 342940
1шт.
Refer to Wisconsin Engine Manual for engine service and parts, including starters and generators.
1шт.
1
REF
INSTRUCTION
ENGINE - 37 H.P., VG4D Wisconsin (1537) Spec. #322382, 336017 & 343756
1шт.
Refer to Wisconsin Engine Manual for engine service and parts, including starters and generators.
1шт.
2
T40360
SPARE PART air intake, Serial Range: -9813801
1шт.
3
T41633
HOSE
air intake, When stock is exhausted, order D52846 hose, Start Serial: 9813801
1шт.
3
D52846
INTAKE AIR HOSE,1.56" ID, 2.06" ID x 8.50", SAE 10R4 Class SC
, Start Serial: 9813801
1шт.
4
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
Hose to engine
1шт.
5
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
Hose to air cleaner
1шт.
6
REF
INSTRUCTION
AIR CLEANER - see Figs.14 and 16
1шт.
7
221-164
FITTING,Nipple, 3/8" NPT x 2"
NIPPLE - pipe (3/8" NPT x 2") 1530 only
1шт.
7
221-190
PIPE,Nipple, 1/2" NPT x 2"
NIPPLE - pipe (1/2" NPT x 2") 1537 only
1шт.
8
221-376
ELBOW,90 Degree, 3/8" NPT
ELBOW - pipe, 90 degrees (3/8" NPT) 1530 only
1шт.
8
221-377
ELBOW,90 Degree, 1/2" NPT
pipe, 90 degrees (1/2" NPT) 1537 only
1шт.
9
221-33
OILER FABRIC,Sq Soc, 3/8"-18 NPTF
PLUG - pipe, sq. hd. (3/8" NPT) 1530 only
1шт.
9
221-34
DRAIN PLUG,Hex Soc, 1/2"-14, NPTF
pipe, sq. hd. (1/2" NPT) 1537 only
1шт.
10
218-532
ELBOW,45 Degree, 1/2-20" 37 Degree x 1/8"-27, NPTF
male, 45 degrees
1шт.
11
T40321
SPARE PART gas line
1шт.
12
A26494
SPARE PART 3/8" square x 2"
1шт.
13
T40475
FILTER, ENGINE OIL
FILTER, OIL engine oil
1шт.
14
T41162
HOSE ASSY.
fuel equalizer, 3/8" I.D. x 32-3/4"
1шт.
15
221-270
FITTING
NIPPLE - pipe (1-1/4" NPT x 6"), model 1530 exhaust system
1шт.
16
223-204
SPARE PART 1-1/4" threads, model 1530 exhaust system
1шт.
17
221-380
ELBOW,90 Degree, 1 1/4" NPT
ELBOW - pipe, 90 degrees (1-1/4" NPT), model 1530 exhaust system
1шт.
18
T40246
MUFFLER
standard, early production (When stock is exhausted, order T41639 muffler), model 1530 exhaust system
1шт.
18
T41639
MUFFLER
standard, late production, model 1530 exhaust system
1шт.
18
T40659
SPARE PART spark arresting, model 1530 exhaust system
1шт.
19
221-285
NIPPLE - pipe (1-1/2" NPT x 2-1/2") If used, model 1537 exhaust system
1шт.
20
T42365
PIPE
exhaust (1-1/2" NPT) If used, model 1537 system
1шт.
21
223-205
LOCK NUT
1-1/2" threads, model 1537 exhaust system
1шт.
22
221-396
FITTING
ELBOW - pipe, 90 degrees (1-1/2" NPT) If used, model 1537 exhaust system
1шт.
23
T40322
MUFFLER
standard, early production (When stock is exhausted, order (1) T42358 muffler and (1) T42365 exhaust pipe), model 1537 exhaust system
1шт.
23
T40662
MUFFLER
spark arresting, model 1537 exhaust system
1шт.
24
T42358
MUFFLER
standard, late production, model 1537 exhaust system, Incl. Ref 25
1шт.
25
214-270
HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm
T42358 muffler, model 1537 exhaust system
1шт.
26
T42364
SUPPORT - muffler (Used before SN. 9814401), model 1537 exhaust system
1шт.
27
T42257
BRACKET
STRAP - muffler support, L.P. gas models only, model 1537 exhaust system
1шт.
28
131-3
LOCK NUT,5/16"-24, GB
HHCS - 1/4" - 20 NC x 3/4" (Zinc plated), model 1537 exhaust system
2шт.
29
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
Model 1537 exhaust system
2шт.
30
7770
NUT,Hex, 1/4 - 20, Cl 5
Model 1537 exhaust system
2шт.
31
221-743
ADAPTER
ELBOW - 90 degrees, female
1шт.
32
T41373
SPARE PART tube, male, Incl. Ref 33
2шт.
33
T41372
SLEEVE - connector
1шт.
34
49852
PTO SHAFT
tube
1шт.
35
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
36
92-5
LOCK WASHER,5/16"
1шт.
37
9635082
NUT,5/16" - 18, Gr 5
1шт.
38
T41371
TUBE,0.375" OD x 38" L
crankcase vent, Serial Range: -9813801
1шт.
39
T41655
SPARE PART crankcase vent, Start Serial: 9813801
1шт.
40
222-746
SPARE PART ADAPTER - straight, Serial Range: tube-pipe
1шт.
Выбрано товаров: 50
