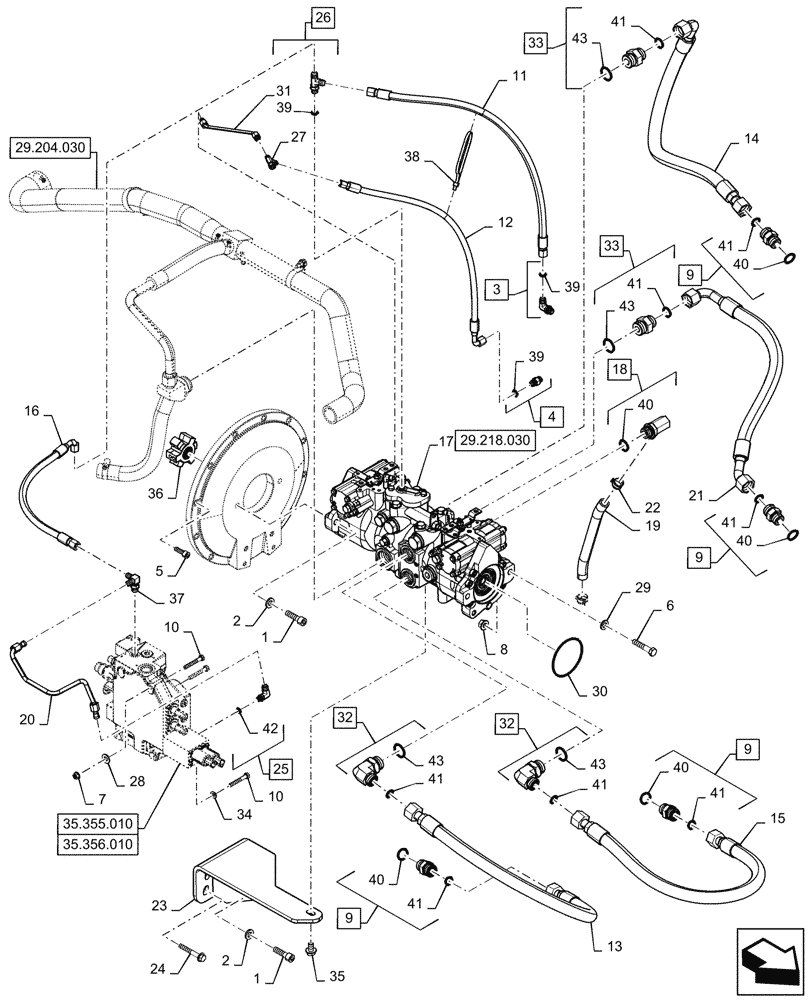

Запчасти Case SV340 (29.204.020[01]) - HYDROSTATIC PUMP, DRIVE LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE

1

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

4шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 39

1шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 39

1шт.

5

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

6

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

8

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

9

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 40, 41

4шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

11

84257174

HOSE ASSY.,9.53mm ID x 765mm L, SAE 100R17

Tandem Pump to Brake Valve

1шт.

12

84257175

HOSE ASSY.,6.35mm ID x 650mm L, SAE 100R17

Tandem Pump to Brake Valve

1шт.

13

84258846

FLEXIBLE HOSE,19.05mm ID x 835mm L, SAE 100R19

Tandem Pump to RH Hydrostatic Motor

1шт.

14

84258848

FLEXIBLE HOSE,19.05mm ID x 896mm L, SAE 100R19

Tandem Pump to LH Hydrostatic Motor

1шт.

15

84258856

FLEXIBLE HOSE,19.05mm ID x 867mm L, SAE 100R19

Tandem Pump to RH Hydrostatic Motor

1шт.

16

84259516

FLEXIBLE HOSE,9.53mm ID x 482.3mm L, SAE 100R17

Tandem Pump to Loader Valve Interlock

1шт.

17

84262356

PUMP,Tandem, 46 CC

Hydrostatic, Tandem

1шт.

18

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

Incl 40

1шт.

19

84273646

HOSE,15.88mm ID x 304.8mm L

1шт.

20

84373389

RIGID TUBE,9.53mm OD

1шт.

21

84467700

FLEXIBLE HOSE,19.05mm ID x 664mm L, SAE 100R19

Tandem Pump to LH Hydrostatic Motor

1шт.

22

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

23

84560744

MOUNT

Pump Support, Gray

1шт.

24

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

25

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 42

1шт.

26

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 39

1шт.

27

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

28

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

29

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

30

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

31

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

32

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 41, 43

2шт.

33

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 41, 43

2шт.

34

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

35

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

36

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

37

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

40

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5шт.

41

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

42

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

43

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.
