Запчасти Case SV340 (90.100.020) - HOOD & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

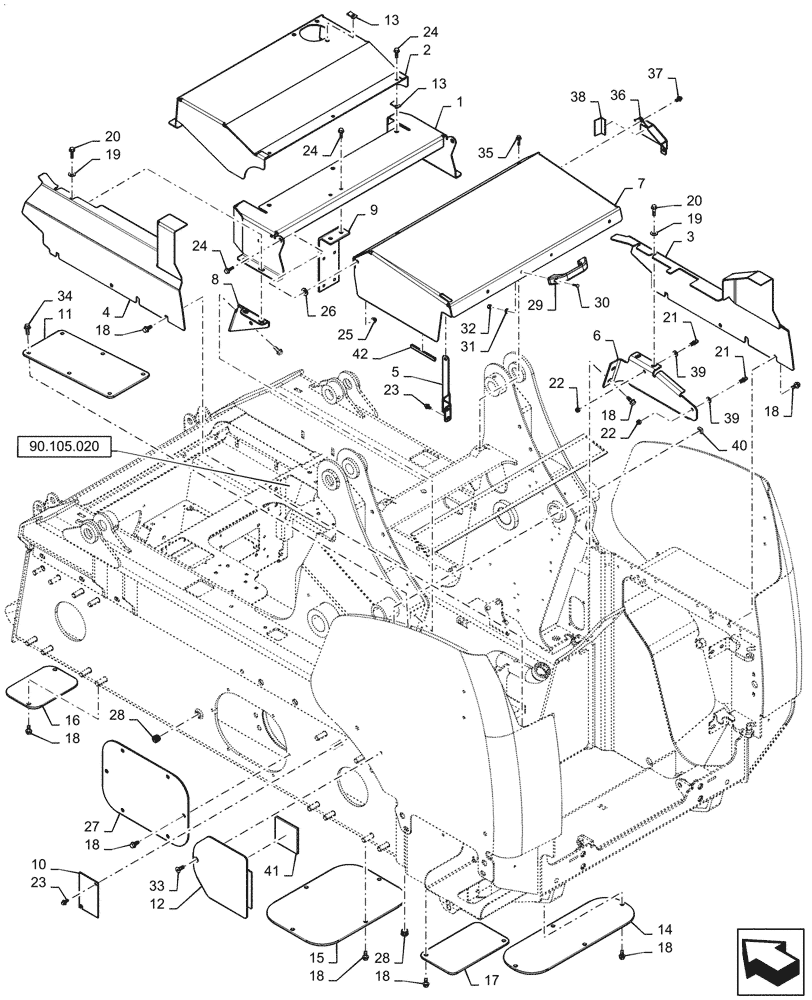

Схема запчастей Case SV340 - (90.100.020) - HOOD & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.020
4
23
19
17
21
32
18
19
30
42
24
2
22
36
23
18
20
18
10
40
18
28
20
11
28
9
13
39
39
35
26
12
33
25
8
22
37
18
41
18
29
27
18
13
5
24
18
14
24
38
7
1
3
21
15
6
16
31
34

Артикул

Название

Примечание

Количество

1

47645339

PANEL

Rear Deck Assy

1шт.

2

47707762

ANGLE

Rear Deck

1шт.

3

47942967

PANEL

RH Cover

1шт.

4

47942977

PANEL

LH Cover

1шт.

5

47709994

ANGLE

Hood Lock Tab

1шт.

6

47727083

ANGLE

Cover Mounting

1шт.

7

47727028

HOOD

Tilt Hood

1шт.

8

47683853

ANGLE

Cover Mounting

1шт.

9

47606529

BRACKET

Air Cleaner Mounting

1шт.

10

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

Cover

2шт.

11

47747039

COVER

DEF Tank Access

1шт.

12

47822447

ACCESS COVER

Battery

1шт.

13

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

10шт.

14

47717894

PLATE,524.6mm L x 174.6mm W x 6.35mm Thk

Gray

1шт.

15

47717914

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

Gray

1шт.

16

47717905

PLATE,225mm L x 150mm W x 6.35mm Thk

Gray

1шт.

17

47717909

PLATE,275mm L x 160mm W x 6.35mm Thk

Gray

1шт.

18

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

32шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

20

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

21

189609A1

BALL STUD,M8 x 1.25

, Years: -13-OCT-16

2шт.

21

47974869

BALL STUD,M8 x 1.25 x 32.2mm L, 10mm Ball OD

, Start Year: 14-OCT-16

2шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

23

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

24

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

25

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

26

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

27

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

28

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

29

406256A1

HANDLE

Rear Hood

1шт.

30

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

31

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

32

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

33

393698

SCREW,FLAT, M10 x 25mm, Cl 8.8

1шт.

34

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

6шт.

35

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

36

47730747

BRACKET

Strut Cover

1шт.

37

87752074

SCREW,HWH, M8 x 1.25 x 16mm

2шт.

38

47479871

SEAL,Bulk, 30480mm L

Cut to Length, 60mm L

1шт.

39

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

40

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

41

47765854

FOAM,101.6mm L x 101.6mm W

Battery Retainer

1шт.

42

87702286

TRIM,Bulk, 1/8" x 30480mm L

Cut to Length, 220mm L

1шт.

Выбрано товаров: 43
