Запчасти Case SV340 (82.300.010) - MANUAL RELEASE COUPLER (82) - FRONT LOADER & BUCKET

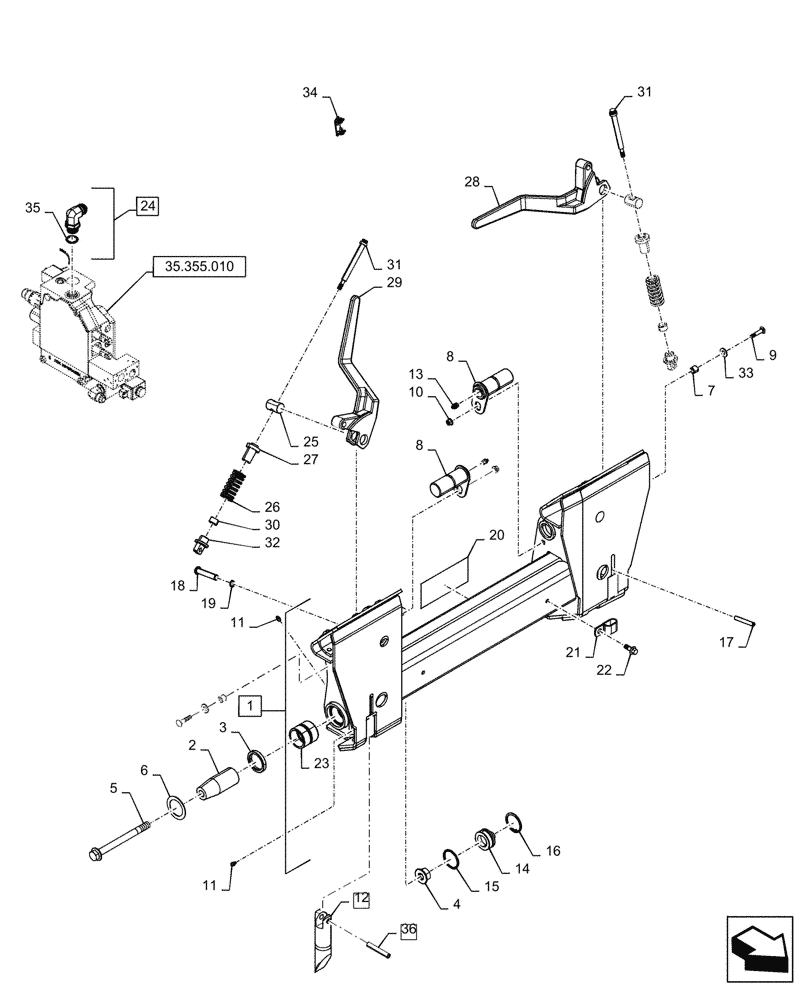

Схема запчастей Case SV340 - (82.300.010) - MANUAL RELEASE COUPLER (82) - FRONT LOADER & BUCKET
35.355.010
33
32
3
29
20
31
28
13
17
21
14
5
19
27
16
12
34
15
11
2
8
26
8
11
24
35
1
36
23
25
10
4
9
18
22
6
7
31
30

Артикул

Название

Примечание

Количество

1

47550001

KIT

Coupler Frame, Gray W/ Decals, Incl 20 - 23

1шт.

2

47899093

PIN,109.51mm L x 44.2mm OD

Boom to Coupler

2шт.

3

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

2шт.

4

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

5

87015924

BOLT,Hex, M16 x 180mm, Cl 10.9

2шт.

6

87613203

WASHER,1.78" ID x 2.5" OD x 0.06" Thk

2шт.

7

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

8

47687653

PIN,38.15mm OD x 95mm L

2шт.

9

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

10

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

11

87414

LUBE NIPPLE,1/4" - 28

4шт.

12

87758365

PIN,31.75mm OD x 142.3mm L

Latch

2шт.

13

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

14

47751768

PLUG,49.45mm OD x 35mm H

2шт.

15

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

2шт.

16

86639140

SNAP RING,M50, Int

2шт.

17

86624093

PIN,9.53mm OD x 63.5mm L

2шт.

18

87387540

PIN,12.7mm OD x 67.55mm L

Handle Pivot

2шт.

19

87612753

RETAINER,#50, 0.46", Ext

2шт.

20

84367561

WARNING DECAL

Crush Hazard

1шт.

21

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

1шт.

22

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

1шт.

23

47777377

BUSHING,44.79mm ID x 54.15mm OD x 22.3mm L

Coupler Pin

4шт.

24

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 35

1шт.

25

9829733

PIN,25.4mm OD x 39mm L

2шт.

26

84218843

COMPRESSION SPRING,36.6mm OD x 101.6mm L

2шт.

27

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

28

86633195

HANDLE

LH

1шт.

29

86633196

HANDLE

RH

1шт.

30

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

Bushing

2шт.

31

87533223

12 PT SCREW,3/8" - 16 x 5", Gr 8

2шт.

32

87579303

PIN,34.92mm OD x 43.6mm L

2шт.

33

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

34

126844A1

PLUG,1.427” x .62” , Plastic

Hydraulic Coupler Switch

1шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

86624093

PIN,9.53mm OD x 63.5mm L

2шт.

Выбрано товаров: 36
