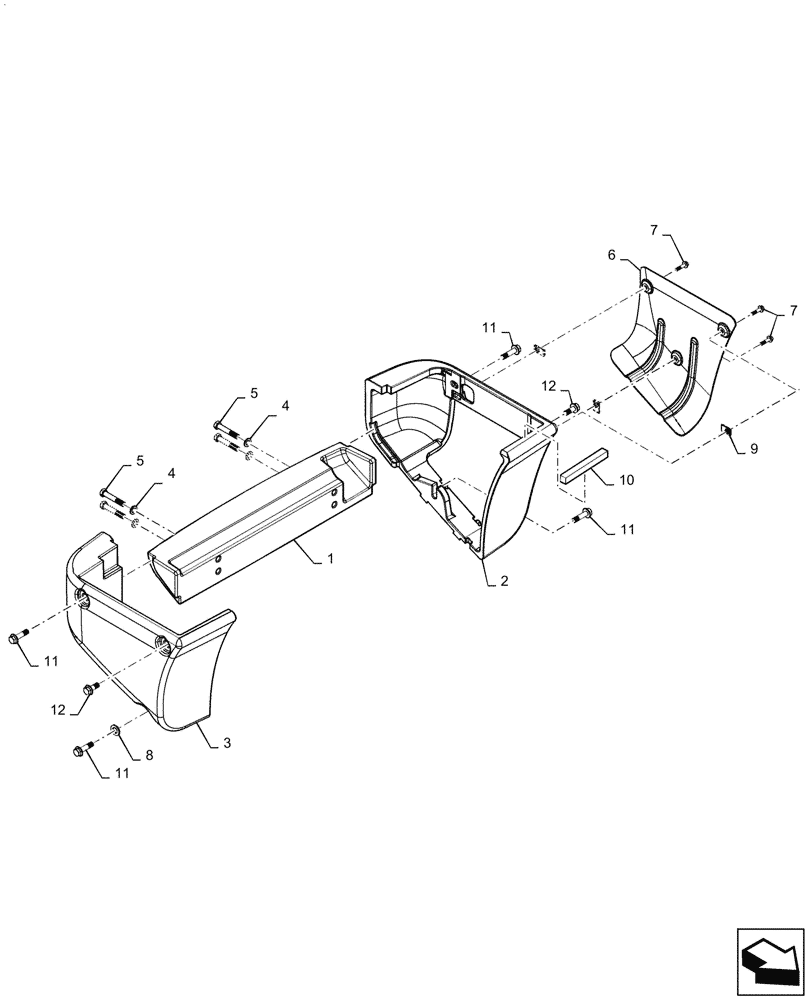

Запчасти Case SV340 (39.140.010[01]) - LIGHT, COUNTERWEIGHT (39) - FRAMES AND BALLASTING

1

47905475

BUMPER

Rear, Gray

1шт.

2

47905477

BUMPER

LH, Gray

1шт.

3

47905861

BUMPER

RH, Gray

1шт.

4

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

5

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

4шт.

6

47905476

COVER

Battery Compartment, Gray

1шт.

7

9804263

BOLT,M10 x 49.2mm, Cl 8.8

3шт.

8

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

9

84522379

SPRING NUT,M10 x 1.5

3шт.

10

84355546

FOAM INSULATION,215mm L

Strip

1шт.

11

87675533

BOLT,M16 x 75.4mm, Cl 10.9

4шт.

12

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

2шт.
