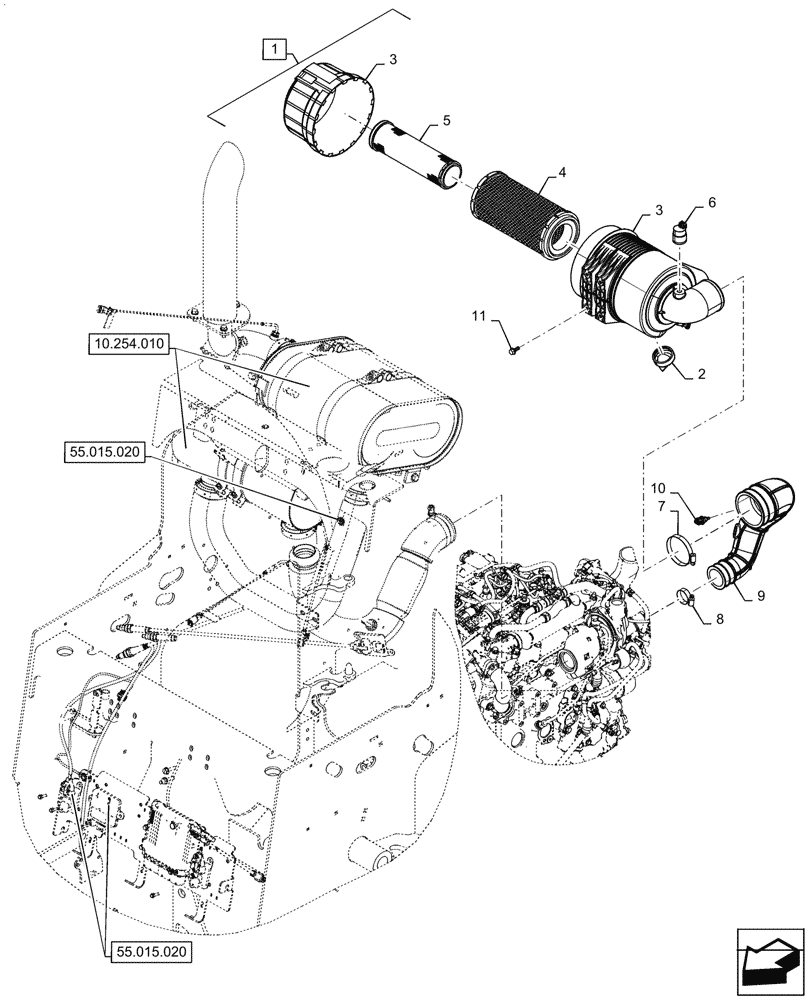

Запчасти Case SV340 (10.202.010) - AIR CLEANER & INTAKE COMPONENTS (10) - ENGINE

1

47477401

CLEANER,8in

Air, Assy, Incl 2 - 6

1шт.

2

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Vacuator

1шт.

3

395792A1

COVER ASSY

Filter

1шт.

4

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

5

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

6

84552308

SENSOR

Air Filter Restriction Indicator

1шт.

Connects to the Main Chassis Harness

1шт.

7

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

8

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

9

47713705

HOSE

Air Intake

1шт.

10

84539252

SENSOR

Intake Air Tempurature

1шт.

Connects to the Main Chassis Harness

1шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
