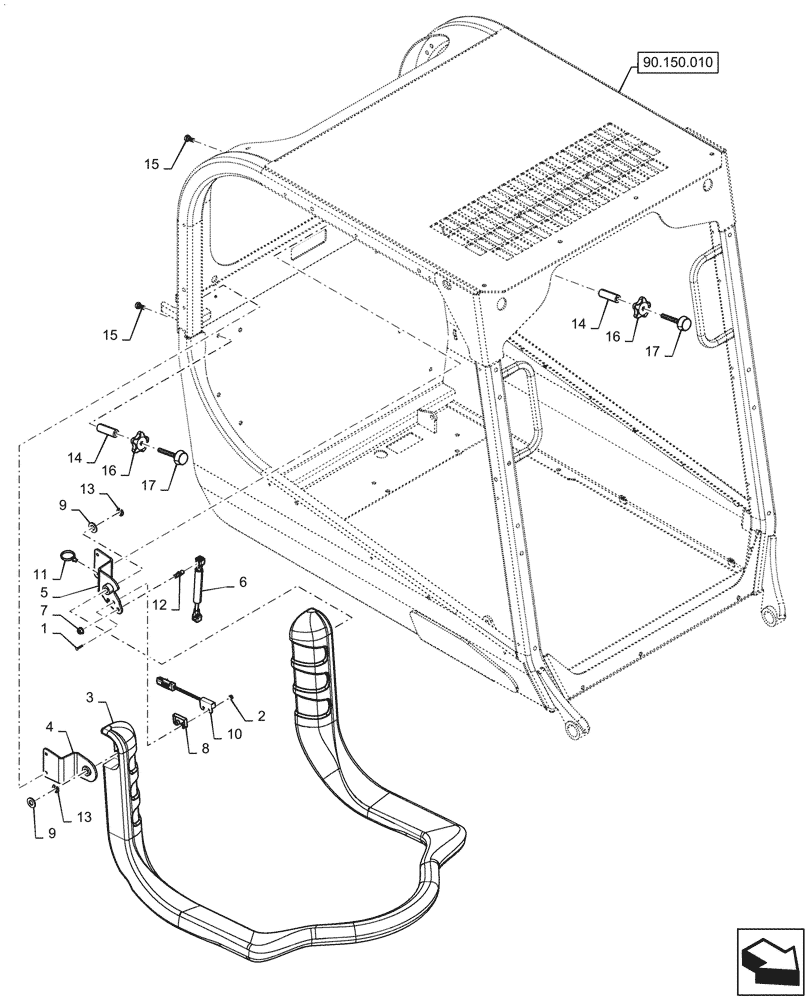

Запчасти Case SV340 (90.114.010) - LAP BAR & COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

43646

SCREW,Phillips Drive, Flat HD, M4 x 20mm, Cl 4.8

2шт.

2

385681

NUT,M4 x 0.7, Cl 8

2шт.

3

84201339

BAR

Foam Rubber Coating

1шт.

4

84239191

BRACKET, PIVOT

LH, Gray

1шт.

5

84239192

BRACKET, PIVOT

RH, Gray

1шт.

6

84371064

GAS STRUT,180mm Extended, 148.74mm Compressed

Spring, Lap Bar Assist

1шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

8

86624468

SPACER,1.65" L x 5/16” Thk

1шт.

9

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

10

87392235

SENSOR

Reed Switch, Non-Contact, Normally Open

1шт.

11

87668737

CABLE TIE,203.2mm L, Nylon, Black

1шт.

12

189609A1

BALL STUD,M8 x 1.25

2шт.

13

D143415

SNAP RING,0.50” ID, Klipring

1/2"

2шт.

14

84385623

MOUNT

Lap Bar Stop

2шт.

15

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

16

87639912

KNOB

3/8" Star

2шт.

17

87639914

STOP

Seat Bar Pivot, 88.7mm Oal , 37.3mm OD

2шт.
