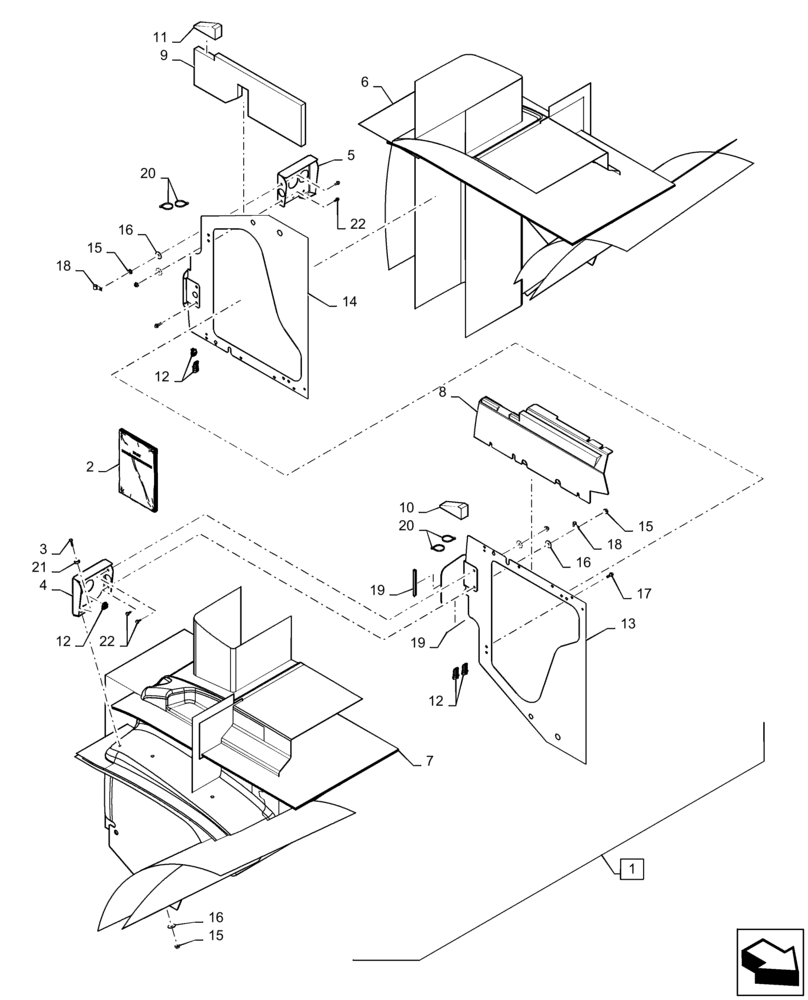

Запчасти Case SV340 (88.100.55[13]) - DIA KIT, WIDE BUCKET LAMP (88) - ACCESSORIES

1

47571936

KIT

Wide Bucket, EU Lights, Incl 2 - 22

1шт.

2

47571952

INSTRUCTION

Sheet

1шт.

3

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

4

47472891

BRACKET

RH, Rear Light

1шт.

5

47472892

BRACKET

LH, Rear Light

1шт.

6

47545570

COVER

LH

1шт.

7

47545573

COVER

RH

1шт.

8

84372982

FOAM INSULATION

Tower, RH

1шт.

9

84372983

FOAM INSULATION

Tower, LH

1шт.

10

84372986

FOAM INSULATION

Hood Top, LH, Years: -08-JAN-17

1шт.

10

84366326

FOAM INSULATION

Hood Top, LH, Start Year: 09-JAN-17

1шт.

11

84372987

FOAM INSULATION

Hood Top, RH, Years: -08-JAN-17

1шт.

11

84366329

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

Hood Top, RH, Start Year: 09-JAN-17

1шт.

12

84540369

WIRE HARNESS

Jumper, EU

2шт.

13

84541176

BRACKET

Light

2шт.

14

84545943

BRACKET

Light

1шт.

15

86619800

FLANGE NUT,M6 x 1, Cl 8

6шт.

16

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

6шт.

17

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

4шт.

18

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

19

87702286

TRIM,Bulk, 1/8" x 30480mm L

Edge Channel, Cut to Length, 250mm

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

21

5093041

RUBBER BUSHING,9mm ID x 20mm OD x 6.8mm L

Spacer

2шт.

22

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.
