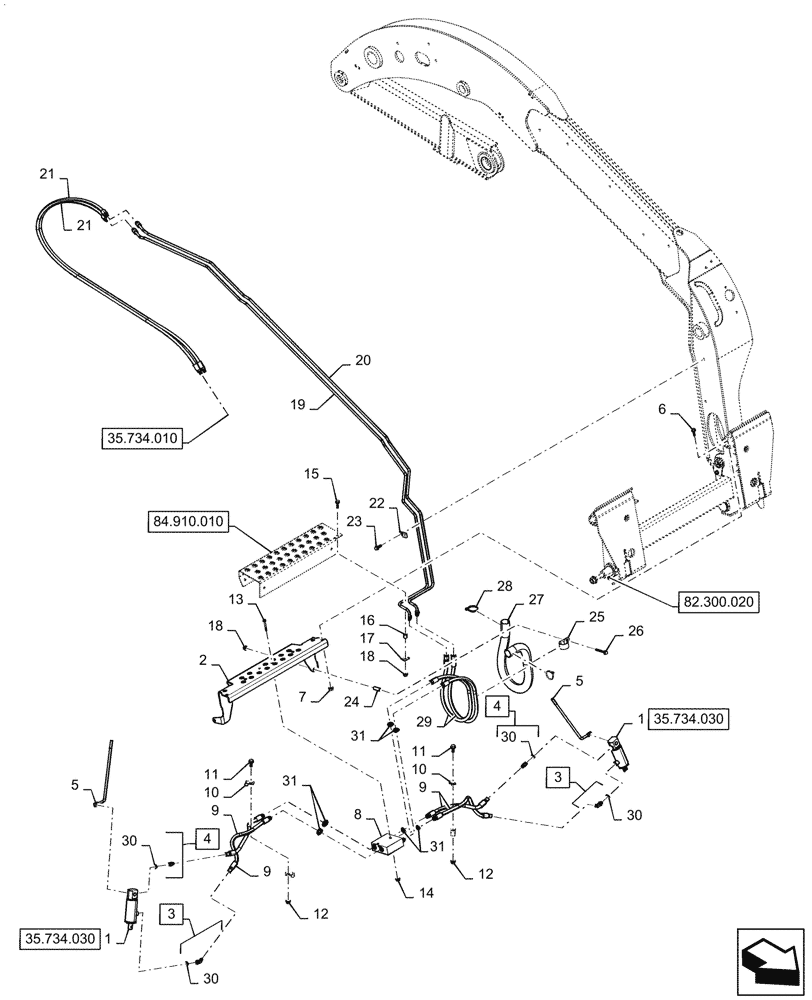

Запчасти Case SV340 (35.734.020) - HYDRAULIC RELEASE COUPLER, BOOM PLUMBING (35) - HYDRAULIC SYSTEMS

1

47647520

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 48.1mm Stroke

Coupler

2шт.

2

47945302

STEP

Hydraulic Coupler Cover, Gray

1шт.

3

86512993

ELBOW,45 Degree, 7/16" - 20 JIC x 7/16" - 20 ORB

Incl 30

2шт.

4

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl 30

2шт.

5

47600574

ROD,275mm L

Position Indicator

2шт.

6

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

8

47964620

HYDRAULIC VALVE

Check

1шт.

9

47947213

HYDRAULIC HOSE,6.3mm ID x 357mm L, SAE 100R16

Coupler Cylinder

4шт.

10

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

11

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

12

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

13

87026500

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

15

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

16

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

1шт.

17

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

47651604

HYD TUBE

9.52mm OD x 2106.6mm L, Boom Arm

1шт.

20

47651607

HYD TUBE

9.52mm OD x 2090.2mm L, Boom Arm

1шт.

21

47651804

HYDRAULIC HOSE,6.3mm ID x 1845mm L, SAE 100R19

2шт.

22

605025

CLAMP,3/8", Coated, 3/8" Bolt

1шт.

23

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

24

87698776

SPACER,8.48mm ID x 12.7mm OD x 36.5mm L

1шт.

25

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

26

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

27

47401099

HOSE,36.1mm ID x 825mm L

1шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

29

47984500

HYDRAULIC HOSE,6.3mm ID x 870mm L, SAE 100R19

2шт.

30

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

31

89617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.
