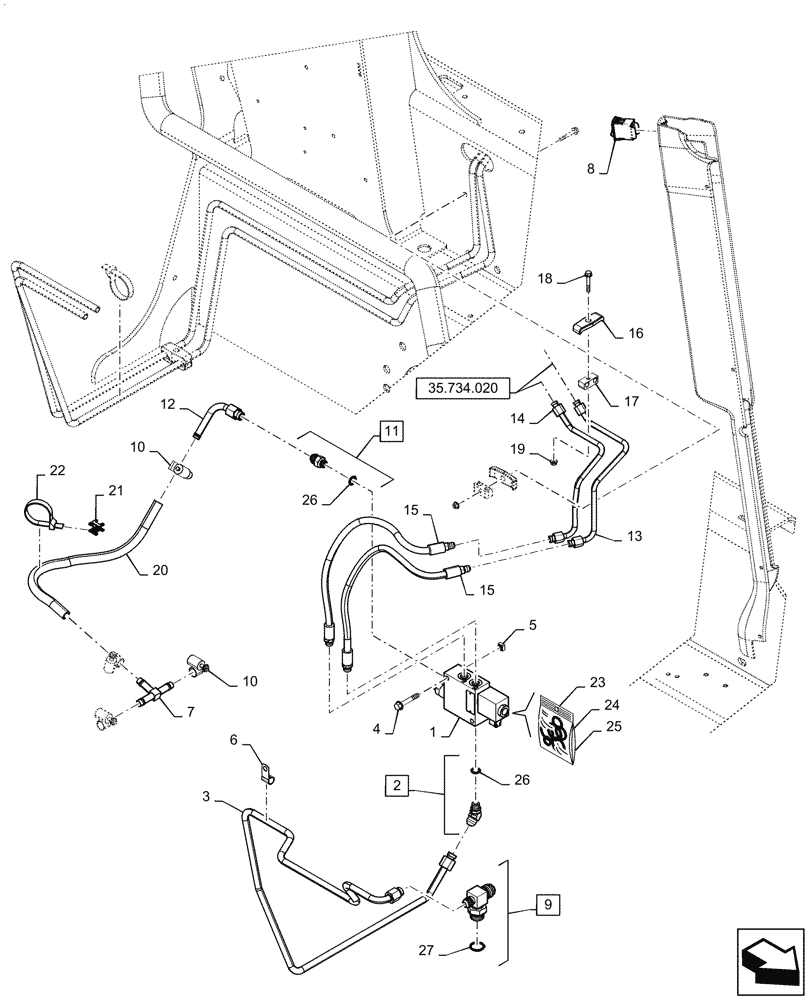

Запчасти Case SV340 (35.734.010) - HYDRAULIC RELEASE COUPLER, CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS

1

47647507

HYDRAULIC VALVE

Coupler, 238 Bar

1шт.

2

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl 26

1шт.

3

47651048

HYD TUBE

12.7mm OD

1шт.

4

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

5

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

6

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

7

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

8

84251346

SWITCH

Rocker, Hydraulic Coupler

1шт.

9

84546403

BRANCH TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 3/4" - 16 JIC

Incl 27

1шт.

10

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

11

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 26

1шт.

12

47978514

TUBE

Bead Adapter

1шт.

13

47651600

HYD TUBE

9.53mm OD, Hydraulic Coupler Chassis

1шт.

14

47651602

HYD TUBE

9.53mm OD, Hydraulic Coupler Chassis

1шт.

15

47651800

HYDRAULIC HOSE,6.3mm ID x 565mm L, SAE 100R19

2шт.

16

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

17

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

2шт.

18

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

19

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

20

47997436

HYDRAULIC HOSE,12.5mm ID x 440mm L

Coupler Drain

1шт.

21

84318895

SPACER,17.97mm H

1шт.

22

86991009

CABLE TIE,222mm L, Nylon

2шт.

23

84390143

COIL

Hydraulic Coupler, Services 1

1шт.

24

84304580

HYDRAULIC VALVE

Hydraulic Coupler Spool, Services 1

1шт.

25

84304584

SEAL KIT

Hydraulic Coupler Valve, Services 1

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
