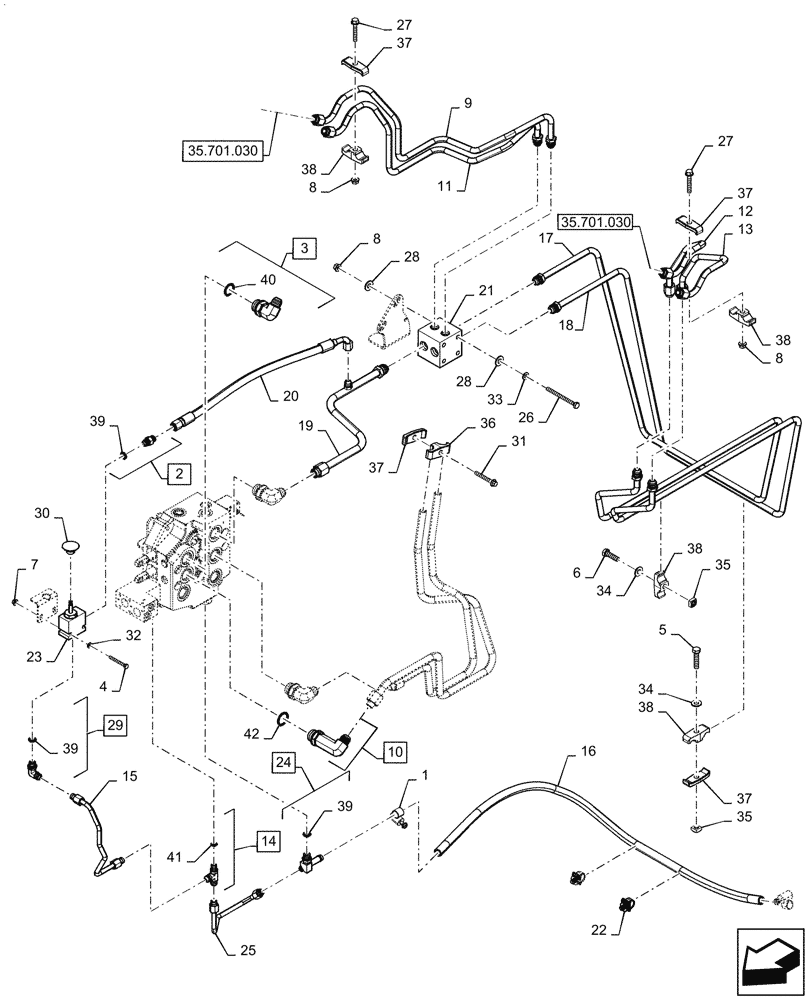

Запчасти Case SV340 (35.701.040) - LOADER VALVE LINES (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 39, Years: -30-JAN-17

1шт.

2

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 39, Start Year: 31-JAN-17

1шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 40

3шт.

Connects to Self Level Option

1шт.

4

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

5

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

47647521

HYD TUBE

12.7mm OD, Lower, Manifold to RH Arm

1шт.

10

47647779

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 42

1шт.

Connects to Self Level Option

1шт.

11

47651011

HYD TUBE

12.7mm OD, Lift, Manifold to RH Arm

1шт.

12

47651023

HYD TUBE

12.7mm OD, Lift, LH Fender

1шт.

13

47651026

HYD TUBE

12.7mm OD, Lower, LH Fender

1шт.

14

47728111

HOSE FITTING,1/2" X 1/2" Barb X 7/16" - 20 ORB

Incl 41, Years: -02-OCT-16

1шт.

14

47451735

TEE,3/8” JIC x 1/4” ORB x 3/8” JIC

, Start Year: 03-OCT-16

1шт.

15

47735103

HOSE,12.7mm ID X 510mm L

Override to Aux Drain, Years: -02-OCT-16

1шт.

15

47976179

HYD TUBE

Override to Aux Drain, Start Year: 03-OCT-16

1шт.

16

47735108

HOSE,12.7mm ID X 1060mm L

Aux Drain to Drain Manifold

1шт.

17

47896545

TUBE

12.7mm OD, Lift, Manifold to LH Arm

1шт.

18

47896546

TUBE

12.7mm OD, Lower, Manifold to LH Arm

1шт.

19

84181021

RIGID TUBE

15.875mm OD, Lift, Valve to Manifold

1шт.

20

84201224

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

Assy, Override, Years: -30-JAN-17

1шт.

20

48093517

Assy, Override, Start Year: 31-JAN-17

HYDRAULIC HOSE,6.3mm ID x 535mm L, SAE 100R16

1шт.

21

84258823

HYDRAULIC MANIFOLD

Block

1шт.

22

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

23

84294239

VALVE

Boom Override

1шт.

24

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

Incl 39

1шт.

25

84373394

HOSE,12.7mm ID x 410mm L

EH Aux to EH Drain

1шт.

26

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

27

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

28

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

29

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 39

1шт.

30

87522292

KNOB

38.4mm OD, Override Valve

1шт.

31

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

2шт.

32

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

33

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

34

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

35

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

36

D120613

CLAMP,20mm ID

2шт.

37

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

5шт.

38

D120679

CLAMP,Tube, 1/2"

4шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

40

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

41

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

42

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
