(35.525.040) - AUXILIARY HYDRAULIC DRAIN PLUMBING

Запчасти Case SV340 (35.525.040) - AUXILIARY HYDRAULIC DRAIN PLUMBING (35) - HYDRAULIC SYSTEMS

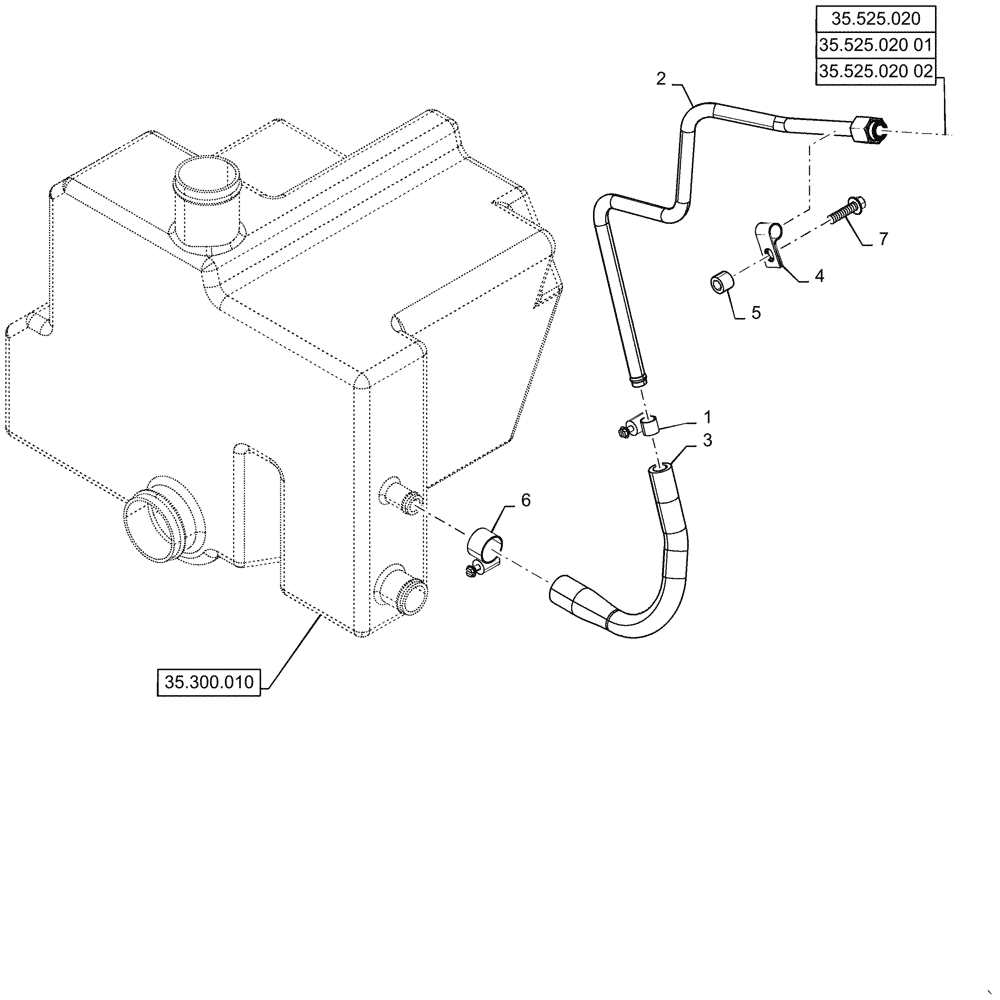

Схема запчастей Case SV340 - (35.525.040) - AUXILIARY HYDRAULIC DRAIN PLUMBING (35) - HYDRAULIC SYSTEMS
35.525.020
6
5
3
7
1
4
2
35.525.020 01
35.525.020 02
35.525.020 01
35.300.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

1шт.

2

47606591

TUBE

12.7mm OD, Case Drain

1шт.

3

47606593

TUBE

Hose, Case Drain to Tank

1шт.

4

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

6

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

7

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.
