Запчасти Case SV340 (35.525.030[01]) - HIGH FLOW AUXILIARY HYDRAULIC, GEAR PUMP (35) - HYDRAULIC SYSTEMS

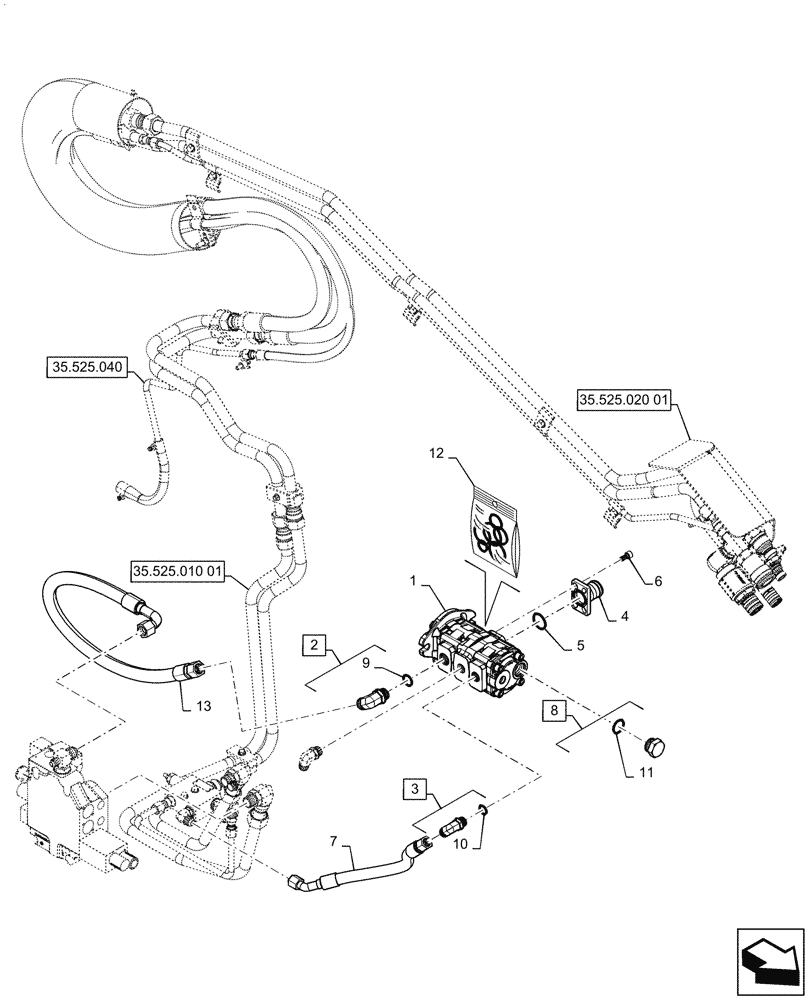

Схема запчастей Case SV340 - (35.525.030[01]) - HIGH FLOW AUXILIARY HYDRAULIC, GEAR PUMP (35) - HYDRAULIC SYSTEMS
35.525.040
10
2
7
4
3
11
1
6
9
5
13
12
8
35.525.020 01
35.525.010 01

Артикул

Название

Примечание

Количество

1

47647514

PUMP,HF Gear, 36.5CC/23.3CC

1шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 9

1шт.

3

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 10

1шт.

4

84269151

FITTING

Gear Pump Suction

1шт.

5

274754

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

6

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

7

47656125

HOSE,16mm ID x 420mm L, SAE 100R16

High Flow Supply

1шт.

8

273916

PLUG,Hex, 1-5/16" - 12 ORB

Incl 11

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

47875130

SEAL KIT

Gear Pump, Services 1

1шт.

13

47668830

HOSE,1030mm L, SAE 100R19

Hydraulic Valve Supply

1шт.

Выбрано товаров: 13
