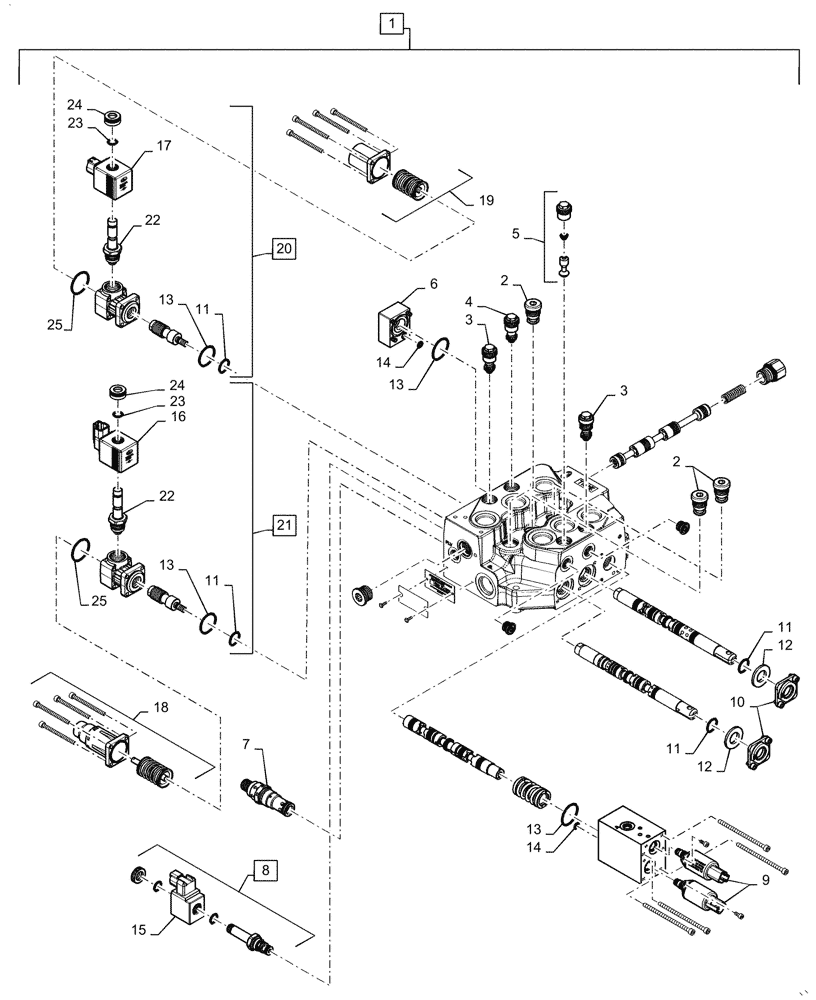

Запчасти Case SV340 (35.356.010) - FOOT CONTROL VALVE, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS

1

47647501

VALVE

Mechanical Foot Control, EH Aux, Incl 2 - 25

1шт.

2

84386281

CHECK VALVE

Load

3шт.

3

47944285

VALVE PRESSURE RELIE

250 Bar

2шт.

4

47944662

VALVE PRESSURE RELIE

270 Bar

1шт.

5

84386285

HYDRAULIC VALVE

Anti-Cavitation

1шт.

6

84386286

CAP

EH Aux End

1шт.

7

47944287

VALVE PRESSURE RELIE

238 Bar, Main Relief

1шт.

8

84386288

HYDRAULIC VALVE

PLV Cartridge, Incl 15

1шт.

9

84386289

VALVE, PRESSURE CONT

Pressure Reducing

2шт.

10

84386290

KIT

Spool Wiper

2шт.

11

84386291

O-RING

Spool

4шт.

12

84386292

BACK-UP RING

Spool

2шт.

13

84386293

O-RING

EH Spool Cap

4шт.

14

84386294

O-RING

EH Passage

2шт.

15

47876130

COIL

PLV

1шт.

16

47876131

COIL

Boom Spool Lock

1шт.

17

47876134

COIL

Bucket Spool Lock

1шт.

18

47876143

KIT

Boom Spool Lock

1шт.

19

47876144

KIT

Bucket Spool Lock

1шт.

20

47876126

KIT

Bucket Spool Lock, Incl 11, 13, 17, 22 - 24, 25

1шт.

21

47876127

KIT

Boom Spool Lock, Incl 11, 13, 16, 22 - 24, 25

1шт.

22

48018727

TUBE

Spool Lock

2шт.

23

48018682

O-RING

Seal

2шт.

24

48018736

TUBE NUT

Ring

2шт.

25

NSS

NOT SOLD SEPARAT

Oring, Included With 20, 21

2шт.
