Запчасти Case SV300 (88.100.01) - ENGINE ACCESSORIES EU/OPEN EU (SV250,SV300,TV380) (88) - ACCESSORIES

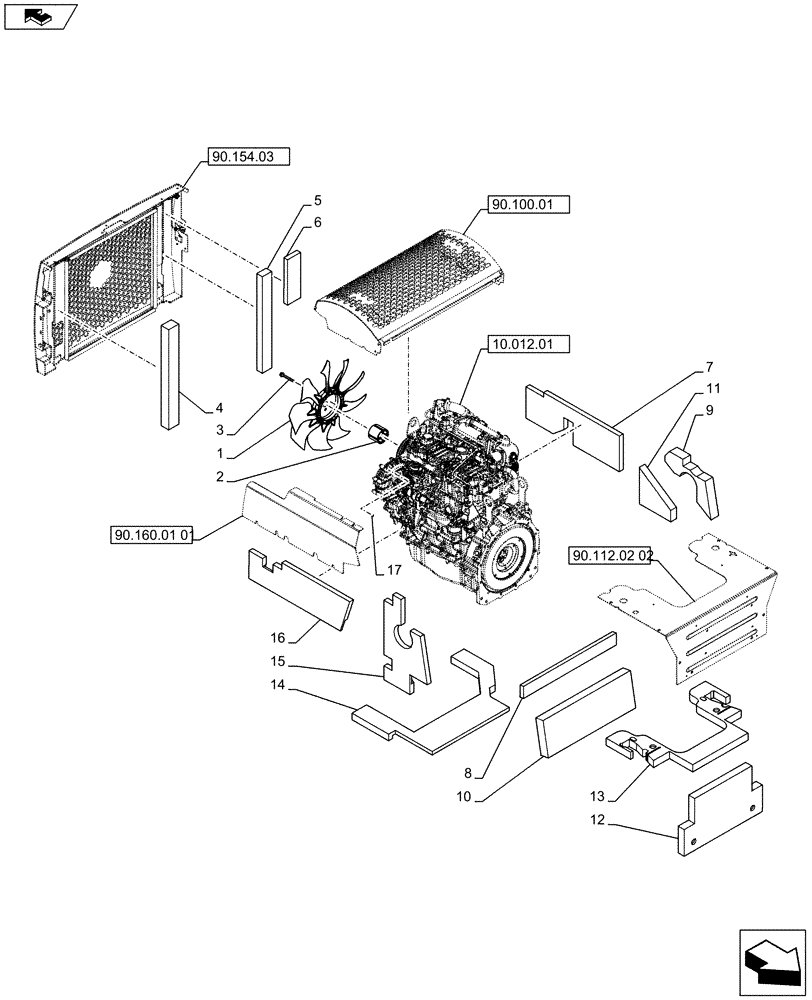

Схема запчастей Case SV300 - (88.100.01) - ENGINE ACCESSORIES EU/OPEN EU (SV250,SV300,TV380) (88) - ACCESSORIES
13
2
1
11
17
12
7
8
90.112.02 02
16
10
6
90.100.01
90.160.01 01
4
home
14
90.154.03
5
3
9
15
10.012.01

Артикул

Название

Примечание

Количество

1

84371085

FAN,9 Blades, 518mm OD

Clockwise Pusher

1шт.

2

84373345

SPACER

Fan 32/33MM

1шт.

3

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

4

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

Fan RH

1шт.

5

84372981

FOAM INSULATION

Fan

1шт.

6

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

7

84372983

FOAM INSULATION

LH Tower

1шт.

8

84362125

FOAM INSULATION

Crossmember; Used Only with Open Cab

1шт.

9

84372978

FOAM INSULATION

RH Tower

1шт.

10

NSS

NOT SOLD SEPARAT

Pad, Right Tower OBSOLETE - Not Used

1шт.

11

84372979

FOAM INSULATION

RH Tower

1шт.

12

84366353

FOAM INSULATION

Heel Plate Horizontal

1шт.

13

84366352

FOAM INSULATION

Heel Plate Vertical

1шт.

14

84372980

FOAM INSULATION

Rear Hood

1шт.

15

84372977

FOAM INSULATION

RH Tower

1шт.

16

84372982

FOAM INSULATION

RH Tower

1шт.

17

87461957

STOP

Stop

1шт.

18

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

Pad (Not Shown)

1шт.

19

84366326

FOAM INSULATION

Chassis RH (Not Shown)

1шт.

20

84366329

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

Chassis LH (Not Shown)

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

Tie (Not Shown)

2шт.

22

84372040

FOAM

Seat Pan (Not Shown)

1шт.

Выбрано товаров: 22
