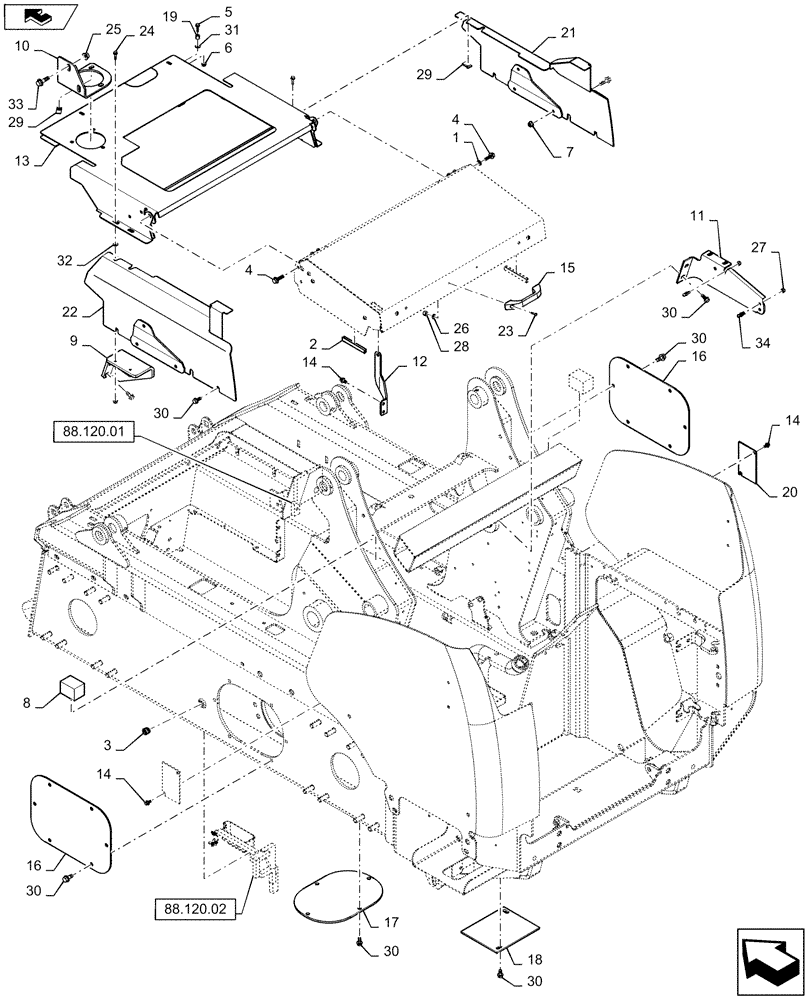

Запчасти Case SV300 (90.100.01[01]) - HOOD AND COVERS (SV300) AFTER AFTER FEB 13, 2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

2

291186

PROTECTION STRIP,9.9mm W

Edging

1шт.

3

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

4

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

, Years: -25-NOV-14

2шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

47357144

FOAM INSULATION,70mm L x 50.8mm W x 50.8mm H

Deck, Years: -27-JAN-14

2шт.

9

47430921

PLATE

Cover Mounting, Years: -25-NOV-14

1шт.

9

47670330

ANGLE

LH Cover Mounting, Start Year: 25-NOV-14

1шт.

10

47432047

PLATE

Exhaust Stack

1шт.

10

47461845

PLATE

Exhaust Stack, Start Year: 28-JAN-14

1шт.

11

47447666

ANGLE

Cover Mounting, Years: -25-NOV-14

1шт.

11

47670334

ANGLE

RH Cover Mounting, Start Year: 25-NOV-14

1шт.

12

47498985

ANGLE

Hood Lock Tab

1шт.

13

47553252

PANEL

Rear Deck

1шт.

13

47613344

PANEL

Rear Deck, Years: 28-JAN-14-25-NOV-14

1шт.

13

47671574

PANEL

Rear Deck, Start Year: 25-NOV-14

1шт.

14

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

15

406256A1

HANDLE

Rear Hood

1шт.

16

84421075

COVER PLATE

Chassis Access

2шт.

17

84299800

COVER PLATE

Chassis Access

1шт.

18

84299809

COVER PLATE

Plumbing Access

1шт.

19

254697A1

SPACER

Pivot, Spring, Years: -25-NOV-14

2шт.

19

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

Pivot, Spring, Start Year: 25-NOV-14

2шт.

20

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

Cover

2шт.

21

84601861

PANEL

Cover RH, Years: -25-NOV-14

1шт.

21

47675604

PANEL

Cover RH, Start Year: 25-NOV-14

1шт.

22

84601863

PANEL

Cover LH, Years: -25-NOV-14

1шт.

22

47675617

PANEL

Cover LH, Start Year: 25-NOV-14

1шт.

23

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

24

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

, Years: -25-NOV-14

2шт.

25

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

26

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

27

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

28

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

29

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

, Years: -25-NOV-14

5шт.

29

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

, Start Year: 25-NOV-14

7шт.

30

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

26шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

32

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

, Years: -25-NOV-14

4шт.

33

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

34

189609A1

BALL STUD,M8 x 1.25

2шт.

35

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

Not Illustrated, Start Year: 25-NOV-14

4шт.

36

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

Not Illustrated, Start Year: 25-NOV-14

2шт.
