Запчасти Case SV300 (29.204.AB[03]) - HYDROSTATIC PUMP, SUPPLY LINES, EH CONTROLS (SR220-SV300) (29) - HYDROSTATIC DRIVE

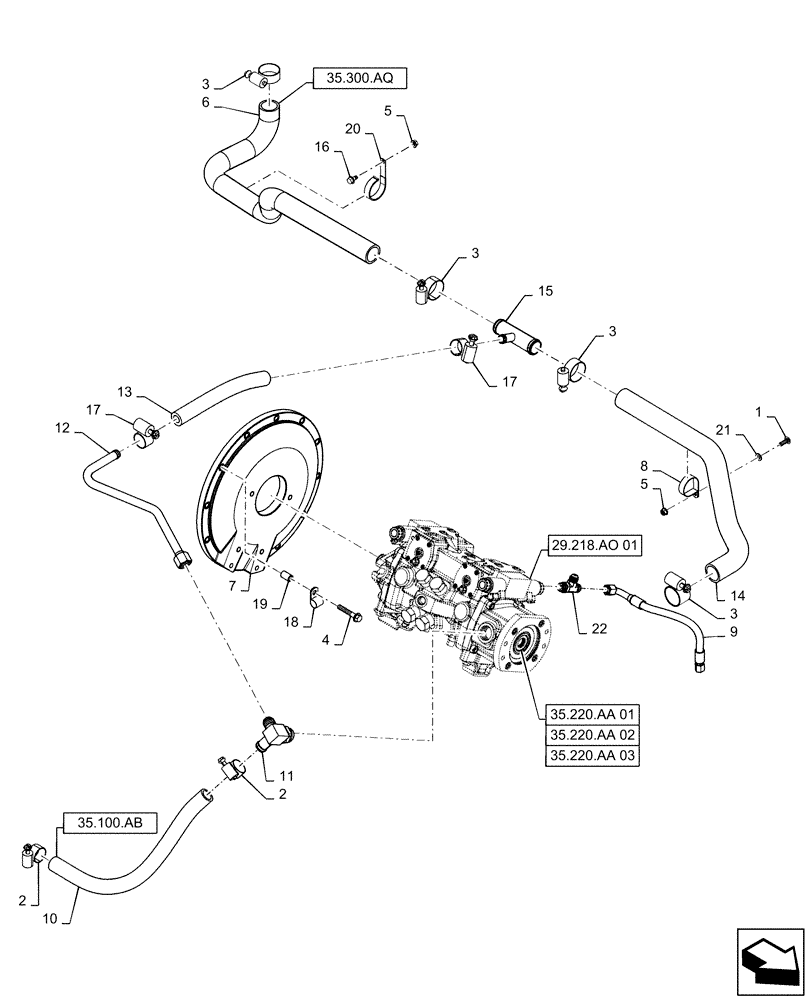

Схема запчастей Case SV300 - (29.204.AB[03]) - HYDROSTATIC PUMP, SUPPLY LINES, EH CONTROLS (SR220-SV300) (29) - HYDROSTATIC DRIVE
20
35.220.aa 03
35.220.aa 01
3
9
2
3
35.220.aa 02
35.100.ab
4
3
14
17
8
7
2
3
18
5
35.300.aq
10
13
6
16
15
17
21
19
22
1
11
5
29.218.ao 01
12

Артикул

Название

Примечание

Количество

1

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

2

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

3

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

4

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

3шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

6

47612620

HOSE,38.1mm ID

Gear Pump Suction

1шт.

7

47659227

COVER

Flywheel

1шт.

8

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

9

84299737

FLEXIBLE HOSE,9.53mm ID x 377.8mm L, SAE 100R17

EH Brake Charge

1шт.

10

84303515

FLEXIBLE HOSE,25.4mm ID x 560mm L, SAE 100R4

Charge Supply

1шт.

11

84344924

90 ELBOW,1-5/16" - 12 ORB x 1-1/16" - 12 JIC x -16 Hose Barb

1шт.

12

84344932

RIGID TUBE,19.05mm OD

Tandem Supply

1шт.

13

84344942

HOSE,19.05mm OD x 280mm L

Tandem Supply

1шт.

14

84349296

HOSE,38.1mm ID

Gear Pump Suction

1шт.

15

84511713

TEE,-24 Bead x -24 Bead x -12 Bead

1шт.

16

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

17

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

18

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

19

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

20

87313360

CLIP,50.8mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

21

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

22

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

Выбрано товаров: 22
