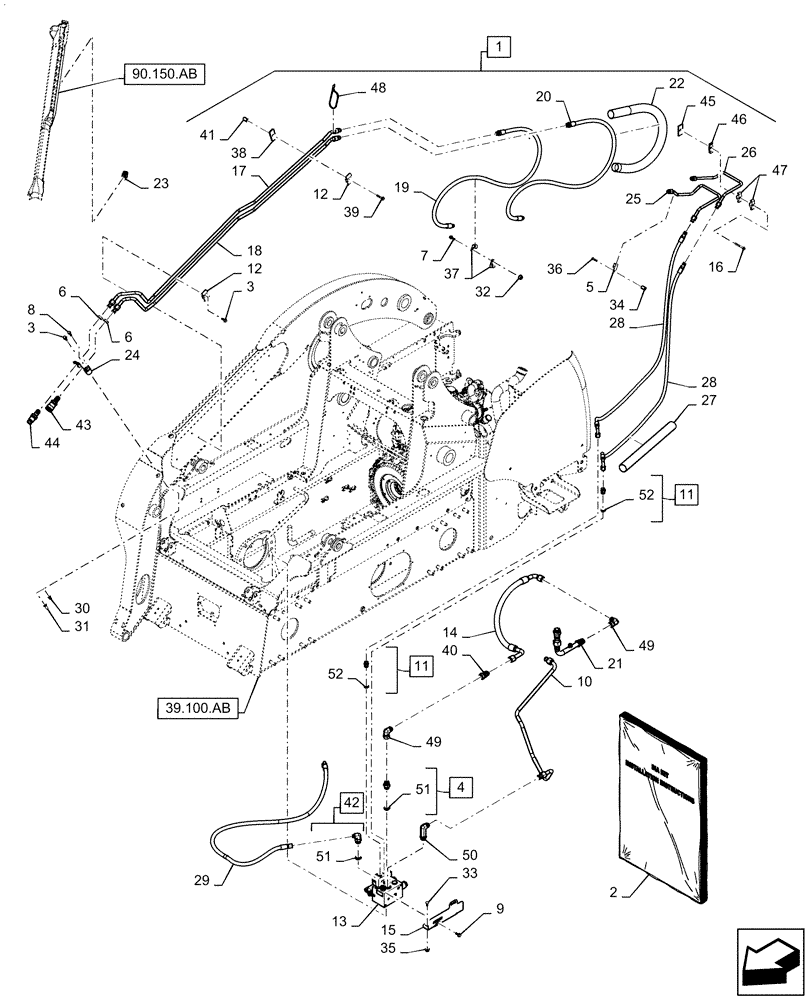

Запчасти Case SV300 (88.100.35[16]) - DIA KIT, 2ND FRONT HYDRAULIC AUXILIARY, VERTICAL BOOMS, (SV250,SV300,TV380) (88) - ACCESSORIES

1

47483681

KIT

2nd Front Hydraulic Aux, Large, Vertical, Incl 2 - 50

1шт.

2

47483690

INSTRUCTION

Aux, Large, Vertical

1шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 51

1шт.

5

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

6

595460

BHD LOCK NUT,7/8" - 14

2шт.

7

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

8

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

10

47482778

TUBE

19.05mm OD, 2nd Aux Control

1шт.

11

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 52

2шт.

12

84252828

CLAMP,65.2mm L

65.2mm L, Butterfly Tube

3шт.

13

84292198

VALVE

EH Secondary Aux

1шт.

14

84321362

HOSE ASSY.

750mm L, 2nd Aux Supply

1шт.

15

84322489

SUPPORT

2nd Aux Valve

1шт.

16

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

1шт.

17

84330199

RIGID TUBE

15.9mm OD, Assy, 2nd Aux Arm, A

1шт.

18

84330201

RIGID TUBE

15.9mm OD, Assy, 2nd Aux Arm, B

1шт.

19

84330252

HOSE ASSY.,12.7mm ID x 1929mm L, SAE 100R17

2nd Aux, A

1шт.

20

84330253

HOSE ASSY.,12.7mm ID x 1879mm L, SAE 100R17

2nd Aux, B

1шт.

21

84332288

RIGID TUBE

25.4mm OD, 2nd Aux Valve, Return

1шт.

22

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Hose

1шт.

23

84392527

SWITCH

Rocker, Aux Electrical

1шт.

24

84474235

BRACKET

Aux Coupler

1шт.

25

84474270

HYD TUBE

12.7mm OD, Assy, 2nd Aux, A

1шт.

26

84474272

HYD TUBE

12.7mm OD, Assy, 2nd Aux, B

1шт.

27

84474383

HOSE PROTECTION,46mm ID x 1900mm L

Guard

1шт.

28

84474384

HOSE ASSY.,9.53mm ID x 2070mm L, SAE 100R17

2nd Aux

2шт.

29

84475145

HOSE ASSY.,12.5mm ID x 1778mm L, SAE 100R17

1778mm L, 2nd Aux, Return

1шт.

30

84531322

RIVET,12.7mm OD x 21.5mm L

2шт.

31

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

32

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

33

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

34

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

35

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

36

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

1шт.

37

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

Closed

2шт.

38

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

82mm L

1шт.

39

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

1шт.

40

87058492

HYD CONNECTOR,1-1/16" - 12 JIC x 1-1/16" - 12 Fem Sw

1шт.

41

87303203

SPACER,X-Pipe, 10.74mm ID x 17.15mm OD x 15.01 L

1шт.

42

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 51

1шт.

43

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

44

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

45

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

1шт.

46

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube Cap

1шт.

47

D120679

CLAMP,Tube, 1/2"

2шт.

48

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

1шт.

49

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

50

84569

ELBOW,90 Degree, 1-1/16" - 12, 37 Degree x 1-1/16" - 12, LG

2шт.

51

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

52

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
