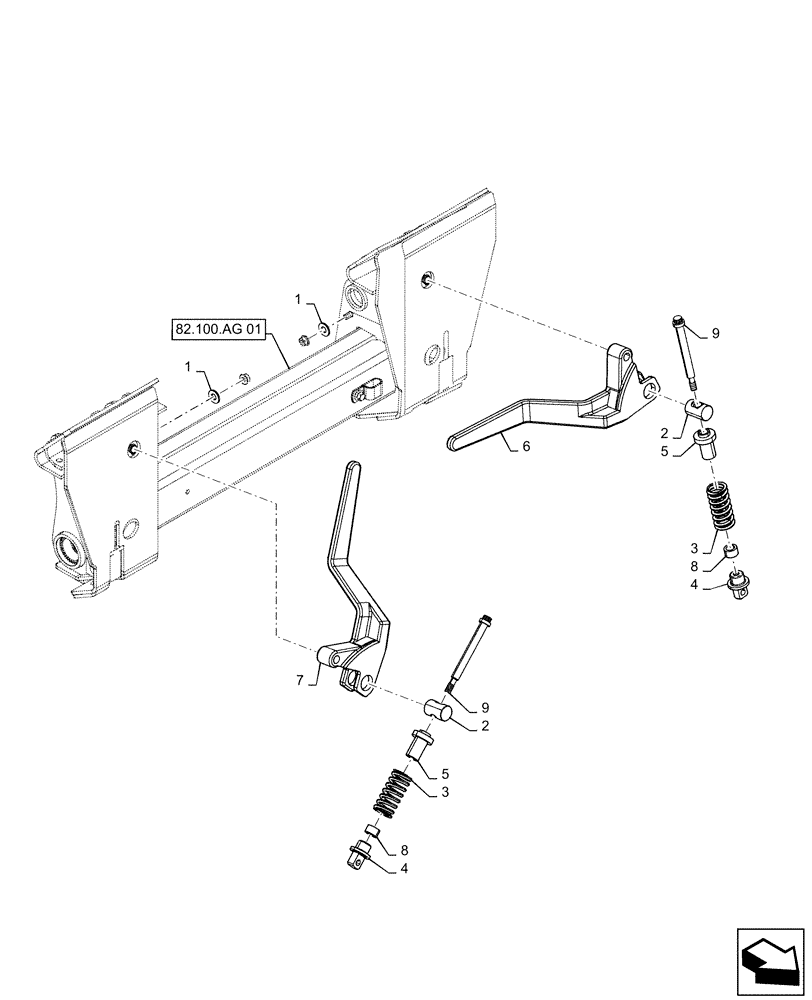

Запчасти Case SV300 (82.300.AC[02]) - MANUAL COUPLER (SR250, SV300) AFTER JUL 31, 2013 (82) - FRONT LOADER & BUCKET

1

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

2

9829733

PIN,25.4mm OD x 39mm L

2шт.

3

84218843

COMPRESSION SPRING,36.6mm OD x 101.6mm L

2шт.

4

87579303

PIN,34.92mm OD x 43.6mm L

2шт.

5

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

6

86633195

HANDLE

LH

1шт.

7

86633196

HANDLE

RH

1шт.

8

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

2шт.

9

87533223

12 PT SCREW,3/8" - 16 x 5", Gr 8

2шт.
