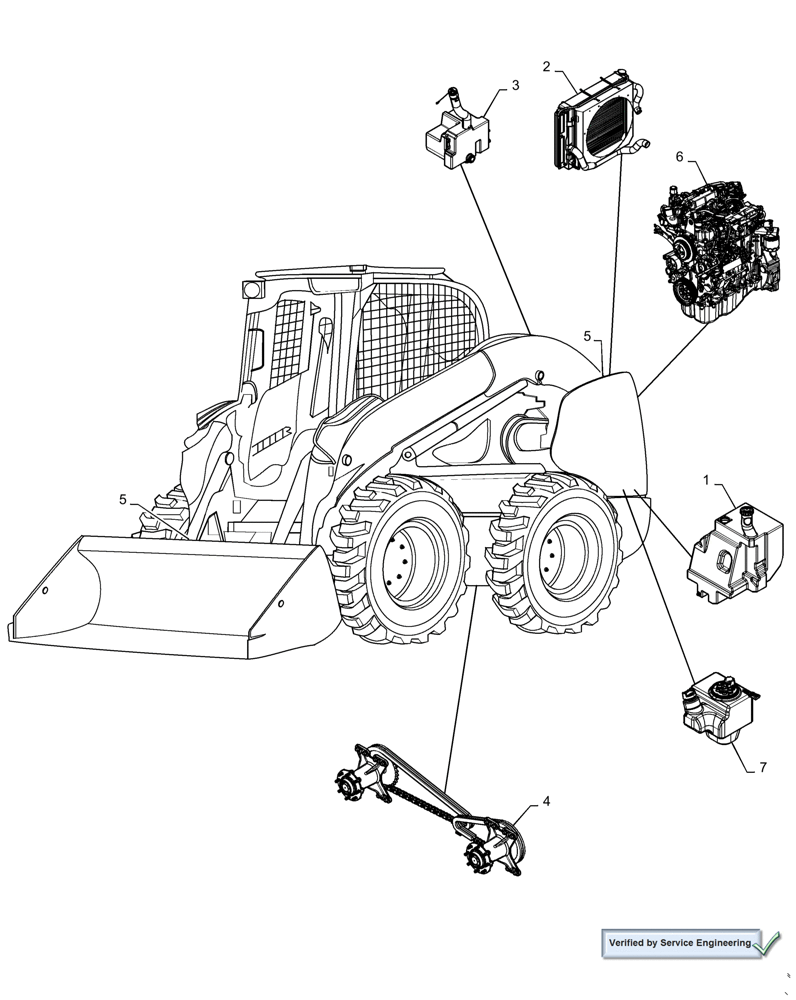

Запчасти Case SV300 (05.100.03[02]) - CAPACITIES (05) - SERVICE & MAINTENANCE

1

Fuel Tank

1шт.

*

Capacity: 25.5 Gal/95.5 L

1шт.

*

Recommended: #2 Diesel

1шт.

2

Cooling System

1шт.

*

Capacity: 5.0 Gal/19.0 L

1шт.

*

Recommended: 50 % distilled water and 50 % ethylene glycol

1шт.

3

Hydraulic System

1шт.

*

System Capacity: 12.0 Gal/45.4 L

1шт.

*

Reservoir Capacity: 6.0 Gal/22.7 L

1шт.

*

Recommended: 10W-30 Engine Oil

1шт.

4

Chain Compartments

1шт.

*

Capacity: 23.5 Qt/22.2 L, Each Side

1шт.

*

Recommended: 10W-30 Engine Oil

1шт.

5

Grease Fittings

1шт.

*

Recommended: Molydisulfide grease

1шт.

6

Engine Crank Case Oil

1шт.

*

Capacity W/ Filter Change: 9.0 Qt/ 8.5L

1шт.

*

Recommended: 10W-30 Engine Oil

1шт.

7

N/A

1шт.

8

Air Conditioning

1шт.

*

Capacity: 3.3 lbs/1.5 kg

1шт.

*

Recommended: R134a Refrigerant

1шт.
